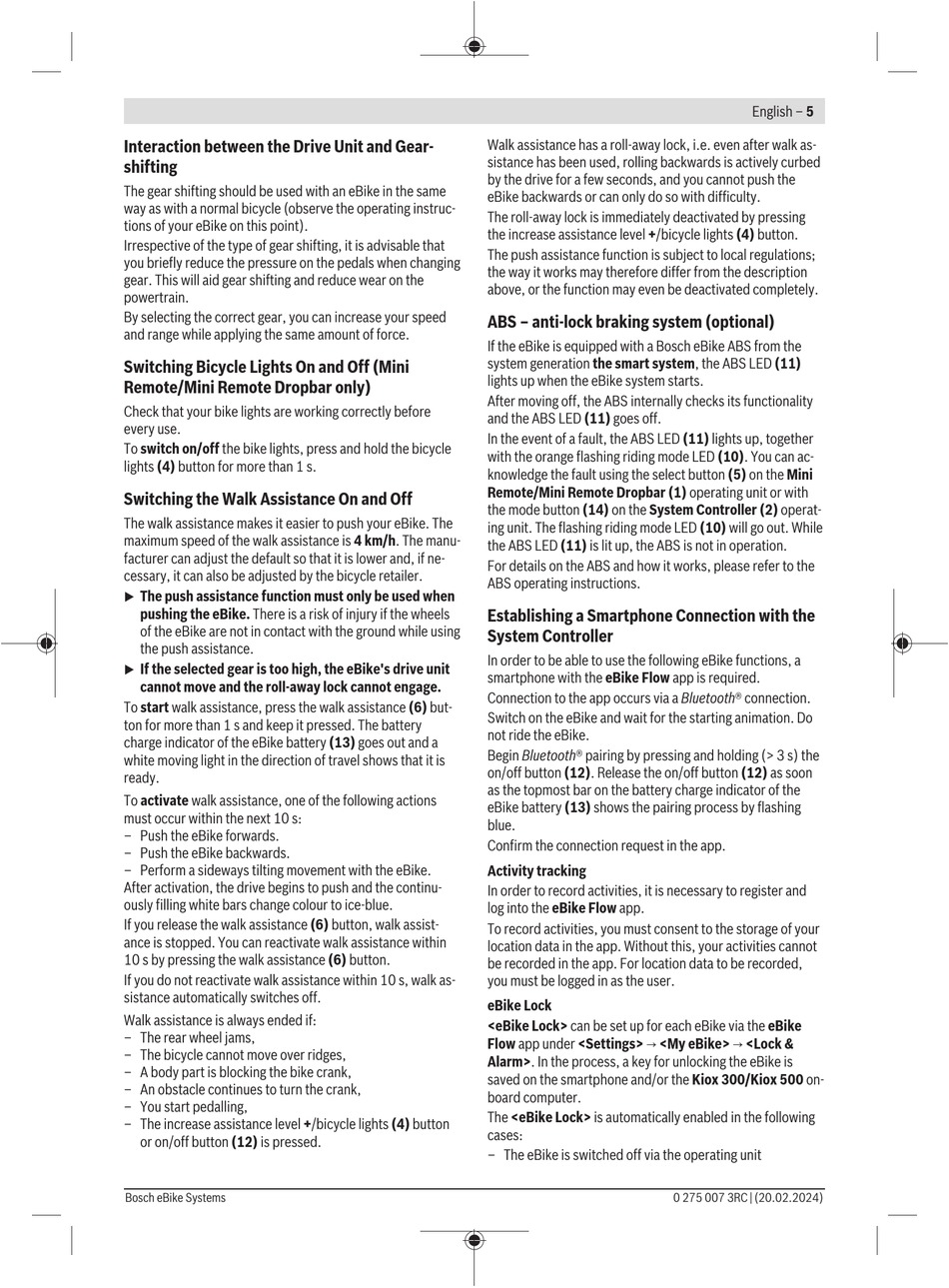

Interaction between the Drive Unit and Gear-
shifting
The gear shifting should be used with an eBike in the same
way as with a normal bicycle (observe the operating instruc-
tions of your eBike on this point).
Irrespective of the type of gear shifting, it is advisable that
you briefly reduce the pressure on the pedals when changing
gear. This will aid gear shifting and reduce wear on the
powertrain.
By selecting the correct gear, you can increase your speed
and range while applying the same amount of force.
Switching Bicycle Lights On and Off (Mini
Remote/Mini Remote Dropbar only)
Check that your bike lights are working correctly before
every use.
To switch on/off the bike lights, press and hold the bicycle
lights (4) button for more than 1 s.
Switching the Walk Assistance On and Off
The walk assistance makes it easier to push your eBike. The
maximum speed of the walk assistance is 4 km/h. The manu-
facturer can adjust the default so that it is lower and, if ne-
cessary, it can also be adjusted by the bicycle retailer.
The push assistance function must only be used when
u
pushing the eBike. There is a risk of injury if the wheels
of the eBike are not in contact with the ground while using
the push assistance.
If the selected gear is too high, the eBike's drive unit
u
cannot move and the roll-away lock cannot engage.
To start walk assistance, press the walk assistance (6) but-
ton for more than 1 s and keep it pressed. The battery
charge indicator of the eBike battery (13) goes out and a
white moving light in the direction of travel shows that it is
ready.
To activate walk assistance, one of the following actions
must occur within the next 10 s:
– Push the eBike forwards.
– Push the eBike backwards.
– Perform a sideways tilting movement with the eBike.
After activation, the drive begins to push and the continu-
ously filling white bars change colour to ice-blue.
If you release the walk assistance (6) button, walk assist-
ance is stopped. You can reactivate walk assistance within
10 s by pressing the walk assistance (6) button.
If you do not reactivate walk assistance within 10 s, walk as-
sistance automatically switches off.
Walk assistance is always ended if:
– The rear wheel jams,
– The bicycle cannot move over ridges,
– A body part is blocking the bike crank,
– An obstacle continues to turn the crank,
– You start pedalling,
– The increase assistance level +/bicycle lights (4) button
or on/off button (12) is pressed.
Bosch eBike Systems
Walk assistance has a roll-away lock, i.e. even after walk as-
sistance has been used, rolling backwards is actively curbed
by the drive for a few seconds, and you cannot push the
eBike backwards or can only do so with difficulty.
The roll-away lock is immediately deactivated by pressing
the increase assistance level +/bicycle lights (4) button.
The push assistance function is subject to local regulations;
the way it works may therefore differ from the description
above, or the function may even be deactivated completely.
ABS – anti-lock braking system (optional)
If the eBike is equipped with a Bosch eBike ABS from the
system generation the smart system, the ABS LED (11)
lights up when the eBike system starts.
After moving off, the ABS internally checks its functionality
and the ABS LED (11) goes off.
In the event of a fault, the ABS LED (11) lights up, together
with the orange flashing riding mode LED (10). You can ac-
knowledge the fault using the select button (5) on the Mini
Remote/Mini Remote Dropbar (1) operating unit or with
the mode button (14) on the System Controller (2) operat-
ing unit. The flashing riding mode LED (10) will go out. While
the ABS LED (11) is lit up, the ABS is not in operation.
For details on the ABS and how it works, please refer to the
ABS operating instructions.
Establishing a Smartphone Connection with the
System Controller
In order to be able to use the following eBike functions, a
smartphone with the eBike Flow app is required.
Connection to the app occurs via a Bluetooth® connection.
Switch on the eBike and wait for the starting animation. Do
not ride the eBike.
Begin Bluetooth® pairing by pressing and holding (> 3 s) the
on/off button (12). Release the on/off button (12) as soon
as the topmost bar on the battery charge indicator of the
eBike battery (13) shows the pairing process by flashing
blue.
Confirm the connection request in the app.
Activity tracking
In order to record activities, it is necessary to register and
log into the eBike Flow app.
To record activities, you must consent to the storage of your
location data in the app. Without this, your activities cannot
be recorded in the app. For location data to be recorded,
you must be logged in as the user.
eBike Lock
<eBike Lock> can be set up for each eBike via the eBike
Flow app under <Settings> → <My eBike> → <Lock &
Alarm>. In the process, a key for unlocking the eBike is
saved on the smartphone and/or the Kiox 300/Kiox 500 on-
board computer.
The <eBike Lock> is automatically enabled in the following
cases:
– The eBike is switched off via the operating unit
English – 5
