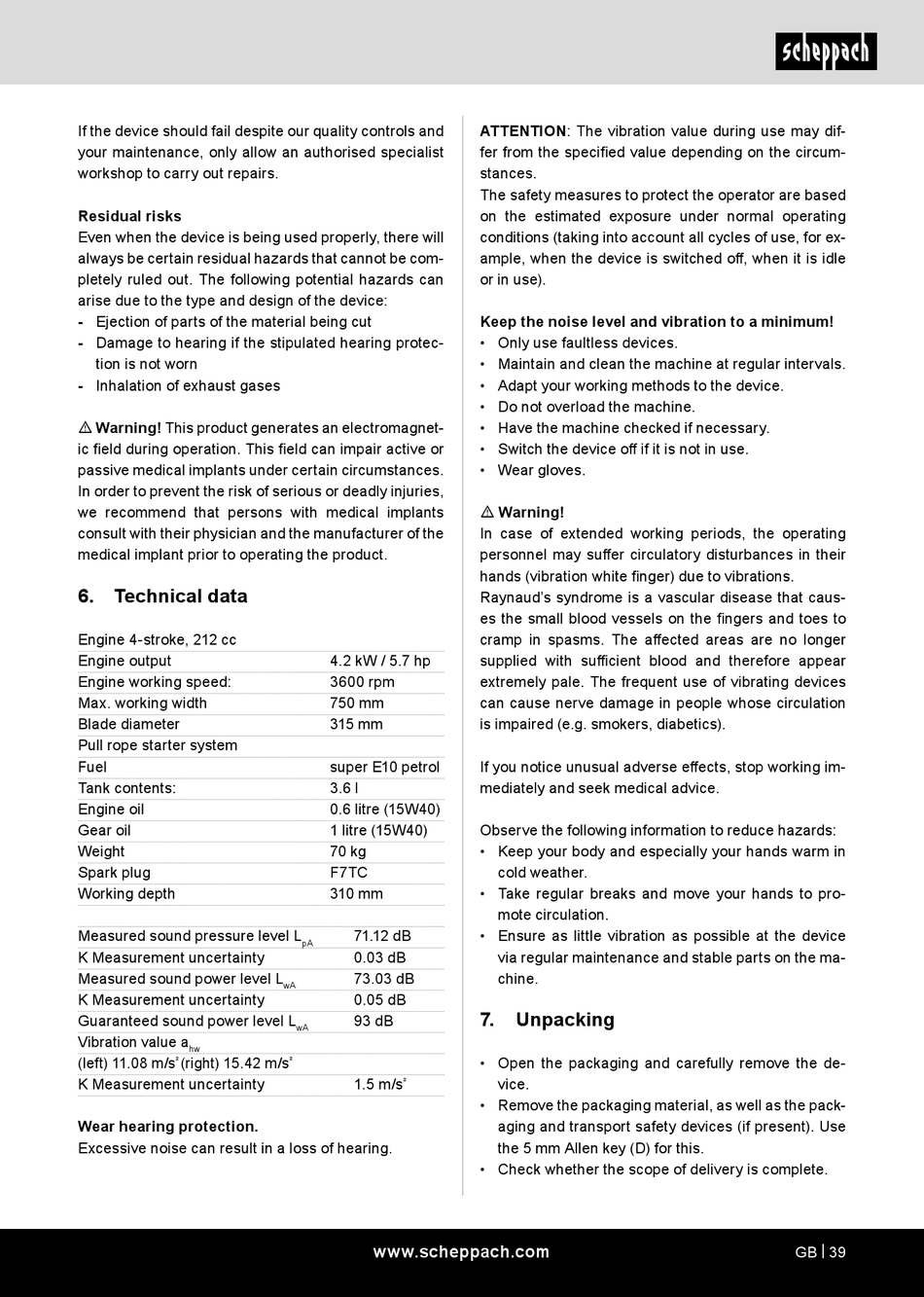

Scheppach MTP750 Originalbetriebsanleitung Seite 39

If the device should fail despite our quality controls and
your maintenance, only allow an authorised specialist
workshop to carry out repairs.
Residual risks
Even when the device is being used properly, there will
always be certain residual hazards that cannot be com-
pletely ruled out. The following potential hazards can
arise due to the type and design of the device:
- Ejection of parts of the material being cut
- Damage to hearing if the stipulated hearing protec-
tion is not worn
- Inhalation of exhaust gases
m Warning! This product generates an electromagnet-
ic field during operation. This field can impair active or
passive medical implants under certain circumstances.
In order to prevent the risk of serious or deadly injuries,
we recommend that persons with medical implants
consult with their physician and the manufacturer of the
medical implant prior to operating the product.
6. Technical data
Engine 4-stroke, 212 cc
Engine output
Engine working speed:
Max. working width
Blade diameter
Pull rope starter system
Fuel
Tank contents:
Engine oil
Gear oil
Weight
Spark plug
Working depth
Measured sound pressure level L
K Measurement uncertainty
Measured sound power level L
K Measurement uncertainty
Guaranteed sound power level L
Vibration value a
hw
(left) 11.08 m/s (right) 15.42 m/s
²
K Measurement uncertainty
Wear hearing protection.
Excessive noise can result in a loss of hearing.
4.2 kW / 5.7 hp
3600 rpm
750 mm
315 mm
super E10 petrol
3.6 l
0.6 litre (15W40)
1 litre (15W40)
70 kg
F7TC
310 mm
71.12 dB
pA
0.03 dB
73.03 dB
wA
0.05 dB
93 dB
wA
²
1.5 m/s
²
www.scheppach.com
ATTENTION: The vibration value during use may dif-
fer from the specified value depending on the circum-
stances.
The safety measures to protect the operator are based
on the estimated exposure under normal operating
conditions (taking into account all cycles of use, for ex-
ample, when the device is switched off, when it is idle
or in use).
Keep the noise level and vibration to a minimum!
• Only use faultless devices.
• Maintain and clean the machine at regular intervals.
• Adapt your working methods to the device.
• Do not overload the machine.
• Have the machine checked if necessary.
• Switch the device off if it is not in use.
• Wear gloves.
m Warning!
In case of extended working periods, the operating
personnel may suffer circulatory disturbances in their
hands (vibration white finger) due to vibrations.
Raynaud's syndrome is a vascular disease that caus-
es the small blood vessels on the fingers and toes to
cramp in spasms. The affected areas are no longer
supplied with sufficient blood and therefore appear
extremely pale. The frequent use of vibrating devices
can cause nerve damage in people whose circulation
is impaired (e.g. smokers, diabetics).
If you notice unusual adverse effects, stop working im-
mediately and seek medical advice.
Observe the following information to reduce hazards:
• Keep your body and especially your hands warm in
cold weather.
• Take regular breaks and move your hands to pro-
mote circulation.
• Ensure as little vibration as possible at the device
via regular maintenance and stable parts on the ma-
chine.
7. Unpacking
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present). Use
the 5 mm Allen key (D) for this.
• Check whether the scope of delivery is complete.
