CONFIGURATION SCREEN (CONTINUED)
E. Serial Number Configuration
To access the Serial Number screen:
1 .
Press and hold the HOB 30 button and the Vascular Position button at the same time for 25 seconds then release
both buttons . The Bed Configuration - Serial Number screen (Figure 32) will be displayed .

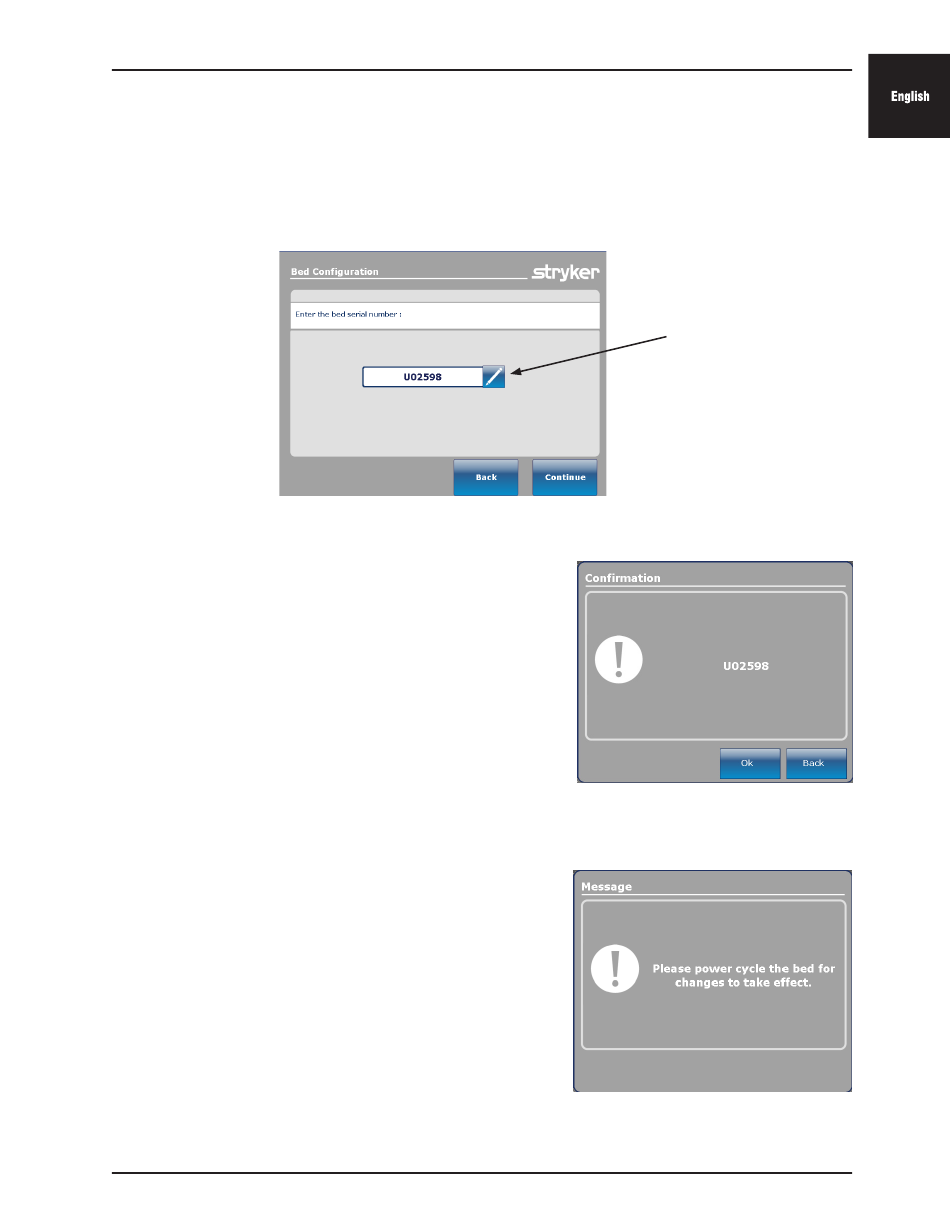

Figure 32: Bed Configuration Serial Number Screen
2 .
Enter or confirm the serial number of the bed (Figure 32) .
a. To enter the serial number:
i .
Press the pencil button located to the right of the serial
number field . The Edit screen will be displayed .
ii .
Enter the serial number of the bed in the serial number
field then press the OK button . You will be returned to
the serial number main screen as shown in Figure 32
iii . Press the Continue button and proceed to step 3 .
b. To confirm the serial number:
i .
Review the serial number displayed in the serial number
field .
ii .
If serial number is correct, press the Back button and
proceed to step 6
iii . If the serial number is incorrect, press the pencil icon
button to open the Edit screen then enter the correct
serial number .
iv . Press the OK button and you will be returned to the
serial number main screen .
v .
Press the Continue button and proceed to step 3 .
3 .
After pressing the Continue button, the serial number will be
saved and the serial number Confirmation screen (Figure 33) will
be displayed . Press the OK button .
4 .
After pressing the OK button a power cycle screen (Figure 34)
will be displayed stating to cycle power on the bed .
5 .
To cycle power on the bed, turn the battery disconnect switch to
OFF (O) then unplug the power cord from the wall outlet . Plug
the power cord back into the wall outlet then turn the battery
disconnect switch back ON (|) .
6 .
Test bed functionality prior to returning the bed into service .
