GATCH ANGLE SENSOR REMOVAL AND REPLACEMENT - (LITTER)

Tools Required:
• Stubby Phillips Screwdriver #2
• ESD System

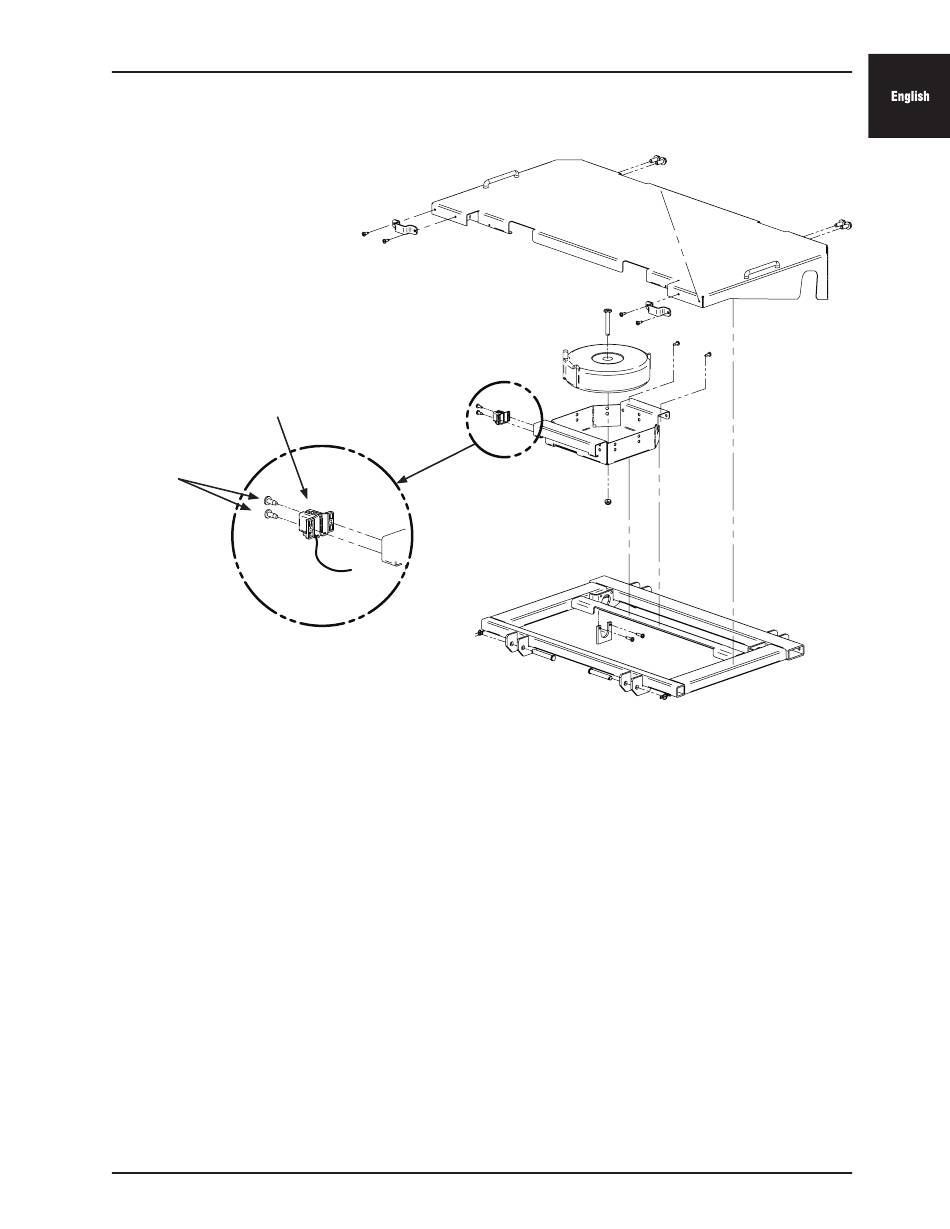

Gatch Angle Sensor
Screws
Procedure:
1 . Plug bed into wall outlet .
2 . Set the brakes using one of the brake control locations or by using the manual brake pedal .
3 . Raise the bed to the full up position .
4 . If gatch motor will run, raise gatch up to approximately 20 degrees . If the gatch motor will not run, then put the bed
into the calibration mode step one as shown on
5 . Working from the bottom left side of the litter, under the gatch section, use a stubby Phillips screwdriver and remove
the two screws securing the gatch angle sensor to the bottom of the gatch frame .
6 . Using an ESD system, properly ground yourself .
7 . Unclip the three clips holding the board cover on .
8 . Unplug the cable from the board .
9 . Reverse the steps to install new gatch angle sensor .
Note: Do not over tighten the two screws.
10 . Recalibrate the bed (refer to Bed Calibration procedures on
11 . Test all bed functionality prior to putting the bed back into service .
www.stryker.com
Service Information
page 1-17 .
page
2151-109-006 REV A
1-17) .
