FOWLER ACTUATOR REMOVAL AND REPLACEMENT - (LITTER)

Tools Required:
• Diagonal Pliers
• Regular Screwdriver
• Phillips Screwdriver #2
• 3/8" Combination Wrench
• Needle-nose pliers
Procedure:
1 . Plug bed into wall outlet .
2 . Raise bed to the full up position .
3 . Raise the head end siderails to the full up position and set the brakes using one of the brake control locations or
by using the manual brake pedal .
4 . Working from the right side of the bed, step on the CPR pedal to lower the fowler all the way down .
5 . Raise the gatch to the full up position .
6 . Remove the three center base hoods (head, center, foot), then remove the right base hood .
7 . Using Needle-nose pliers, remove the two rue clips from the clevis pins holding the actuator .
8 . Using diagonal pliers, cut the zip ties securing the CPR cable to the actuator and the litter frame . Also cut the zip
ties securing the actuator cable to the wire harness .
9 . Unplug the actuator from the quick connect .
10 . Holding the actuator with one hand remove the clevis pins from the actuator and carefully lower the actuator down .
11 . Using a Phillips screwdriver and a 3/8" combination wrench, remove the CPR cable retaining screw from the right
CPR pedal .
12 . Using a regular screwdriver, loosen the CPR cable retainer on the actuator just enough so it will move .
13 . Slide the gray cable retainer lock towards the CPR cable retainer and unclip the CPR cable from the red actuator
release activator .
14 . Remove actuator .
15 . Reverse these steps to reinstall .

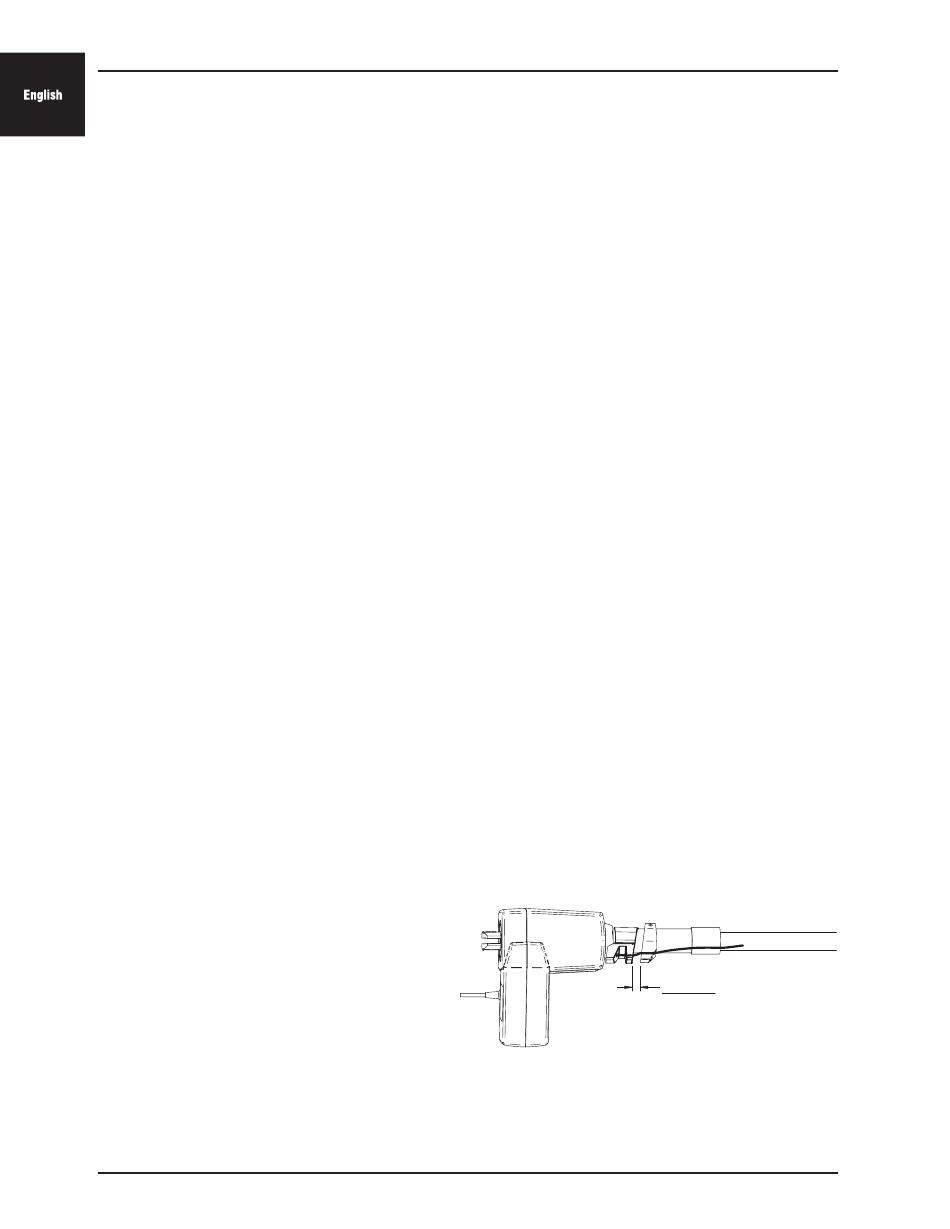

16 . When re-adjusting the cable retainer lock set,
set it to 1 .00 +/- 0 .06 as shown (right) . When
the actuator is back in place, use needle-nose
pliers to reattach the spring to the center of
the clevis pin .
17 . Test all bed functionality prior to putting bed
back into service .
Return To Table of Contents
1-64
Service Information
2151-109-006 REV A
1.00 ± 0.06
