CONFIGURATION SCREEN (CONTINUED)
A. Bed Calibration (Continued)
25 . When step 5 of the calibration procedure has completed, step 6 of the calibration procedure will begin and
Figure 23 will be displayed as shown below .
26 . Place the bed at the highest height by pressing
simultaneously the Trendelenburg (Foot Lift Up) button
and Bed Height Up (Head Lift Up) button (see Figure
24) .
27 . Place the Fowler and Gatch section of the bed at the
highest height by first pressing the Fowler Up button
then the Gatch Up button (See Figure 24) .
28 . Place the foot at the lowest position by pushing the
Foot Down button until limit is met (see Figure 24) .
CAUTION: The Gatch must be raised to the highest
height prior to running the Foot Down or damage
could occur.
Return To Table of Contents
1-26
Maintenance Menu Guide

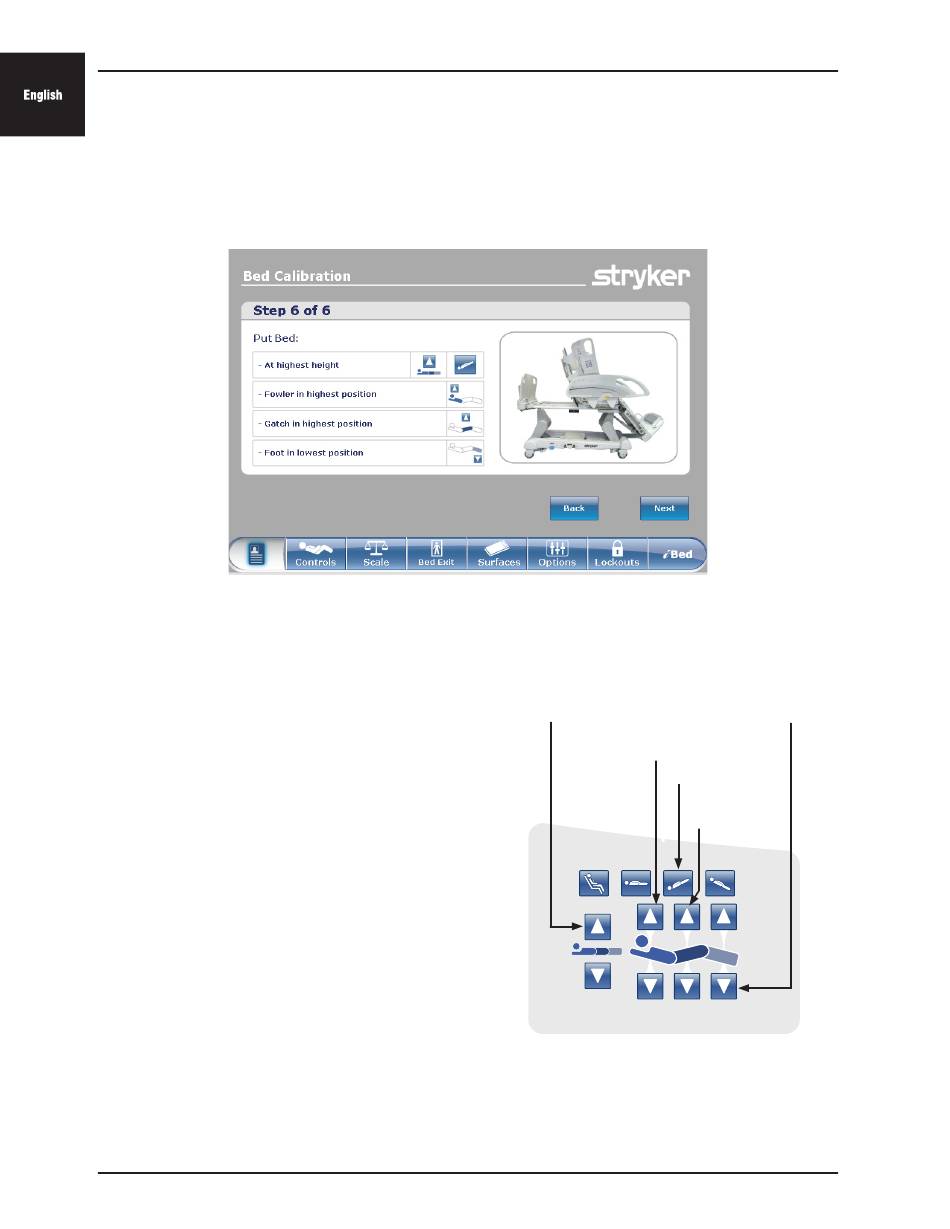

Figure 23: Bed Calibration - Step 6
2151-109-006 REV A
Bed Height Up
(Head Lift Up)
Fowler Up
Trendelenburg
(Foot Lift Up)
Gatch Up
Figure 24: Head Siderail Control Panel -
(Right Side Shown)
Foot Down
