CONFIGURATION SCREEN (CONTINUED)
A. Bed Calibration (Continued)
16 . Level the bed back out to zero degrees by pushing
the Reverse Trendelenburg button until the litter
is level while referencing the inclinometer . Note:
Confirm inclinometer reads zero degrees .
17 . Place the bed at -12 degrees Reverse Trendelenburg by
pressing the Bed Height Up (Head Lift Up) button as
shown in Figure 17 . Verify -12 degrees +/- 0 .1 with the
inclinometer you previously placed on the bottom of the
litter frame in step 9 .
Next
18 . Press the
19 . The "Do Not Touch Bed" screen will appear as
shown in Figure 18 .
www.stryker.com
Maintenance Menu Guide
button when done .
2151-109-006 REV A
Bed Height Up
(Head Lift Up)

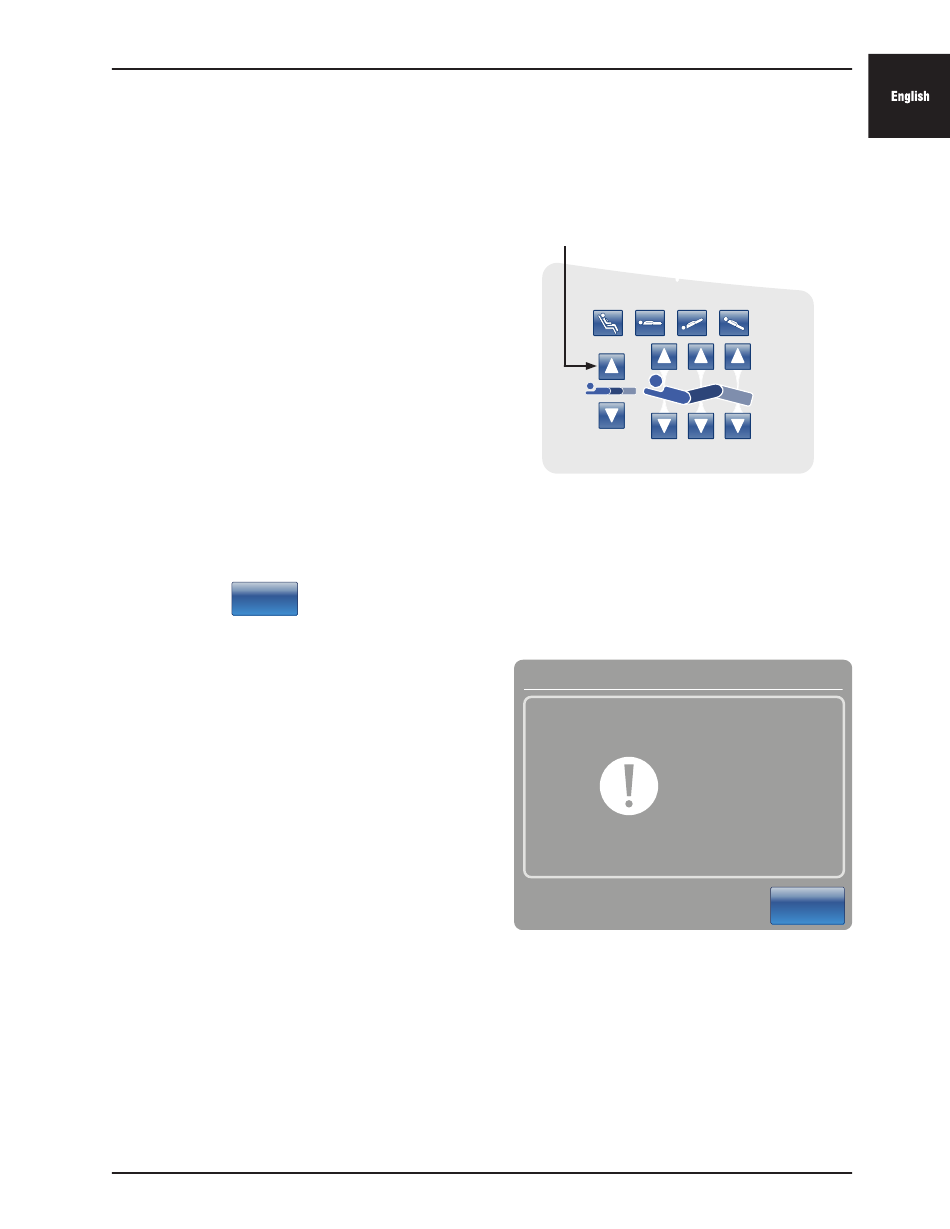

Figure 17: Head Siderail Control Panel -
(Right Side Shown)
Bed Calibration
Do Not
Touch Bed
Figure 18: Do Not Touch Bed Screen
Return To Table of Contents
QDF27-2237
Cancel
