CONFIGURATION SCREEN (CONTINUED)
A. Bed Calibration (Continued)
20 . When step 4 of the calibration procedure has completed, step 5 of the calibration procedure will begin and
Figure 19 will appear on the screen as shown below .
21 . Place the bed at the highest height by pressing
simultaneously the Trendelenburg (Foot Lift Up)
button and Bed Height Up (Head Lift Up) button as
shown in Figure 20 .
Return To Table of Contents
1-24
Maintenance Menu Guide

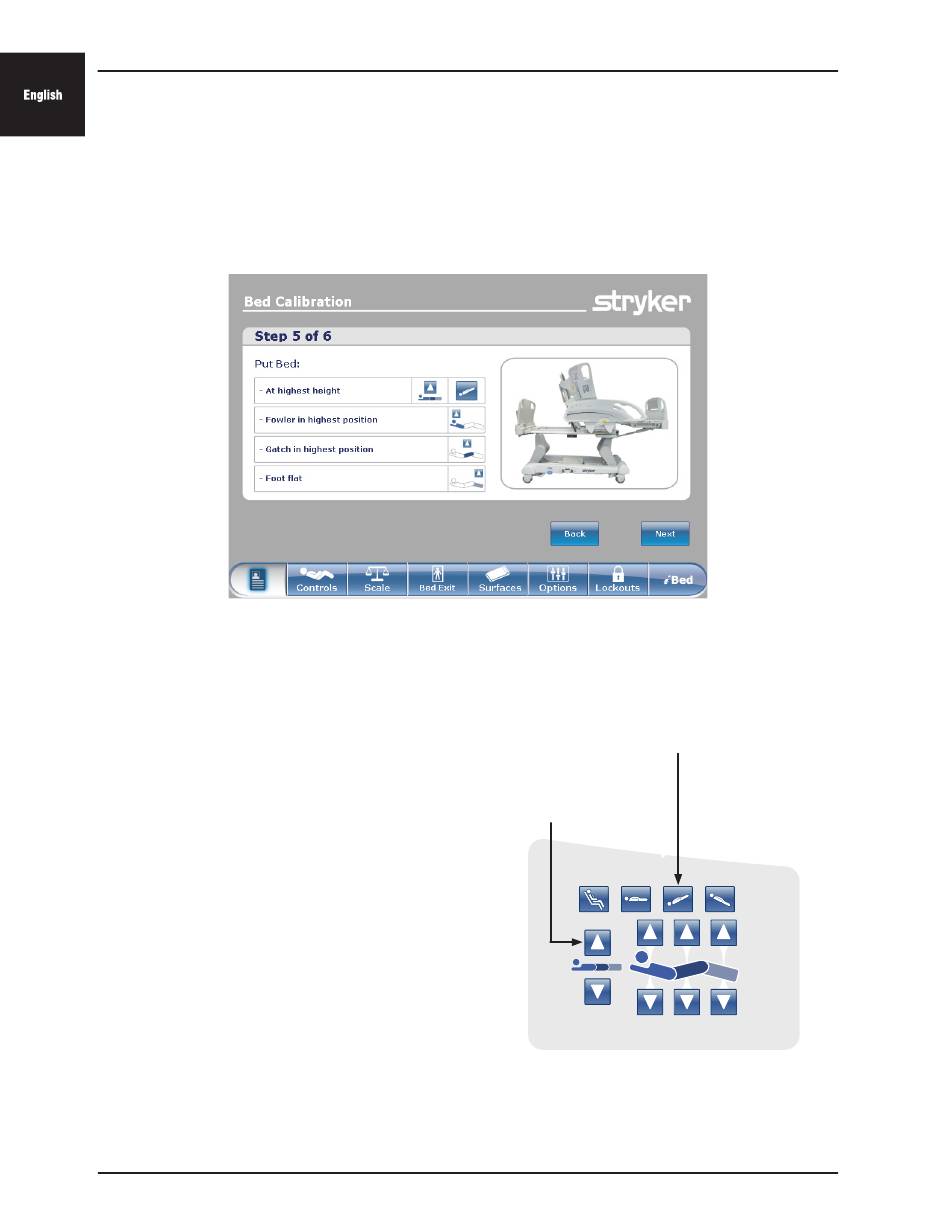

Figure 19: Bed Calibration - Step 5
2151-109-006 REV A
Trendelenburg
(Foot Lift Up)
Bed Height Up
(Head Lift Up)
Figure 20: Head Siderail Control Panel -
(Right Side Shown)
QDF27-2237
