BATTERY REMOVAL AND REPLACEMENT - (FOOTBOARD)

Tools Required:
• Phillips Screwdriver #2
• Stubby Phillips Screwdriver #2
• Small Regular Screwdriver
• Utility Knife
• ESD System
Procedure:
1 . Plug the bed into a wall outlet .
2 . Raise the bed to the full up position and level .
3 . Unplug the bed and turn the battery disconnect switch to the "OFF" (0) position .
4 . Using a small regular screwdriver or a utility knife, remove the rear footboard label .
NOTE: You will need to replace this label: QDF27-2756.
5 . Using a Phillips screwdriver remove the six screws from the top of the control panel which the label was covering .
6 . Raise the display up and using a stubby Phillips screwdriver, remove the three screws on the bottom .
7 . Remove the display housing and unplug the two cables from the function control board and set the display assembly
on a bench to work on .

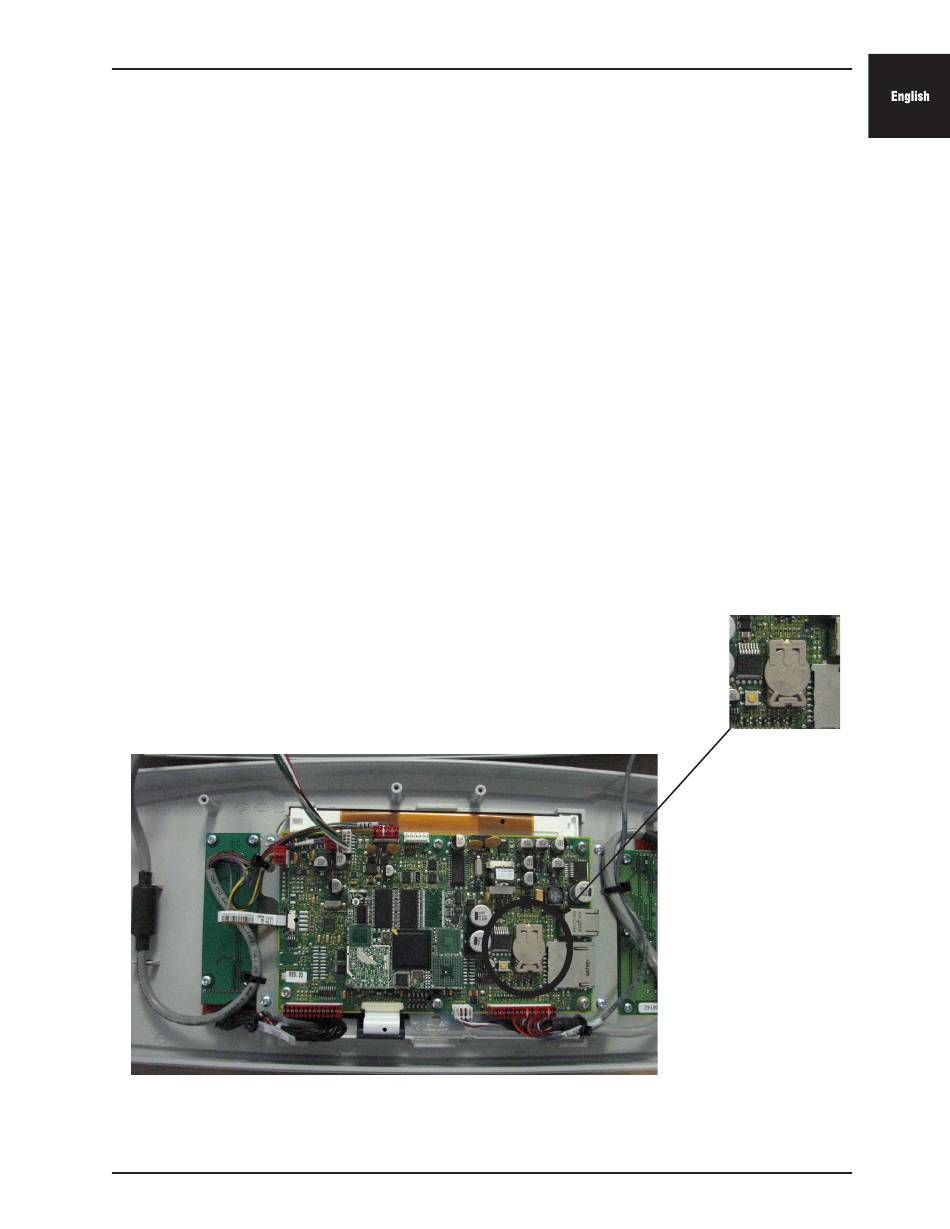

8 . Remove the battery and replace with new battery (see figure below) .
9 . Reverse the above steps to reassemble .
10 . Referencing the operation manual complete the Time / Date Setup procedure .
