BRAKE CONTROL BOARD REMOVAL AND REPLACEMENT - (FOOTBOARD)

Tools Required:
• Phillips Screwdriver #2
• Stubby Phillips Screwdriver #2
• Small Regular Screwdriver
• Utility Knife
• ESD System

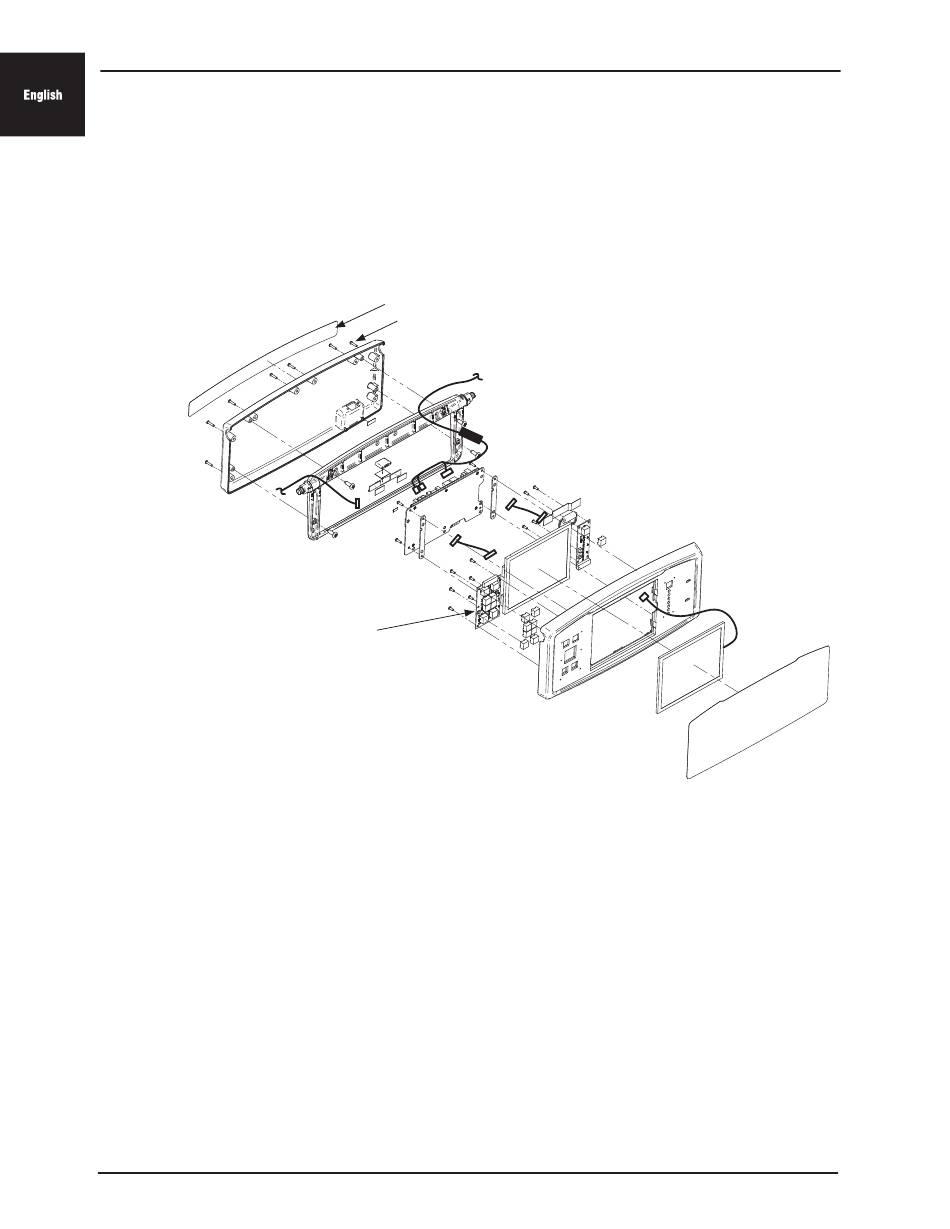

Brake Control Board
Procedure:
1 . Plug the bed into a wall outlet .
2 . Raise the bed to the full up position and level .
3 . Unplug the bed and turn the battery disconnect "OFF" (0) .
4 . Using a small regular screwdriver or a utility knife, remove the rear footboard label .
NOTE: You will need to replace this label: QDF27-2756.
5 . Using a Phillips screwdriver, remove the six screws from the top of the control panel which the label was covering .
6 . Raise the display up and using a stubby Phillips screwdriver, remove the three screws on the bottom .
7 . Remove the display housing and unplug the two cables from the function control board and set the display assembly
on a bench to work on .
8 . Using a Phillips screwdriver, remove the six screws securing the brake control board .
9 . Unplug the cable going to the brake control board .
10 . Reverse the procedures to install the new brake control board .
11 . Test all bed functionality prior to putting the bed back into service .
