The Maintenance Menu is accessed through the Touch Screen and contains additional features of the product . This
menu provides an interface to the user and/or service personnel in order to provide the ability to control and access
maintenance features .

ACCESSING CONFIGURATION SCREEN

WARNING
Please ensure patient is not in the bed prior to starting bed calibration . In calibration mode, the software does not control
the interferences between the mechanical parts of the bed . Mechanical damage could occur without supervision . Only
qualified personnel should perform the calibration .
Note
Verify that the bed is on a level surface which does not have any slopes or inclines prior to entering into the calibration
mode .
1 . Unseat and reseat the footboard and wait until the main control screen is displayed .
2 . Push and hold the Main Menu button located in the upper right corner of the footboard control panel
(see Figure 1 below) . Continue pressing on the Main Menu button while executing steps 3-5 .
3 . Push and hold the Brake button for 5 seconds and then release .
4 . Push the HOB 30 + button once and release .
o
5 . Push the Drive button once and release .
6 . Release the Main Menu button and you will be taken into the Configuration Screen shown in Figure 2 .
Brake
HOB
Drive
Return To Table of Contents
1-16

Maintenance Menu Guide

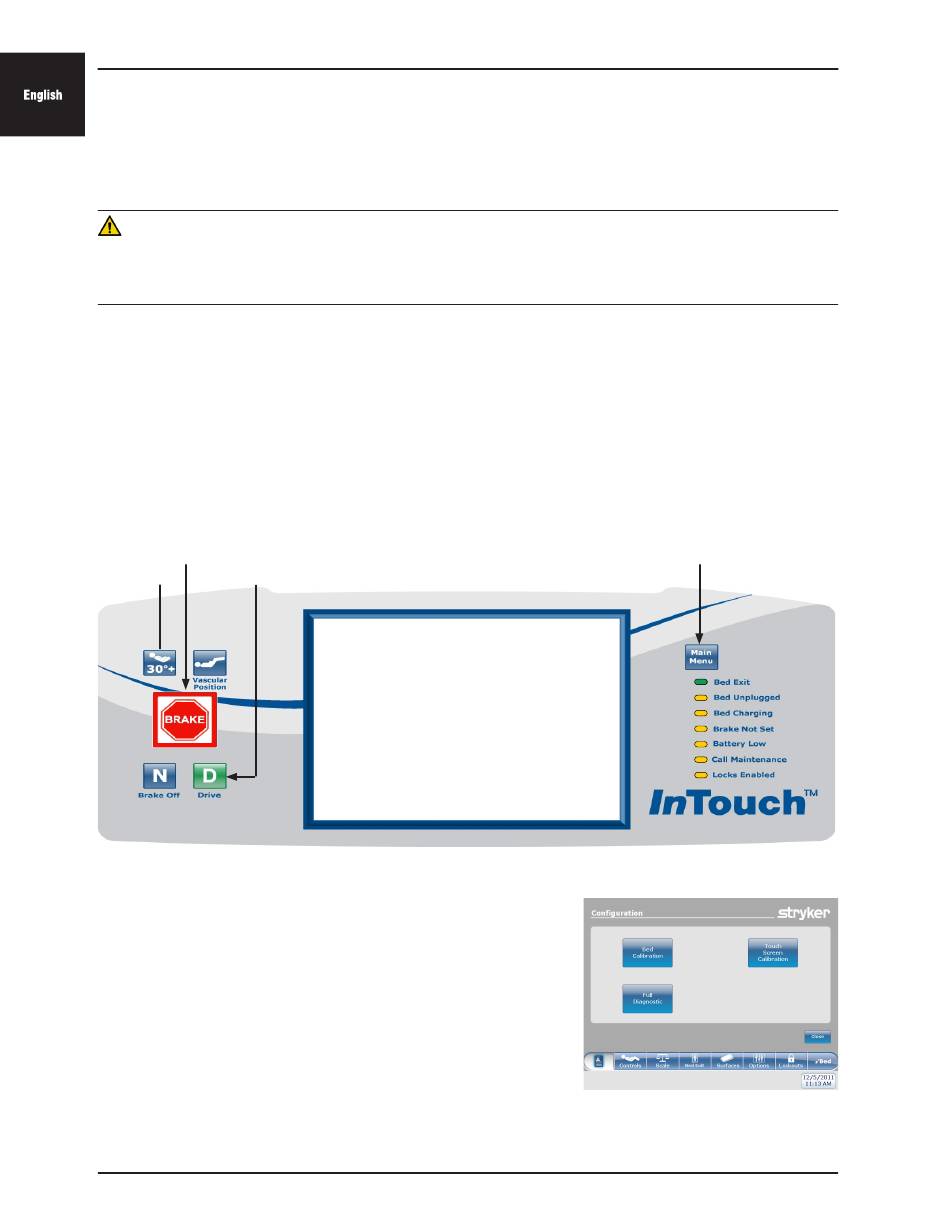

Figure 1: Footboard Control Panel
2151-109-006 REV A
