FOWLER ANGLE SENSOR REMOVAL AND REPLACEMENT - (LITTER)

Tools Required:
• Stubby Phillips Screwdriver #2
• ESD System
Procedure:
1 . Plug bed into wall outlet .
2 . Set the brakes using one of the brake control locations or by using the manual brake pedal .
3 . Raise the bed to the full up position and raise the patient left siderails (head end and foot end) .
4 . If fowler motor will run, raise fowler up to approximately 20 degrees . If the fowler motor will not run, put the bed into
the calibration mode step one as shown on
5 . Working form the left side of the bed, use a stubby Phillips screwdriver and remove the two screws securing the
fowler angle sensor to the bottom of the fowler frame .
6 . Using an ESD system, properly ground yourself .
7 . Unclip the three clips holding the board cover on .
8 . Unplug the cable from the board .
9 . Reverse the steps to install the new fowler angle sensor .
Note: Do not over-tighten the two screws.
10 . Recalibrate the bed (refer to Bed Calibration procedures on
11 . Test all bed functionality prior to putting the bed back into service .
Return To Table of Contents
1-78
Service Information
Electrical Cover
page 1-17 . Run the Fowler up to approximately 20 degrees .
page
2151-109-006 REV A

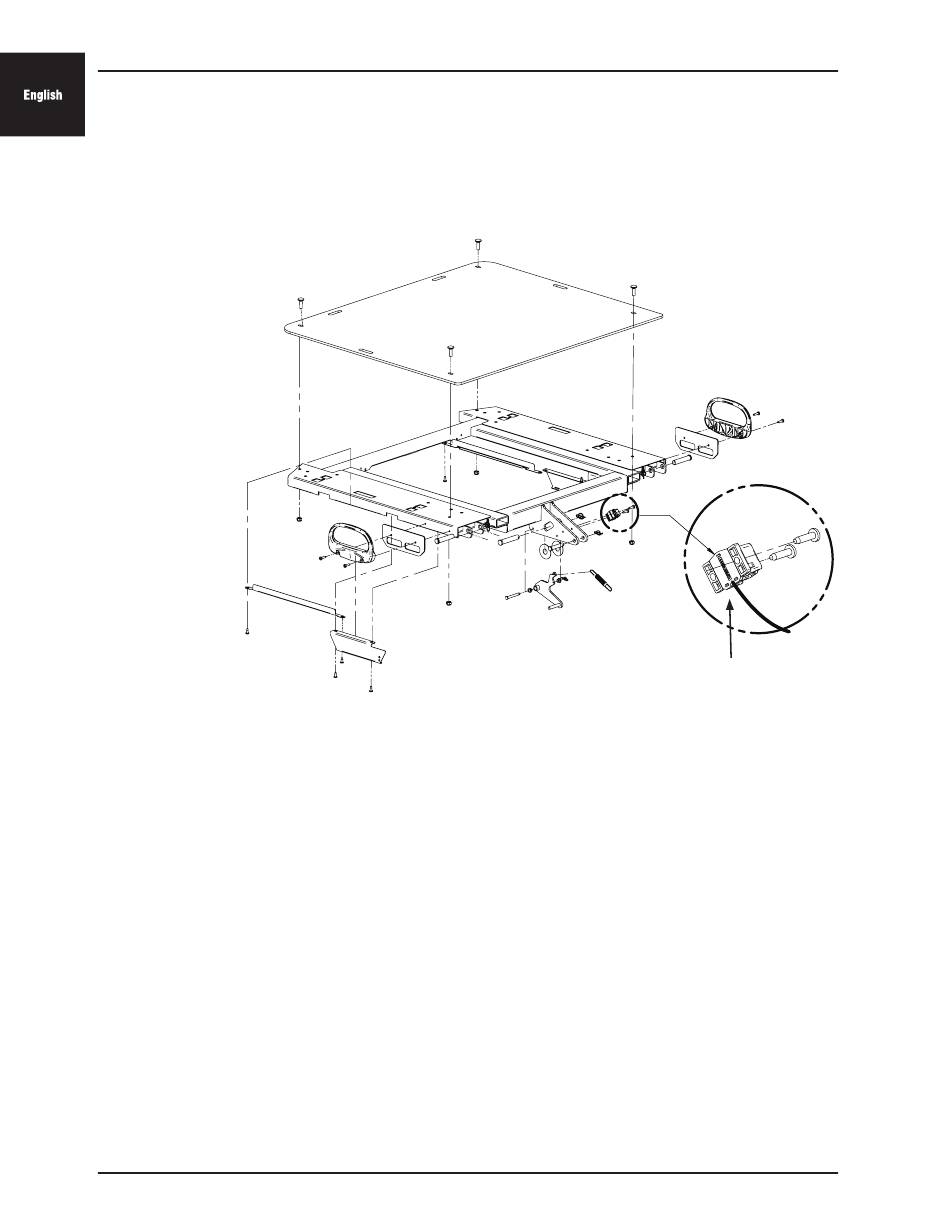

Fowler Angle Sensor
1-17) .
