TREND ANGLE SENSOR REMOVAL AND REPLACEMENT - (LITTER)

Tools Required:
• Phillips Screwdriver #2
• ESD System

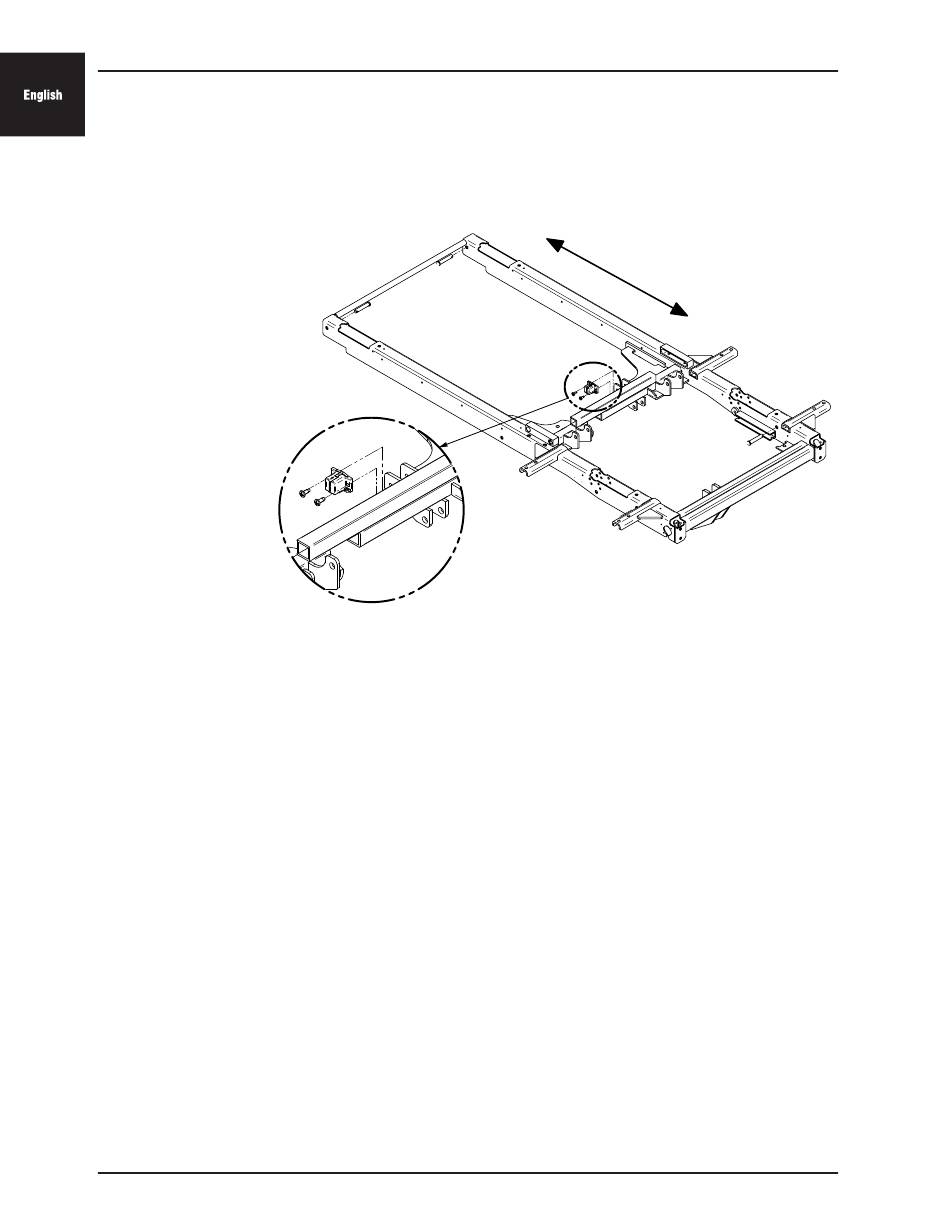

Trend Angle Sensor
Procedure:
1 . Plug the bed into a wall outlet .
2 . Raise the bed to the full up position and raise the patient right siderail .
3 . Working from the patient's right side, use a Phillips screwdriver and remove the two screws securing the trend angle
sensor to the litter frame (refer to Figure above),
4 . Using an ESD system, properly ground yourself .
5 . Unclip the three clips holding the board cover on .
6 . Unplug the cable from the board .
7 . Reverse the steps to install new trend angle sensor .
Note: Do not over-tighten the two screws.
8 . Recalibrate the bed (refer to Bed Calibration procedures on
9 . Test all bed functionality prior to putting the bed back into service .
Return To Table of Contents
1-82
Service Information
Head
page
2151-109-006 REV A
Foot
1-17) .
