HEADWALL COMMUNICATION BOARD REMOVAL AND REPLACEMENT - (LITTER)

Tools Required:
• Phillips Screwdriver #2
• ESD System
Procedure:
1 . Plug the bed into a wall outlet .
2 . Raise the bed to the full up position .
3 . Remove the head board and any accessories located on the head end .

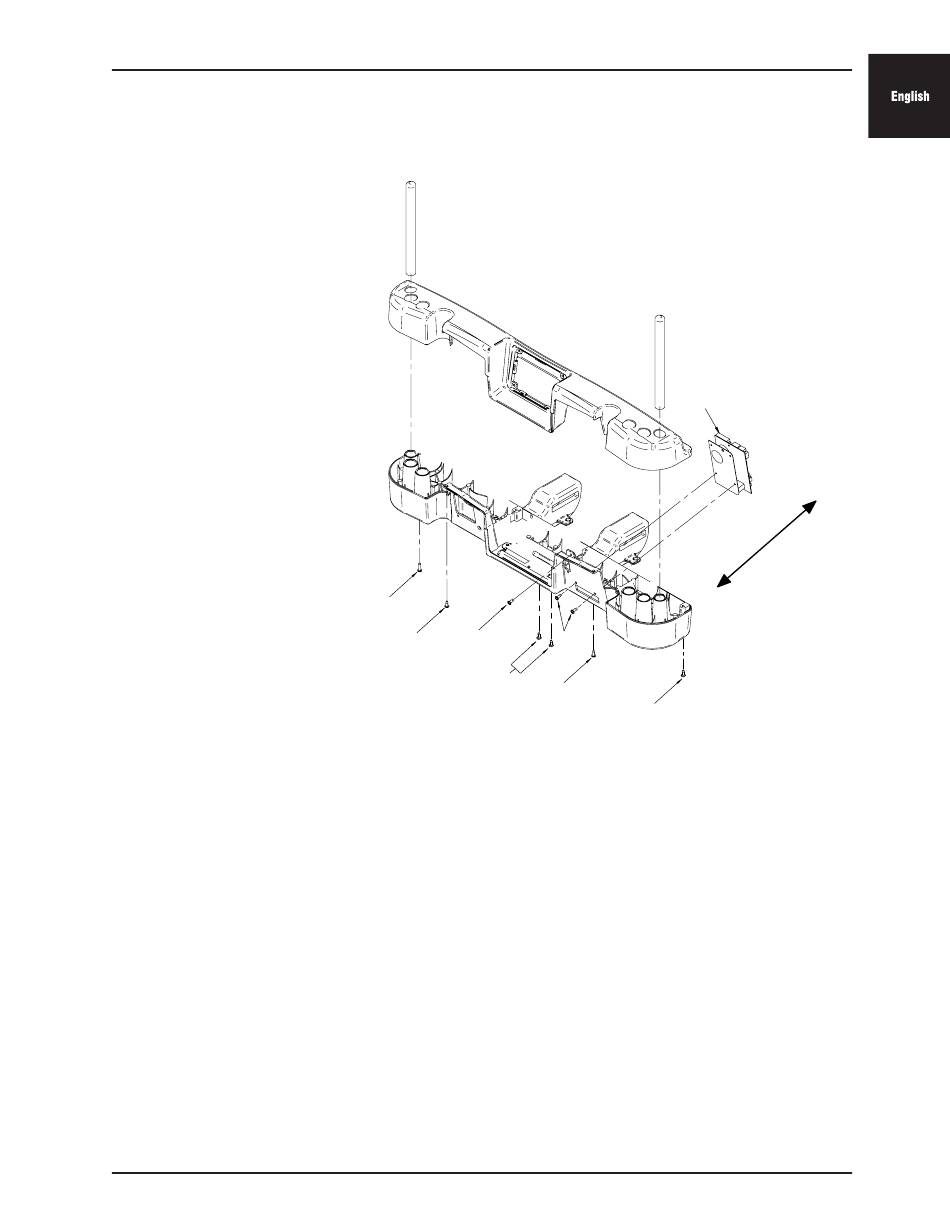

4 . Using a Phillips screwdriver, remove the six screws securing the head frame cover (reference figure above) .
5 . Using a Phillips screwdriver, remove the three screws securing the headwall board to the head frame (reference
figure above) .
6 . Using an ESD system, unplug the seven cables (make note of their location; they are not all labeled) . Compare the
old board and new board and mirror all of the dip-switch settings from the old board to the new board . Verify if any
jumpers need to be moved .
7 . Reverse procedures to install new headwall communication board .
8 . Test all bed functionality prior to putting the bed back into service .
www.stryker.com
Service Information
Screw
Screw
Screw
Screws
Screw
2151-109-006 REV A
Headwall Board
Head
Screws
Screw
Return To Table of Contents
Foot
