CONFIGURATION SCREEN (CONTINUED)
A. Bed Calibration (Continued)
29 . When the calibration procedure is completed, Figure 25 will be displayed as shown below .
30 . Press the Close button to exit the Calibration Procedure Menu .
31 . Level the litter flat using the CPR pedal . Verify all display readings are zero degrees while the bed is at
33" (84 cm) (highest height) . Lower the bed to 16" (41 cm) (lowest height) and verify the display readings
maintain a constant reading of zero degrees with no fluctuations . When the bed reaches it lowest height at
16", verify the display readings are still at zero degrees .
Note: If readings are not all zero, you will need to recalibrate the bed by repeating steps 1-30.
www.stryker.com
Maintenance Menu Guide

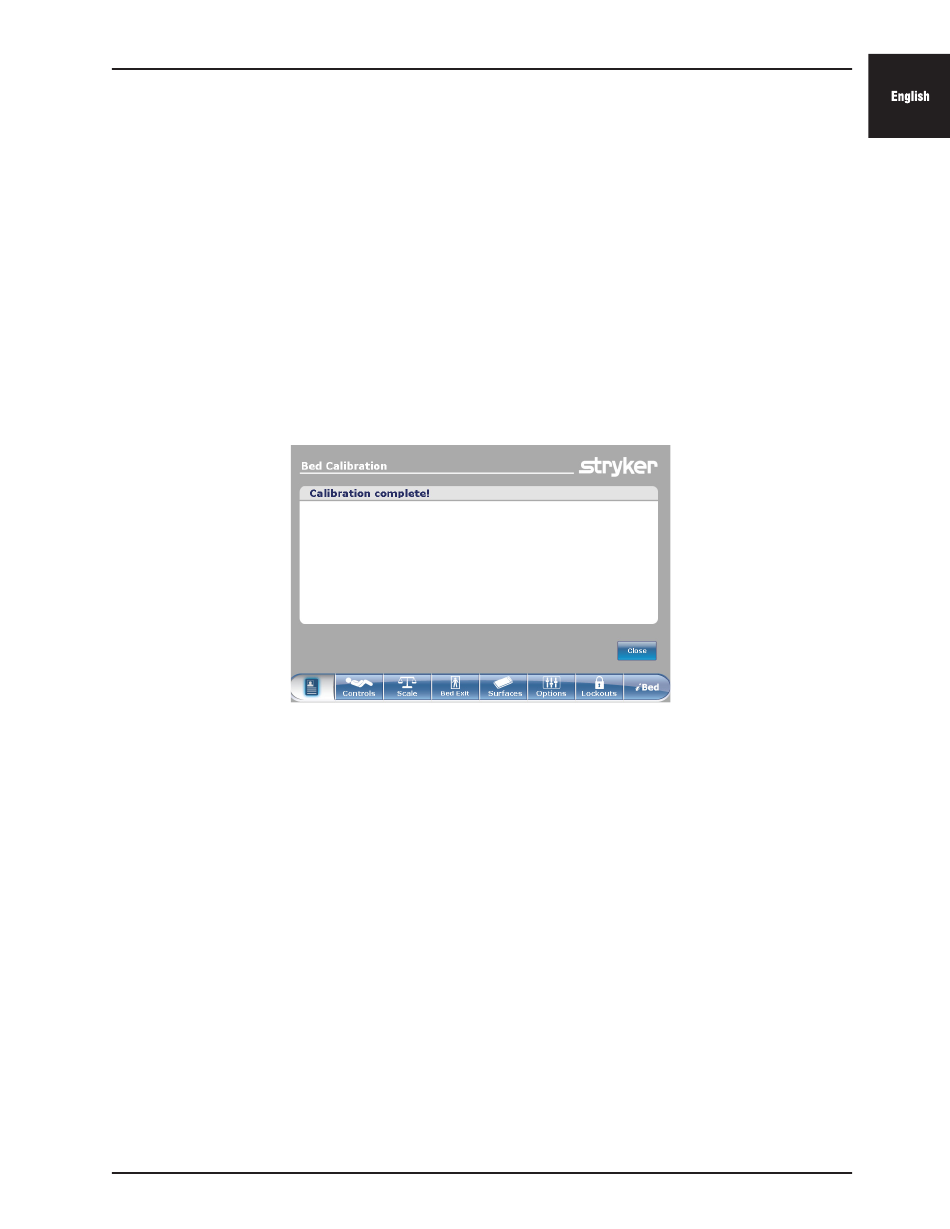

Figure 25: Calibration Complete
2151-109-006 REV A
Return To Table of Contents
1-27
