FOOT ACTUATOR REMOVAL AND REPLACEMENT - (LITTER)

Tools Required:
• Needle-Nose pliers
• Diagonal Pliers
• Phillips Screwdriver #2
• Jack Stand

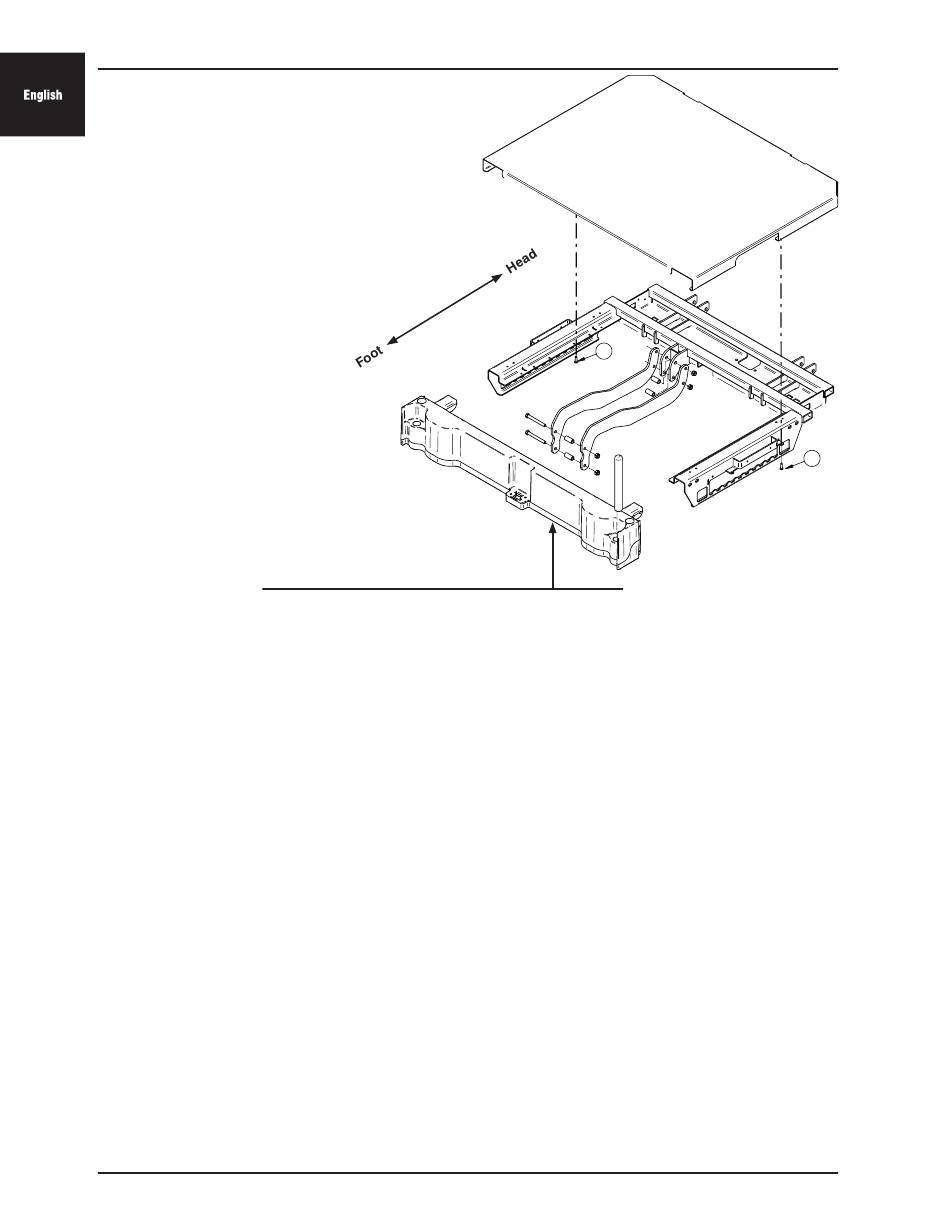

Step #4:
Locate Jack Stand between floor
and underside of Foot Frame .
Floor
Procedure:
1 . Plug bed into wall outlet .
2 . Set the brakes by using one of the brake control locations or the manual brake pedal .
3 . Remove the mattress and set aside .
4 . Using a jack stand, support the foot section by lowering the bed height down enough to take the tension off the
actuator mounting pins (reference drawing above) .
5 . Using diagonal pliers, cut the zip ties securing the actuator cable to the bed .
6 . Remove the mattress assembly or fold back to expose the foot section .
7 . Using a Phillips screwdriver, remove the two screws (reference drawing above, item A and B) securing the
electrical cover from the foot section and remove the cover .
Note: Use caution as the cover is large and heavy.
8 . Unplug the actuator from J1 and feed cable down to actuator .
9 . Using needle-nose pliers, remove the two rue clips from the clevis pins holding the actuator in place .
10 . Holding the actuator with one hand, remove the clevis pins securing the actuator to the bed then remove the actuator .
11 . Reverse these steps to reinstall .
Note: If new motor shaft does not line up with mounting holes, mount the base of the actuator then plug the
actuator in and run it electrically in or out until lined up.
12 . Test all bed functionality prior to putting bed back in service .
Return To Table of Contents
1-66
Service Information
2151-109-006 REV A
Electrical Cover
A
www.stryker.com
B
