BATTERY REMOVAL AND REPLACEMENT - (LITTER)

Tools Required:
• Phillips Screwdriver #2
• 5/16" Nutdriver
• 5/16" Combination Wrench
Batteries
Procedure:
Note
Batteries should always be replaced in pairs .
1 . Plug bed into wall outlet .
2 . Set the brakes using one of the brake control locations or by using the manual brake pedal .
3 . Raise the bed to the full up position .
4 . Remove the mattress assembly or fold back to expose the foot section .

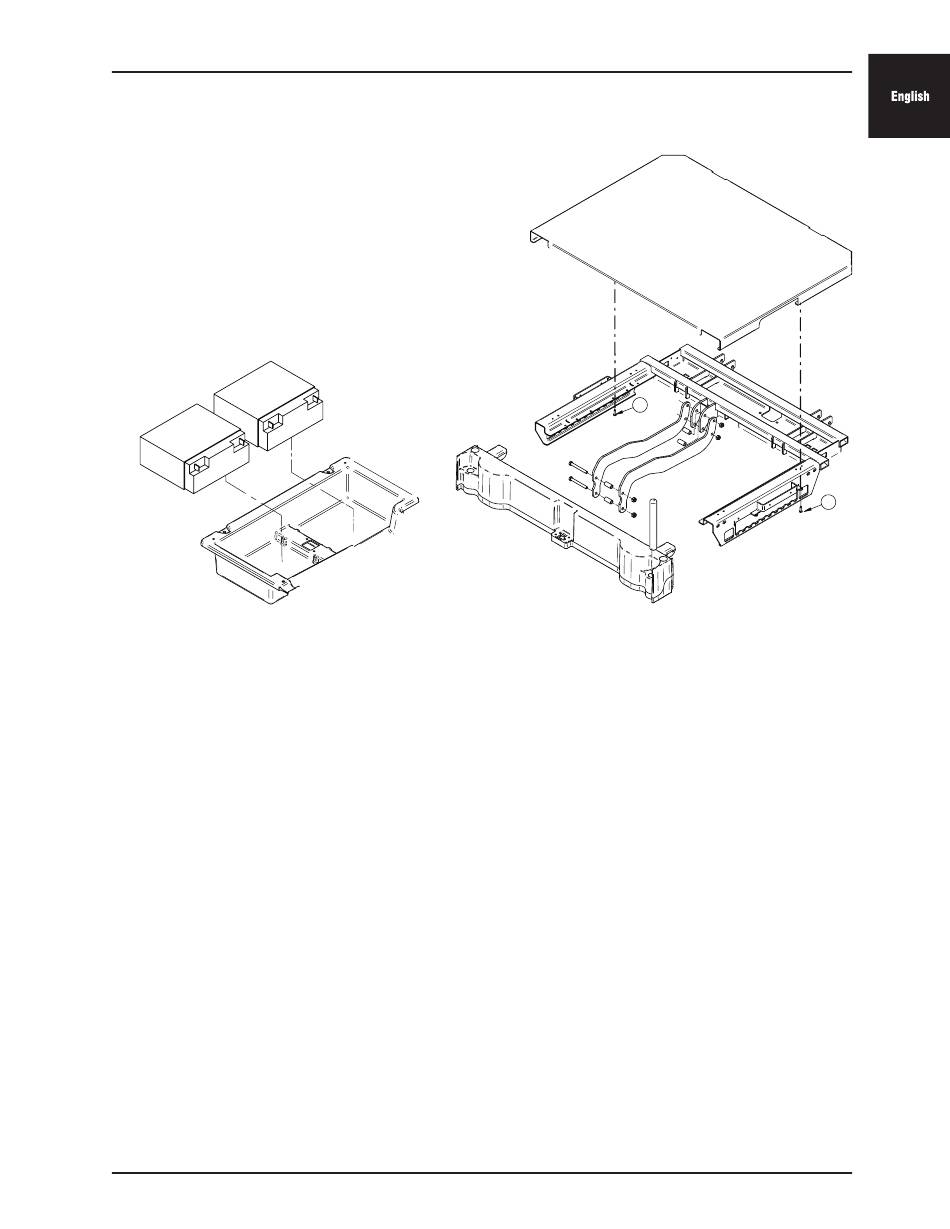

5 . Using a Phillips screwdriver, remove the two screws securing the electrical cover and remove the cover (reference
Figure 1 above, item A and B) .
Note: Use caution as the cover is large and heavy.
6 . Unplug the bed from the wall outlet and turn battery switch "OFF" (0) . The bed should now have no power .
7 . Unplug J12 connector from the CPU/Power board .
8 . Lift up on both batteries and stand them upright (reference Figure 2 above) .
9 . Using a 5/16" nutdriver and a 5/16" combination wrench, unbolt the wires from the battery posts .
10 . Reverse the steps to install new batteries .
Note: New battery information should be facing the right side when installing and upright when installed.
11 . Test all bed functionality while plugged into wall outlet and when unplugged prior to putting back into service .
www.stryker.com
Service Information
Figure 1
Figure 2
2151-109-006 REV A
Electrical Cover
A
Return To Table of Contents
B
1-77
