FOOT ANGLE SENSOR REMOVAL AND REPLACEMENT - (LITTER)

Tools Required:
• Phillips Screwdriver #2
• ESD System
Figure 2
Procedure:
1 . Plug the bed into a wall outlet .
2 . Raise the bed to the full up position and level the litter surface .
3 . Remove or fold back the mattress, exposing the foot section .

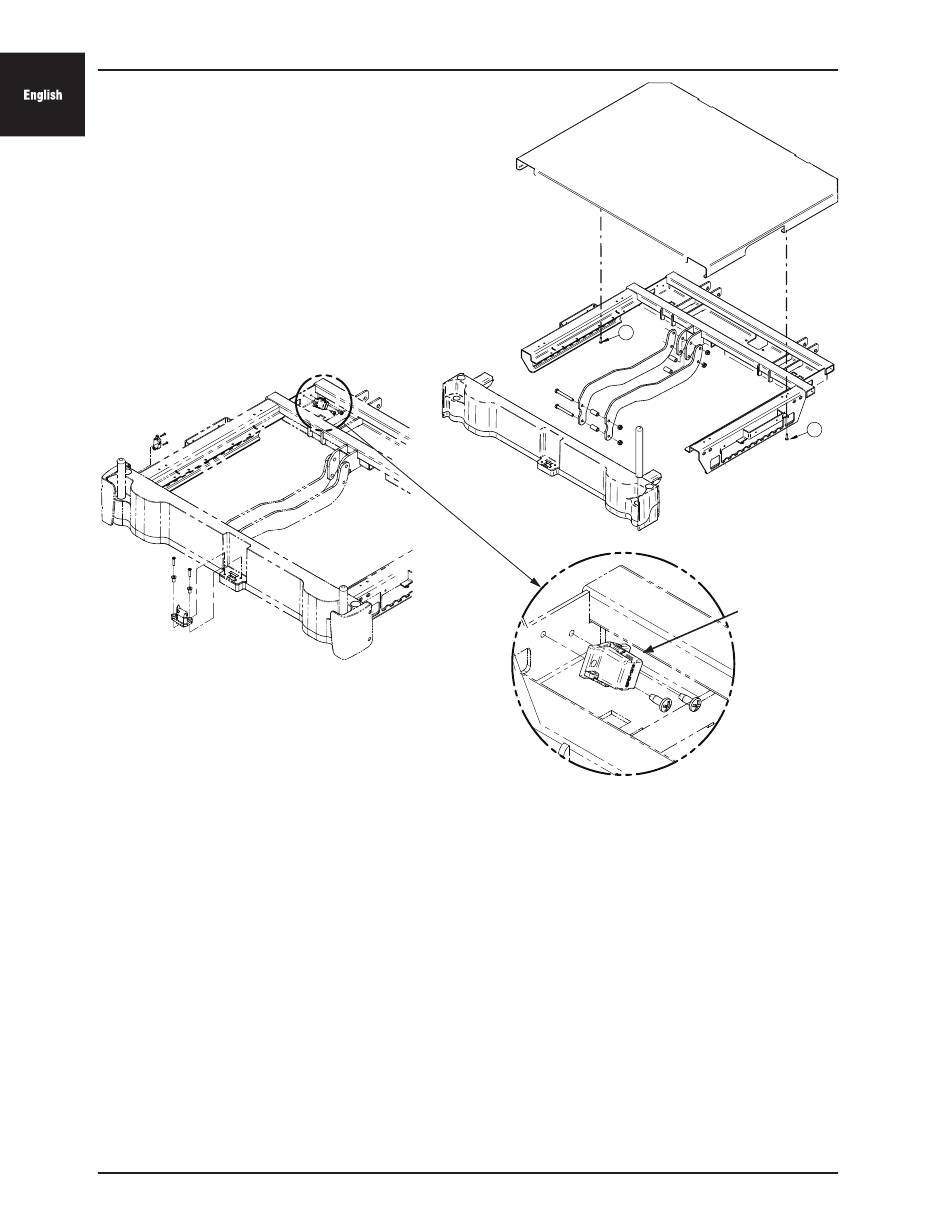

4 . Using a Phillips screwdriver, remove the two screws securing the electrical cover and then remove the cover (refer
to Figure 1 above, item A and B) .
5 . Using a Phillips screwdriver, remove the two screws securing the angle sensor to the foot frame (refer to Figure 2
above) . Note: Use caution as the cover is large and heavy.
6 . Using an ESD system, properly ground yourself .
7 . Unclip the three clips holding the board cover on .
8 . Unplug the cable from the board .
9 . Reverse the steps to install the new foot angle sensor .
Note: Do not over-tighten the two screws.
10 . Recalibrate the bed (refer to Bed Calibration procedures on
11 . Test all bed functionality prior to putting the bed back into service .
Return To Table of Contents
1-80
Service Information
Figure 1
page
2151-109-006 REV A
Electrical Cover
A
1-17) .
B
Foot Angle Sensor
