CONFIGURATION SCREEN (CONTINUED)
A. Bed Calibration (Continued)
11 . When step 2 of the calibration procedure has completed, step 3 of the calibration procedure will begin and
Figure 13 as shown below will appear on the screen .
12 . Place the bed at +12 degrees Trendelenburg by pressing
the Trendelenburg (Foot Lift Up) button as shown in
Figure 14 . Verify +12 degrees +/- 0 .1 with the inclinometer
you previously placed on the litter frame in step 9 .
www.stryker.com
Maintenance Menu Guide

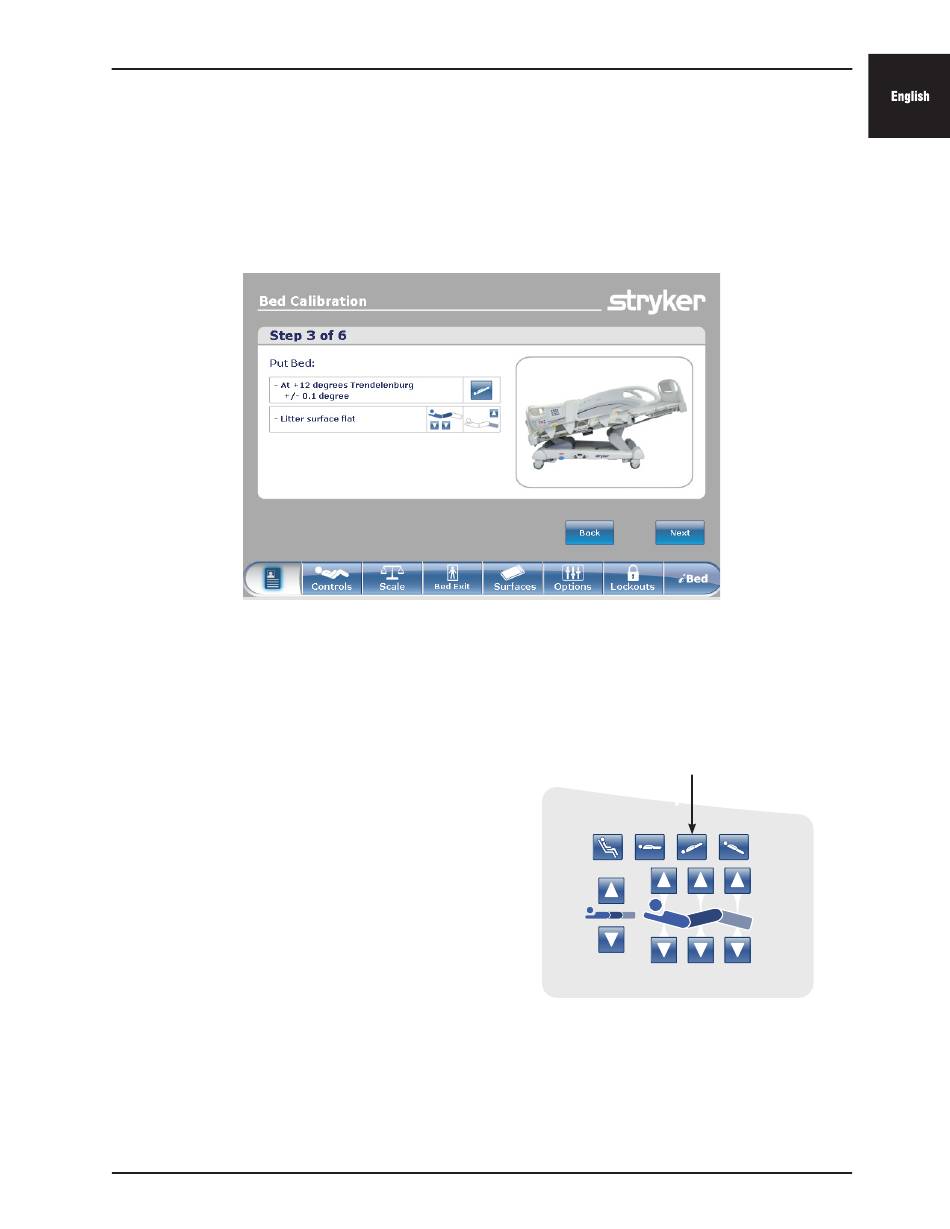

Figure 13: Bed Calibration - Step 3
2151-109-006 REV A
Trendelenburg
(Foot Lift Up)
Figure 14: Head Siderail Control Panel -
(Right Side Shown)
