CONFIGURATION SCREEN

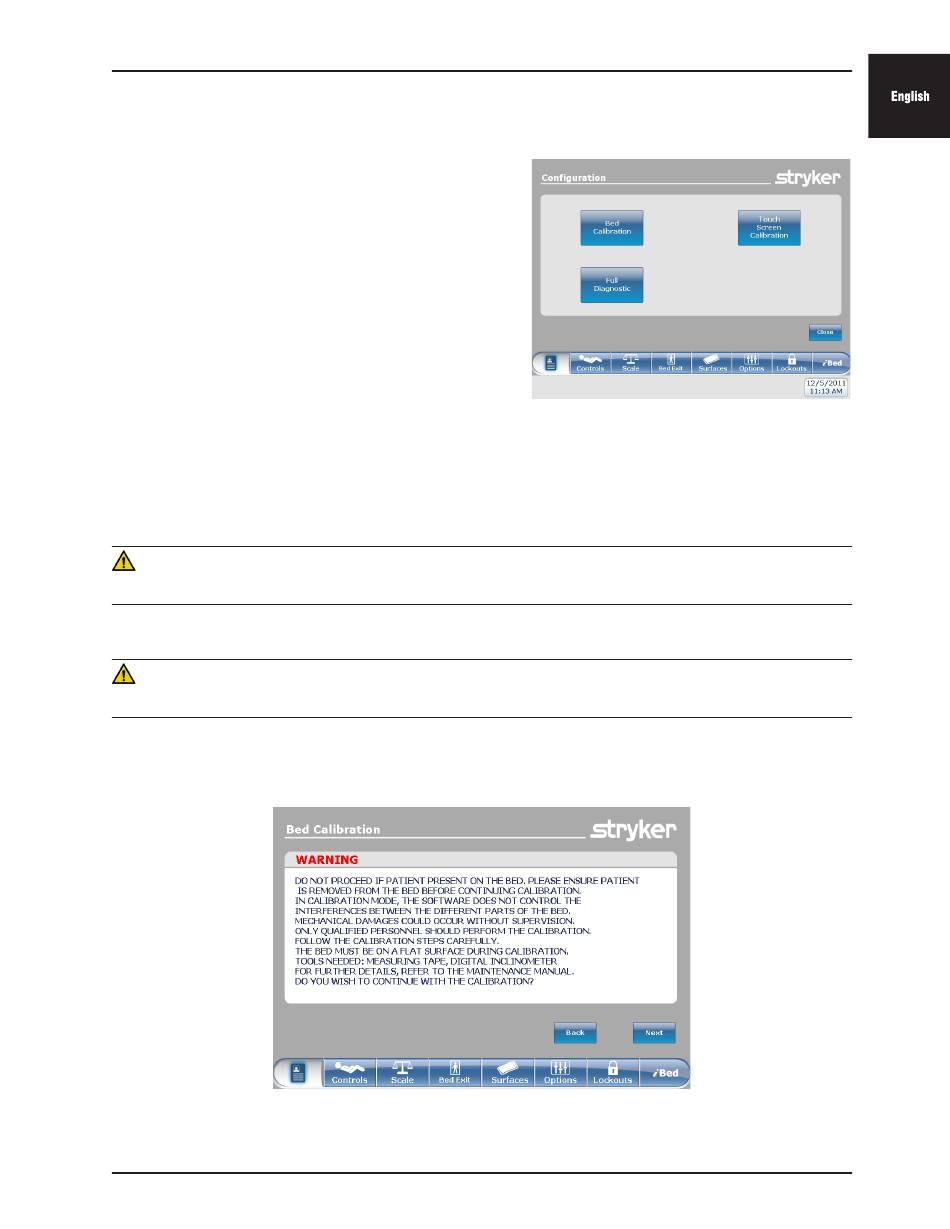

The following items A, B, and C are configuration buttons
available and displayed on the Configuration screen (Figure
3) .
A . Bed Calibration
B . Full Diagnostic (see page
C . Touch Screen Calibration
The following items D and E are configuration options avail-
able but are not displayed on the Configuration screen To
access these configuration options, follow the procedures
identified on page listed below .
D . Bed Options Configuration
E . Serial Number Configuration
A. Bed Calibration
CAUTION
Prior to calibration, connect the bed to an A/C outlet .
Note: During calibration, if the backlight shuts off touch the screen to continue .
WARNING
Refer to Figure 4 for WARNING details .
1 . To start the bed calibration, press the Bed Calibration button on the Configuration Screen (refer to Figure 3) .
2 . After pressing the Bed Calibration button, Figure 4 will be displayed . Press "Next" to continue with calibration .
