BED LIFT ACTUATOR (HEAD) REMOVAL AND REPLACEMENT - (BASE)

Tools Required:
• Needle-Nose Pliers
• Diagonal Pliers
• Jack (if needed)
• 2 x 4 (20" recommended)

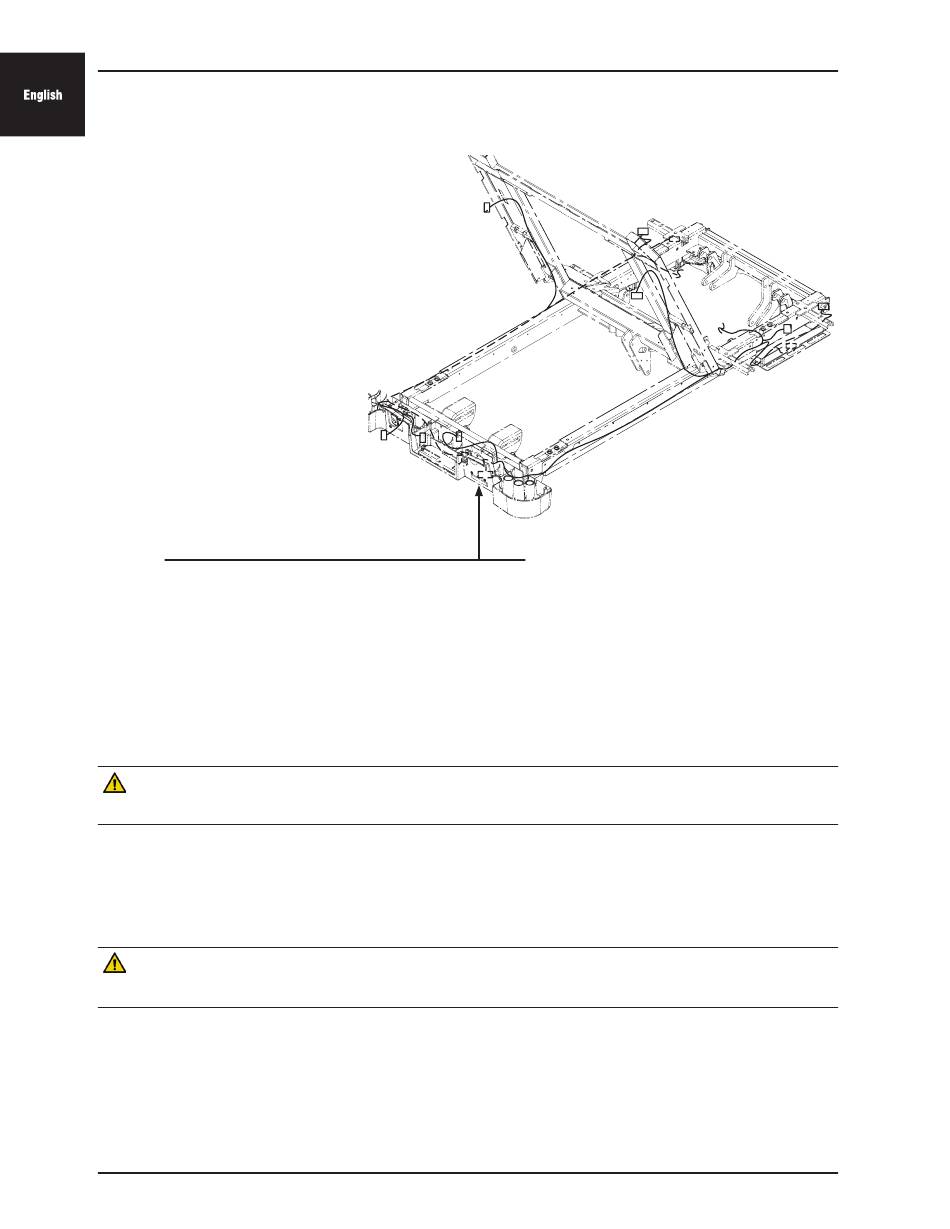

Step #8:
Locate Jack Stand between
floor and underside of Foot
Frame .
Floor
Procedure:
1 . Plug bed into wall outlet .
2 . Raise the head end siderails to the full up position and set the brakes using one of the brake control locations or
by using the manual brake pedal .
3 . Remove head end base cover by pulling up and out .
4 . Remove center base cover by pulling up and out .
5 . Using diagonal pliers, cut the zip tie securing the actuator cable to the base frame .
6 . Using Needle-nose pliers, remove the rue clips from the clevis pins securing the actuator .
CAUTION
Do not remove the clevis pins .
7 . If the bed will lower down, run it all the way down so the litter is supported by the base litter stop .
8 . If the bed will not lower all the way down; using a jack and a 2 x 4, take tension off of the actuator
clevis pins by placing the jack and 2 x 4 between the bottom of the right side of the litter and the
floor and jack up just enough to take the litter weight off of the base frame (reference picture) .
CAUTION
Make sure that prior to jacking, the 2 x 4 is perpendicular to the floor .
9 . Using the bed up/down controls, tap the up or down button to remove
tension on the clevis pins and remove clevis pins .
10 . Unplug the cable quick connect and remove the actuator .
11 . Reverse the steps to install the new actuator .
12 . Test all bed functionality prior to putting bed back in service .
