SCALE TROUBLESHOOTING

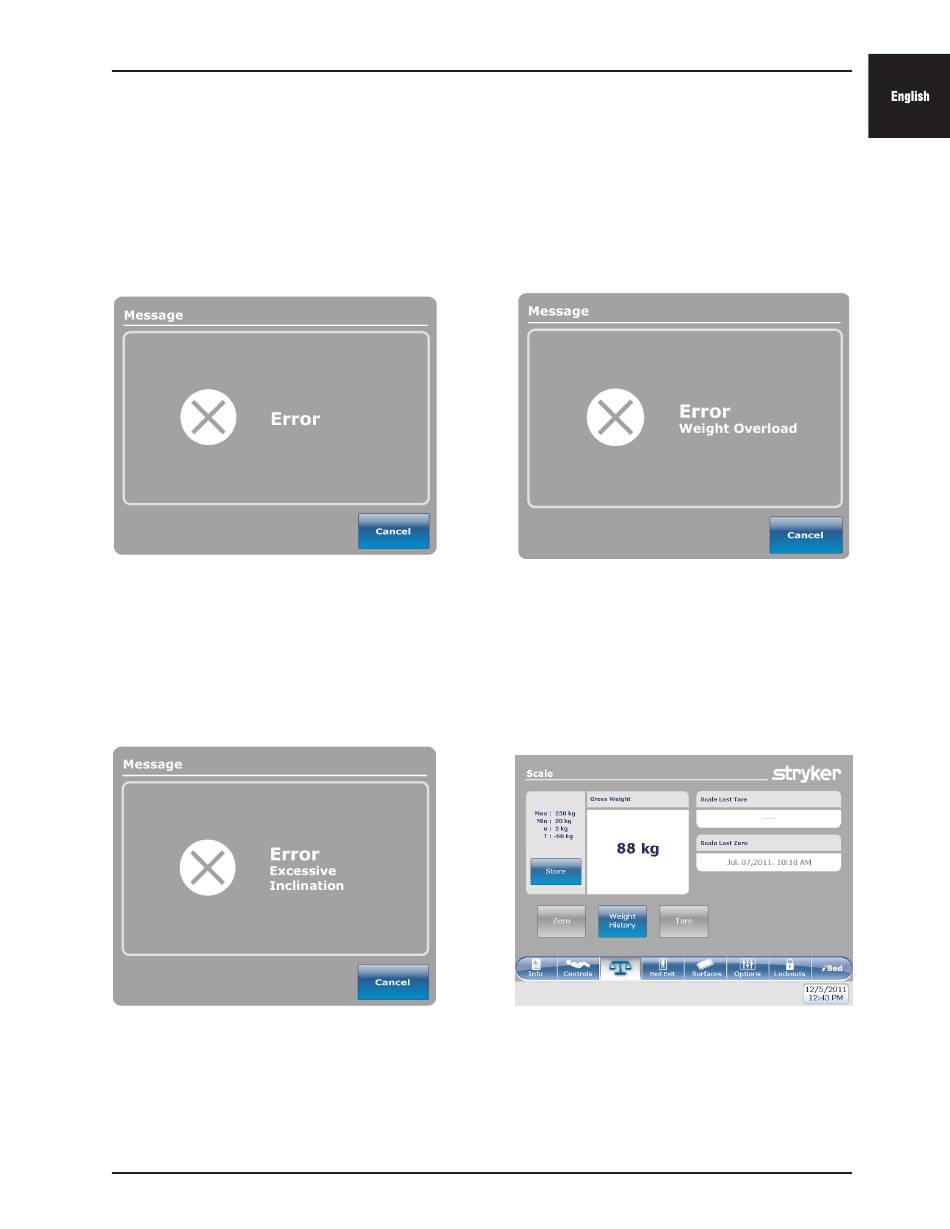

When the Scale System is unable to correctly weigh the patient weight due to a problem with the electronics, Figure 40
will be displayed . It also appears when there is a problem with the Trendelenburg angle sensor; thus the value for the
weight and the angle cannot be displayed .
When the weight exceeds 550 lbs ., Figure 41 will be displayed . If the weight is less than 2 lbs ., the screen will display
"0 lb ."
Figure 40
When the Trendelenburg or Reverse Trendelenburg angle is above 12
The display in Figure 43 will appear as long as the correct weight has not been taken and also when the patient moves
too much for the weight to be taken properly .
Figure 42
www.stryker.com
Troubleshooting Guide
2151-109-006 REV A
Figure 41
or below -12 , Figure 42 will be displayed .
0 0
Figure 43
