CONFIGURATION SCREEN (CONTINUED)
A. Bed Calibration (Continued)

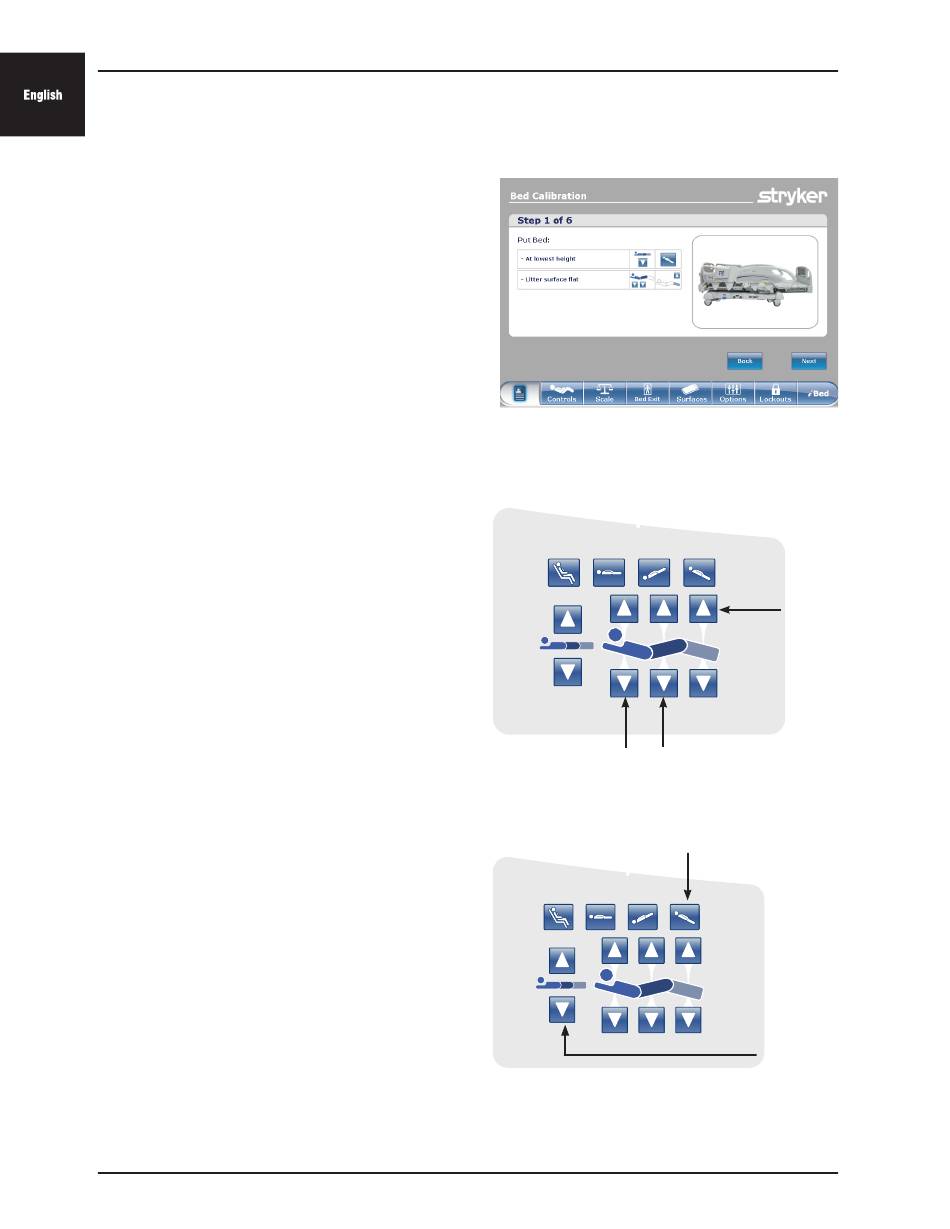

3 . After pressing "Next" to continue calibration,
Figure 5 will appear .
4 . Place the Litter surface to a flat position
by pressing simultaneously the Foot Up,
Fowler Down and Gatch Down buttons as
shown in Figure 6 .
5 . Lower the bed to the lowest position . Press
the Bed Height Down (Head Lift Down) and
Reverse Trendelenburg (Foot Lift Down)
buttons simultaneously as shown in Figure 7 .
Return To Table of Contents
1-18
Maintenance Menu Guide
Figure 6: HE Siderail Control Panel - (Right Side Shown)
Figure 7: HE Siderail Control Panel - (Right Side Shown)
2151-109-006 REV A
Figure 5: Bed Calibration - Step #1 of 6
Fowler Down Gatch Down
Reverse Trendelenburg
(Foot Lift Down)
Foot Up
QDF27-2237
Bed Height
Down
(Head Lift
Down)
QDF27-2237
