CONFIGURATION SCREEN (CONTINUED)
B. Full Diagnostic
1 . From the Configuration Screen, press the
Full Diagnostic button . Figure 26 will appear .
2 . The following menu items may be selected
by pressing their button .
a . BOARDS (Figure 27a)
Provides information on the switch
boards and the touch screen's software
version .
b . ERROR CODES (Figure 27b)
Provides information on errors which
the CPU board has identified .
c . INPUT STATES (Figure 27c)
Provides information on the status of all
switches and jumpers on the bed .
d . MOTORS (Figure 27d)
Provides information on what a motor is doing when a function button is pushed .
Note: This requires assistance to press the buttons on the head siderails or at the head end control .
e . BUTTONS PRESSED (Figure 27e)
Provides information on when the CPU has detected a button being pressed .
Note: This requires assistance to press the buttons on the head siderails or at the head end control .
f . SIGNAL VALUES (Figure 27f)
Provides information on CPU voltages, load cell values, and angle sensor values .
Boards Connected
Nurse A.0 A.1
Nurse (SRH) A.1
Nurse (SRL) A.1
Nurse (SRR) A.1
Power board B.37
Room Interface A.1
TouchScreen D.3
Close
Figure 27a: Boards Connected
Motors
Gatch - Reverse
Hilo Foot - Forward
Foot - Forward
Close
Figure 27d: Motors
Return To Table of Contents
1-28
Maintenance Menu Guide
Figure 27b: Error Codes
Buttons Pressed
Nurse SRR - Trend
Footboard - Hob
Nurse Head - Leg up
Figure 27e: Buttons Pressed
2151-109-006 REV A

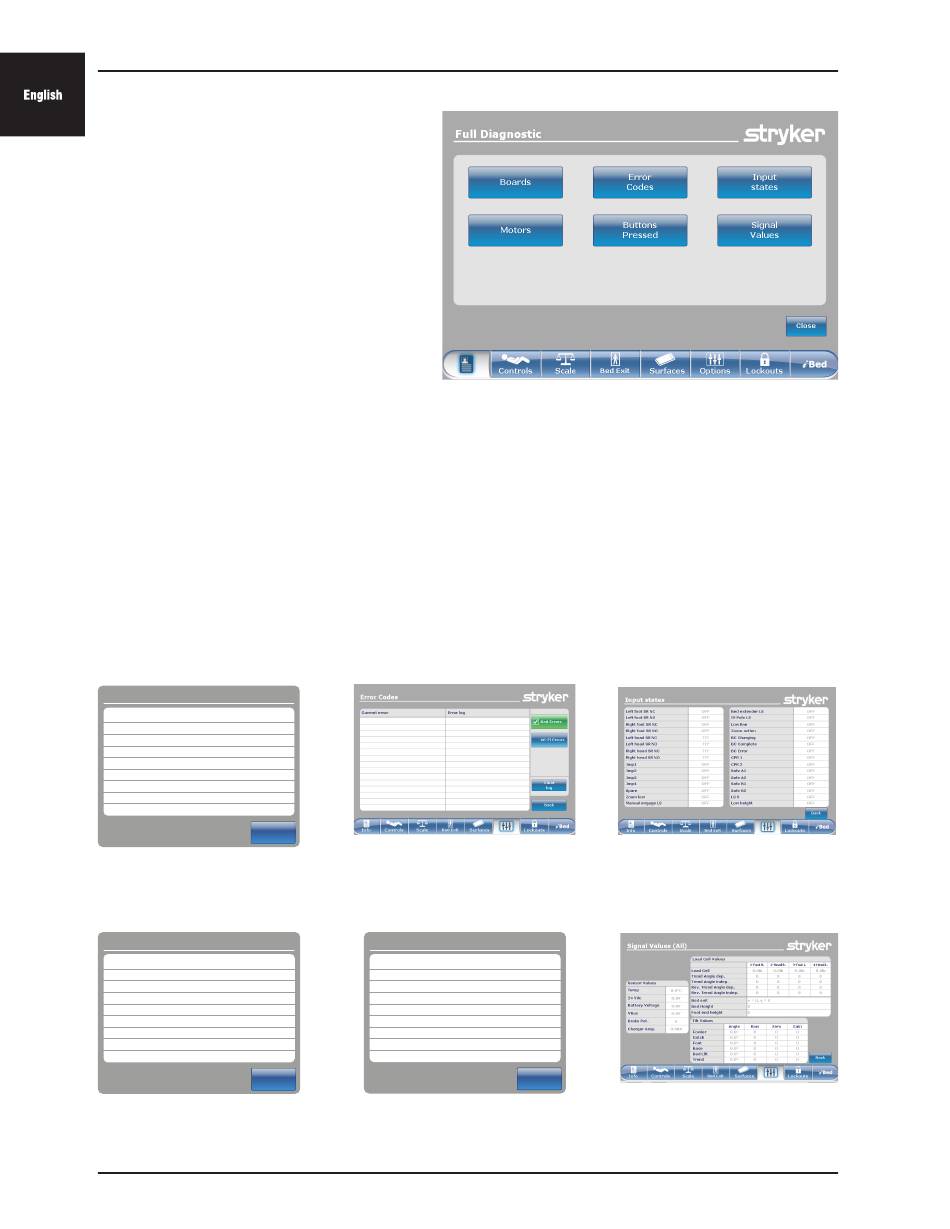

Figure 26: Full Diagnostic Screen
