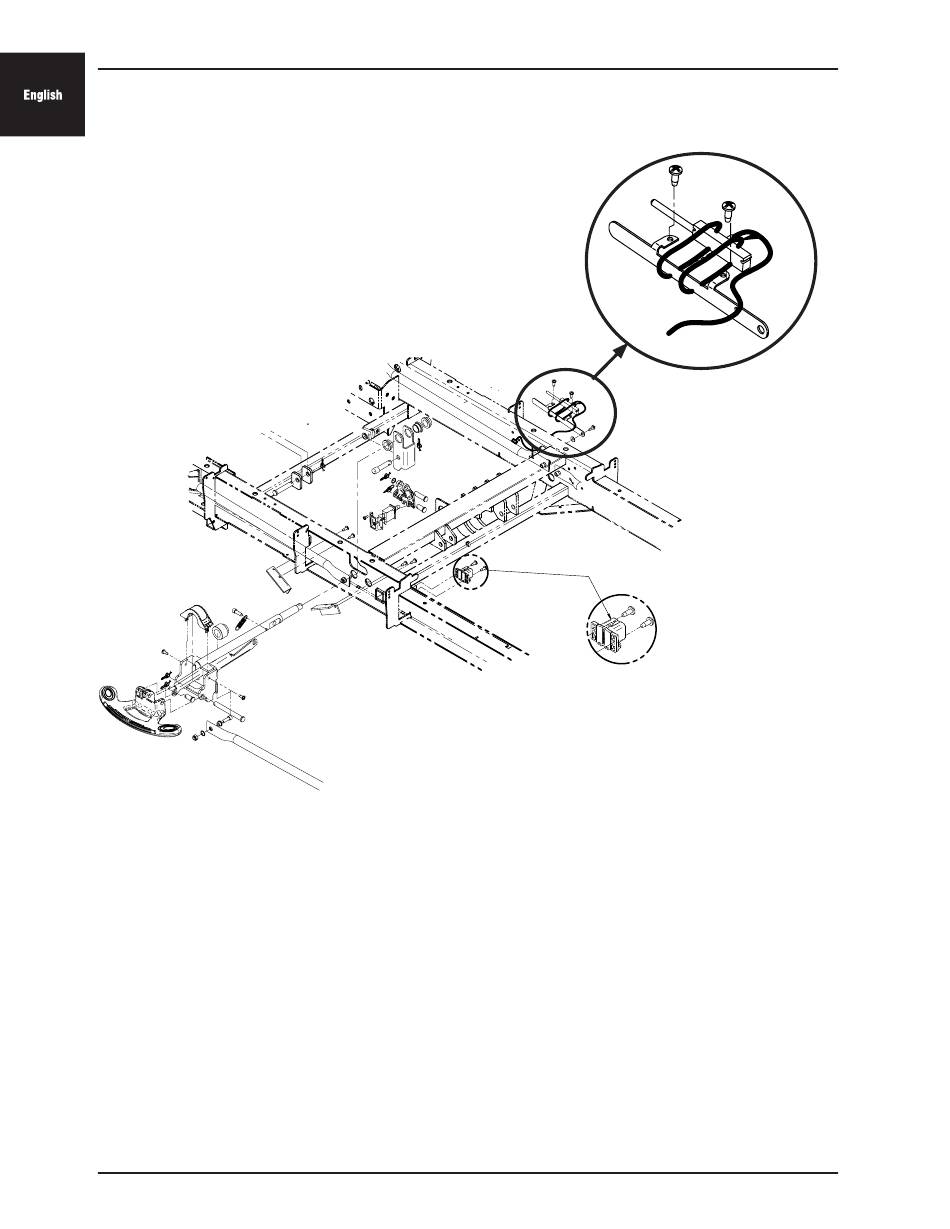

BRAKE / NEUTRAL / DRIVE POTENTIOMETER REMOVAL AND REPLACEMENT - QDF27-2024
Tools Required:
• Diagonal Pliers
Procedure:
1 .
Plug bed into wall outlet .
2 .
Raise the bed lift and patient's left siderails all the way up .
3 .
Remove the base center covers (foot, center, and head) .
4 .
Remove the patient's left base frame cover .
5 .
Cut the two wire ties securing the potentiometer to the potentiometer bracket; then cut the two wire ties securing
the potentiometer wires to the frame .
6 .
Remove the electrical tape holding the quick connection together .
7 .
Reverse the above procedures for installation of the new potentiometer .
NOTE: Make sure to install new wire ties in the same location.
8 .
Recalibrate the bed (refer to Bed Calibration procedures on
9 .
Test all bed functionality prior to putting the bed back into service .
Return To Table of Contents
1-76
Service Information
page
2151-109-006 REV A
1-17) .
www.stryker.com
