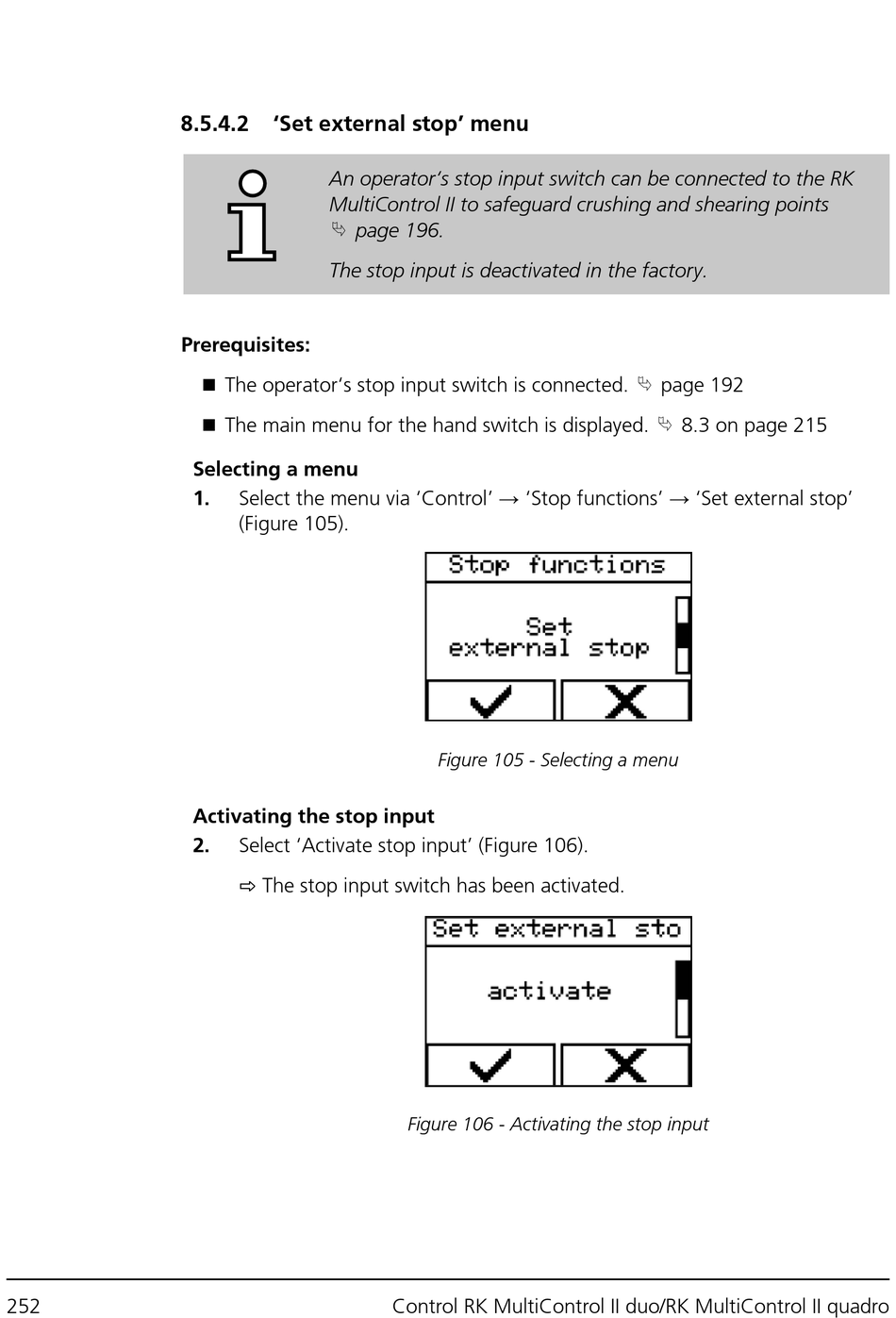

8.5.4.2 'Set external stop' menu
An operator's stop input switch can be connected to the RK
MultiControl II to safeguard crushing and shearing points
⮱
The stop input is deactivated in the factory.
◼ The operator's stop input switch is connected.
Prerequisites:
◼ The main menu for the hand switch is displayed.
Selecting a menu
Select the menu via 'Control' → 'Stop functions' → 'Set external stop'
1.
(Figure 105).
Activating the stop input
⇨ The stop input switch has been activated.
2.
Select 'Activate stop input' (Figure 106).
page 196.
Figure 105 - Selecting a menu
Figure 106 - Activating the stop input
Control RK MultiControl II duo/RK MultiControl II quadro
⮱
page 192
⮱
8.3 on page 215
