6.4.6
IO interface module
200
Connecting the IO interface module
The IO interface module can be connected to the RK
MultiControl II using the control BUS cable supplied.
Do not connect the IO interface module to direct current voltage
supplies.
The cables connected to the IO interface module must not be
longer than 30 m and must not be routed outside of buildings.
6.4.6.1 Connection configuration - IO interface module
Inputs

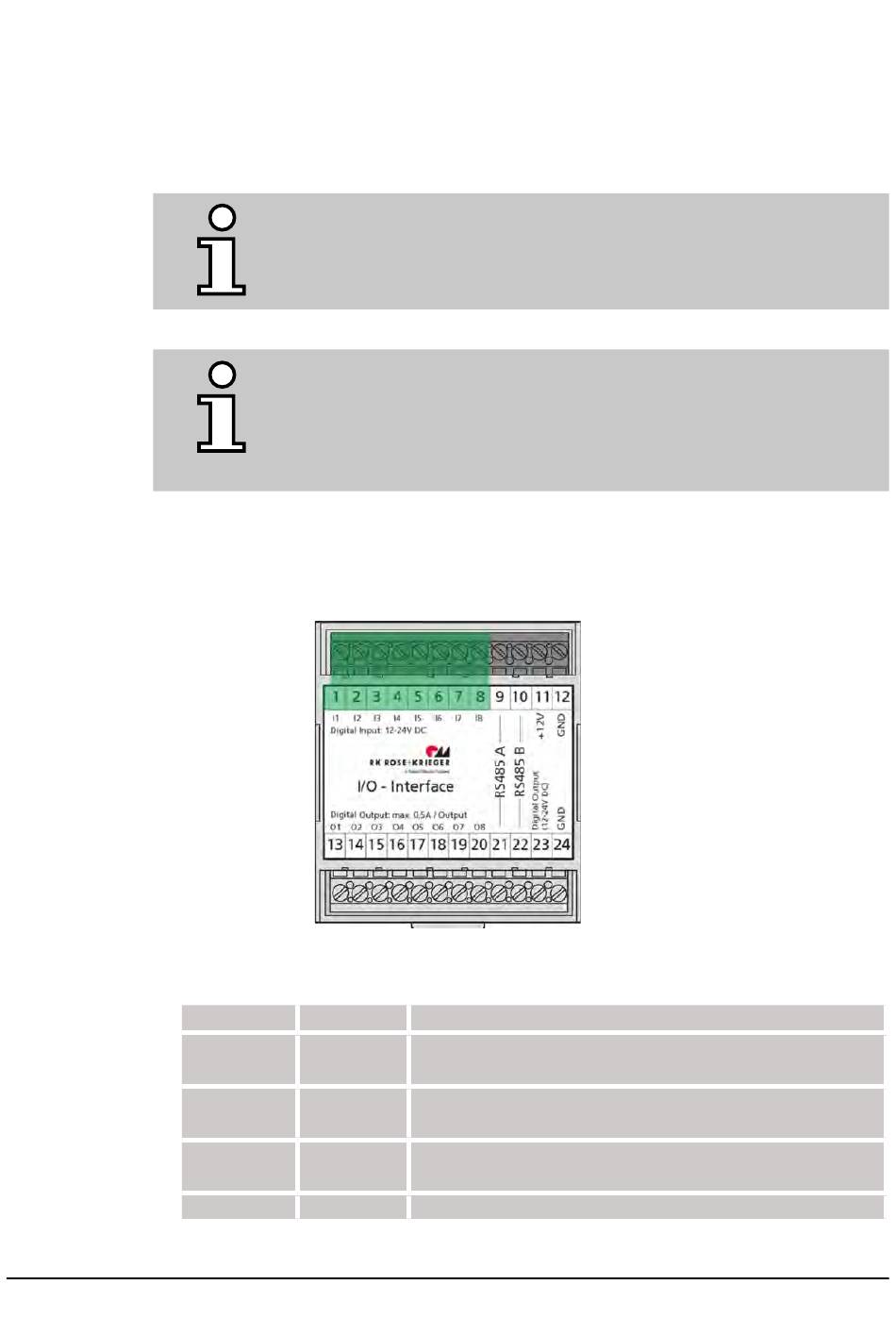

Figure 26 - IO interface module inputs
Inputs Terminal
I1 - I8* 1 - 8
I1 1
I2 2
I3 3
◼ High: 5 - 30 VDC
Function
◼ Low: 0 - 2 VDC
UP: When the high level is active, a movement is made
towards the maximum position.
DOWN: When the high level is active, a movement is
made towards the minimum position.
Action enabled from 3-bit mask (inputs 4 - 6)
Control RK MultiControl II duo/RK MultiControl II quadro
