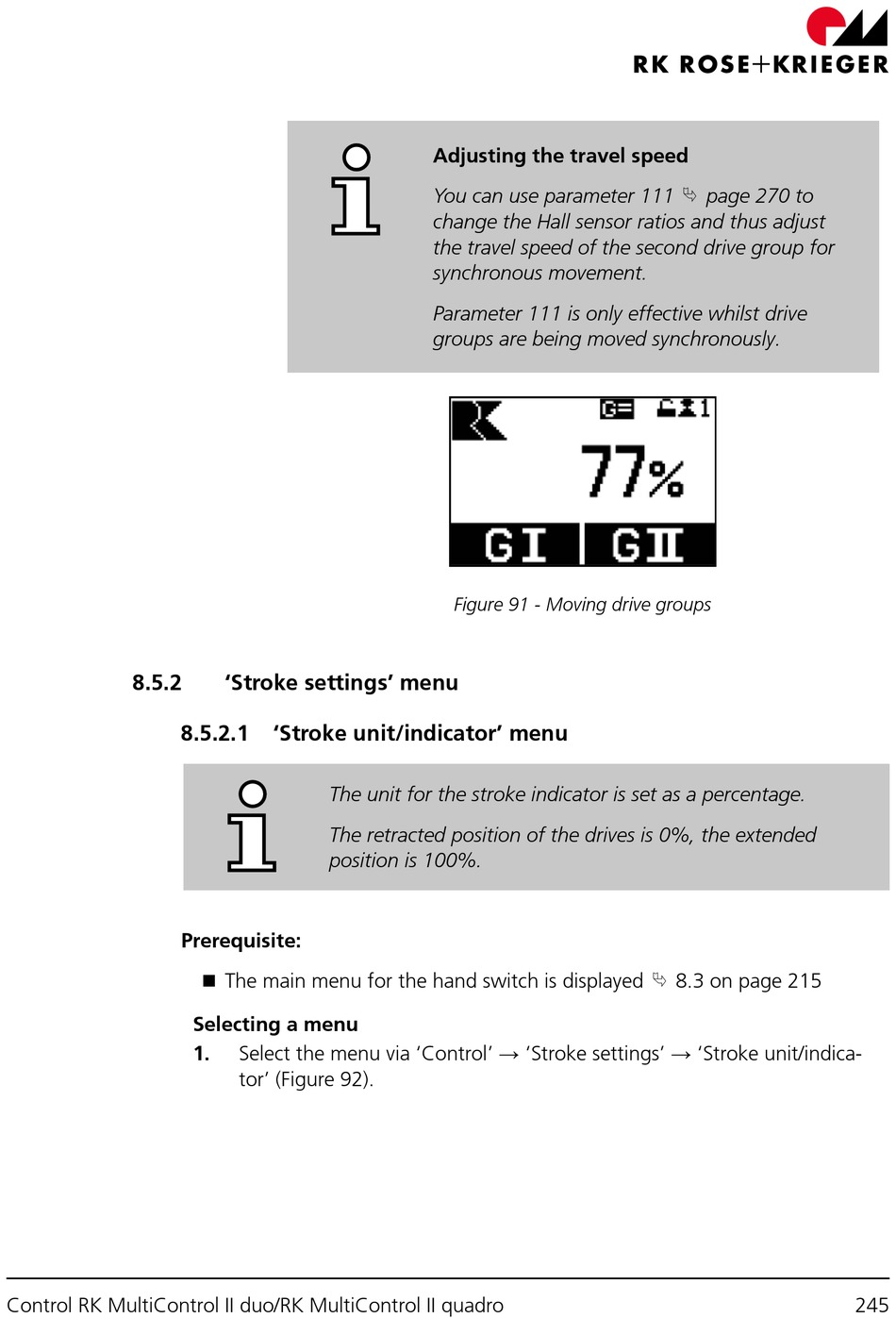

8.5.2
Control RK MultiControl II duo/RK MultiControl II quadro
'Stroke settings' menu
8.5.2.1
'Stroke unit/indicator' menu
The unit for the stroke indicator is set as a percentage.
The retracted position of the drives is 0%, the extended
position is 100%.
◼ The main menu for the hand switch is displayed
Prerequisite:
Selecting a menu
Select the menu via 'Control' → 'Stroke settings' → 'Stroke unit/indica-
1.
tor' (Figure 92).
Adjusting the travel speed
You can use parameter 111
change the Hall sensor ratios and thus adjust
the travel speed of the second drive group for
synchronous movement.
Parameter 111 is only effective whilst drive
groups are being moved synchronously.
Figure 91 - Moving drive groups
⮱
page 270 to
⮱
8.3 on page 215
245
