4.3.2

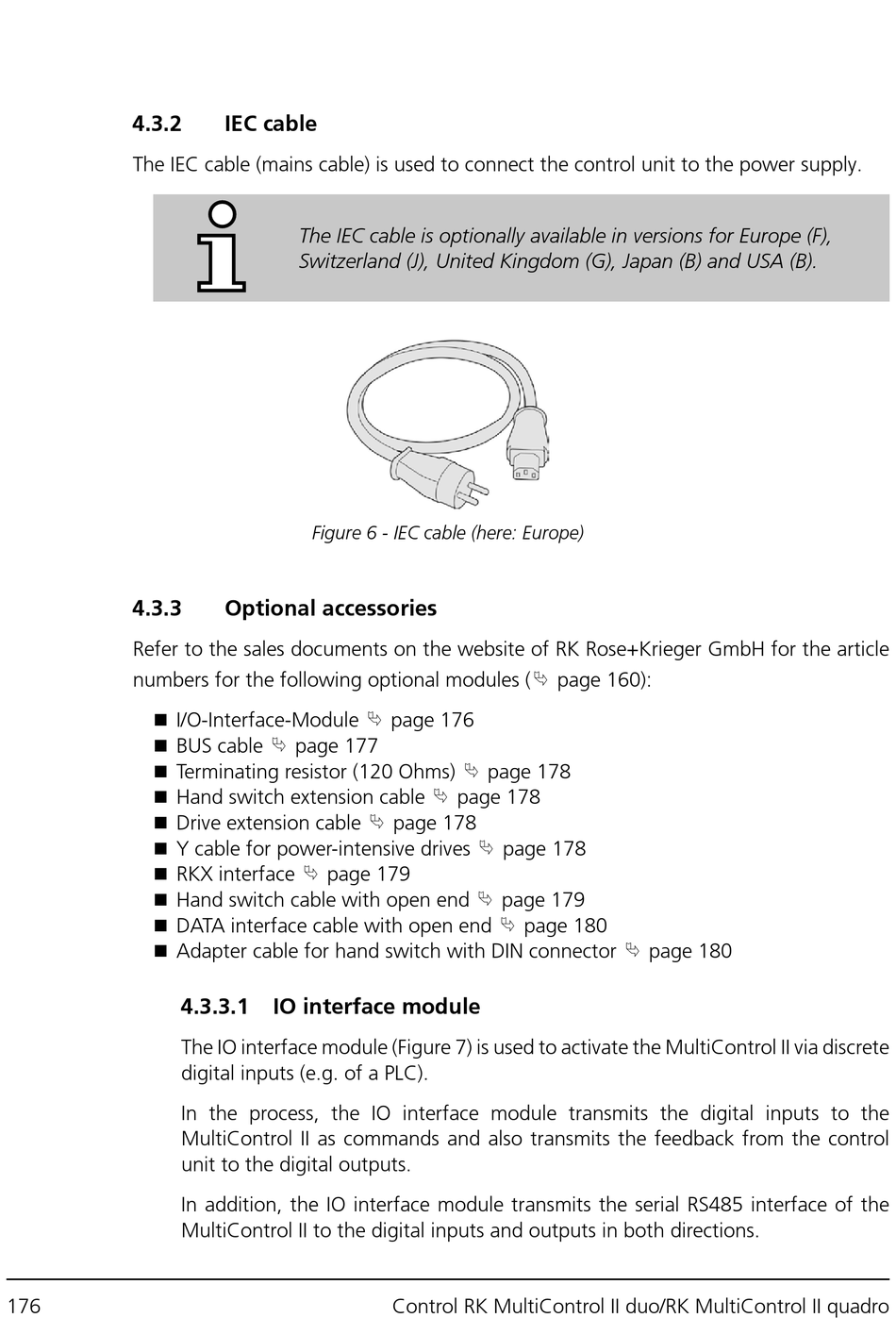

The IEC cable (mains cable) is used to connect the control unit to the power supply.
4.3.3
Refer to the sales documents on the website of RK Rose+Krieger GmbH for the article
◼ I/O-Interface-Module
numbers for the following optional modules (
◼ BUS cable
◼ Terminating resistor (120 Ohms)
◼ Hand switch extension cable
◼ Drive extension cable
◼ Y cable for power-intensive drives
◼ RKX interface
◼ Hand switch cable with open end
◼ DATA interface cable with open end
◼ Adapter cable for hand switch with DIN connector
176
IEC cable
The IEC cable is optionally available in versions for Europe (F),
Switzerland (J), United Kingdom (G), Japan (B) and USA (B).
Figure 6 - IEC cable (here: Europe)
Optional accessories
⮱
page 177
⮱
page 179
4.3.3.1 IO interface module
The IO interface module (Figure 7) is used to activate the MultiControl II via discrete
digital inputs (e.g. of a PLC).
In the process, the IO interface module transmits the digital inputs to the
MultiControl II as commands and also transmits the feedback from the control
unit to the digital outputs.
In addition, the IO interface module transmits the serial RS485 interface of the
MultiControl II to the digital inputs and outputs in both directions.
⮱
⮱
page 176
⮱
page 178
⮱
page 178
⮱
page 178
⮱
page 178
⮱
page 179
⮱
page 180
Control RK MultiControl II duo/RK MultiControl II quadro
page 160):
⮱
page 180
