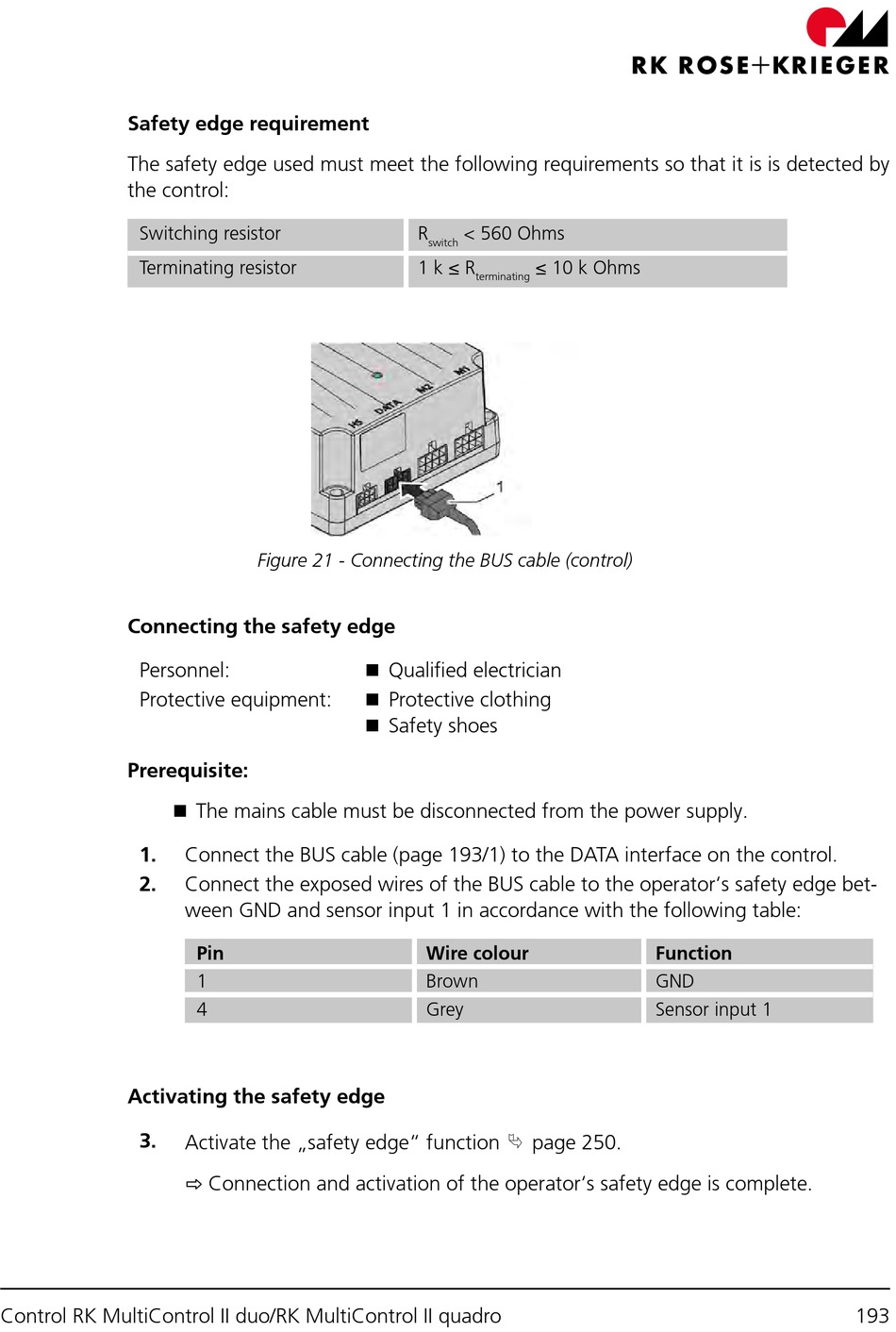

Safety edge requirement
The safety edge used must meet the following requirements so that it is is detected by
the control:
Switching resistor
Terminating resistor
Connecting the safety edge
Personnel:
Protective equipment:
Prerequisite:
1.
2.
Activating the safety edge
3.
Control RK MultiControl II duo/RK MultiControl II quadro
Figure 21 - Connecting the BUS cable (control)
◼ The mains cable must be disconnected from the power supply.
Connect the BUS cable (page 193/1) to the DATA interface on the control.
Connect the exposed wires of the BUS cable to the operator's safety edge bet-
ween GND and sensor input 1 in accordance with the following table:
Pin
1
4
⇨ Connection and activation of the operator's safety edge is complete.
Activate the „safety edge" function
R
< 560 Ohms
switch
1 k ≤ R
≤ 10 k Ohms
terminating
◼ Qualified electrician
◼ Protective clothing
◼ Safety shoes
Wire colour
Brown
Grey
⮱
page 250.
Function
GND
Sensor input 1
193
