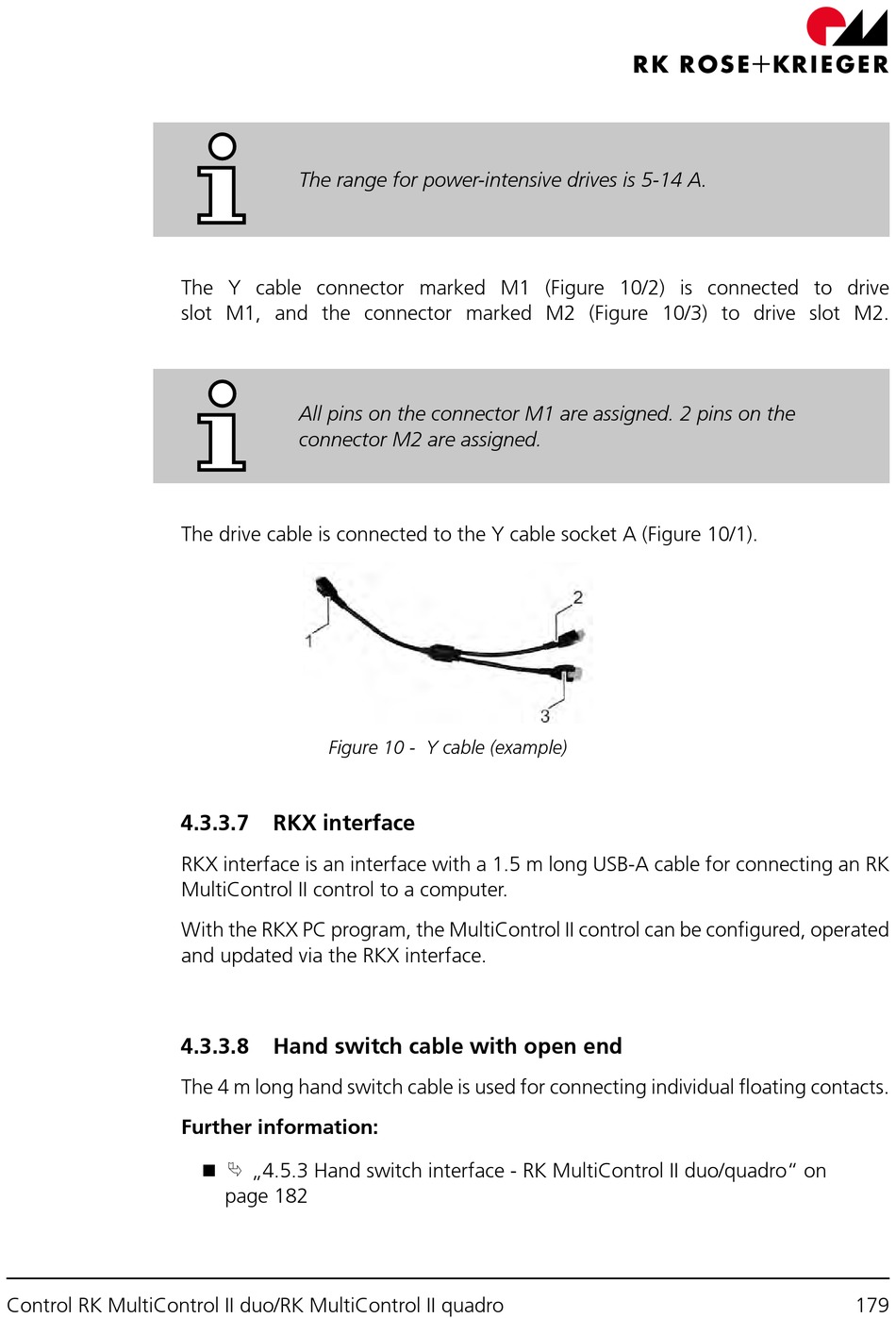

RK Rose+Krieger Gesamt RK MultiControl II duo Montageanleitung Seite 179

Control RK MultiControl II duo/RK MultiControl II quadro
The range for power-intensive drives is 5-14 A.
The Y cable connector marked M1 (Figure 10/2) is connected to drive
slot M1, and the connector marked M2 (Figure 10/3) to drive slot M2.
All pins on the connector M1 are assigned. 2 pins on the
connector M2 are assigned.
The drive cable is connected to the Y cable socket A (Figure 10/1).
Figure 10 - Y cable (example)
4.3.3.7 RKX interface
RKX interface is an interface with a 1.5 m long USB-A cable for connecting an RK
MultiControl II control to a computer.
With the RKX PC program, the MultiControl II control can be configured, operated
and updated via the RKX interface.
4.3.3.8 Hand switch cable with open end
The 4 m long hand switch cable is used for connecting individual floating contacts.
◼
Further information:
⮱
„4.5.3 Hand switch interface - RK MultiControl II duo/quadro" on
page 182
