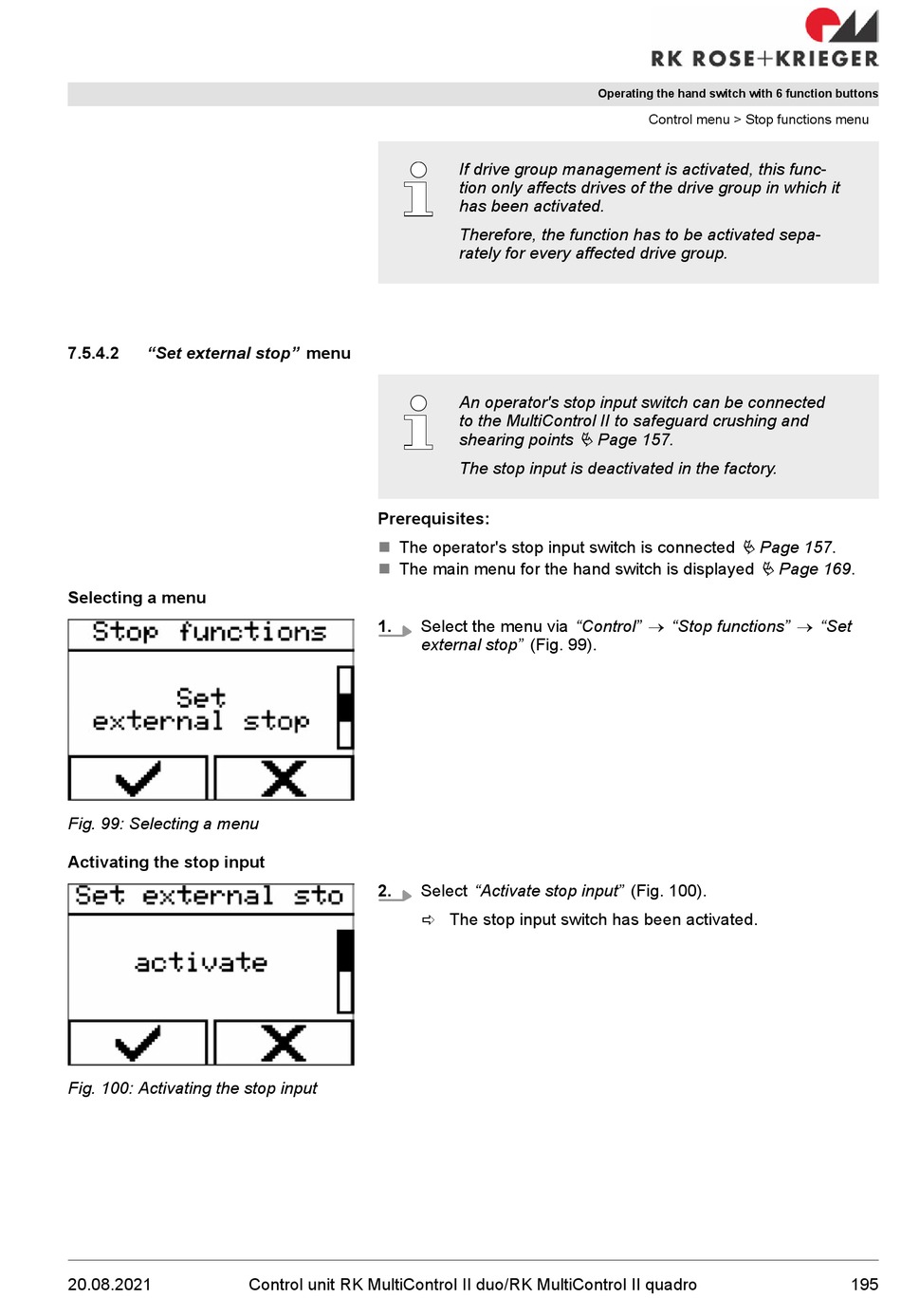

"Set external stop" menu

Selecting a menu
Fig. 99: Selecting a menu
Activating the stop input
Fig. 100: Activating the stop input
20.08.2021
Prerequisites:
n The operator's stop input switch is connected
n The main menu for the hand switch is displayed
1.
2.
Control unit RK MultiControl II duo/RK MultiControl II quadro
If drive group management is activated, this func-
tion only affects drives of the drive group in which it
has been activated.
Therefore, the function has to be activated sepa-
rately for every affected drive group.
An operator's stop input switch can be connected
to the MultiControl II to safeguard crushing and
Ä Page 157.
shearing points
The stop input is deactivated in the factory.
Select the menu via "Control" ® "Stop functions" ® "Set
external stop" (Fig. 99).
Select "Activate stop input" (Fig. 100).
ð The stop input switch has been activated.
Operating the hand switch with 6 function buttons
Control menu > Stop functions menu
Ä Page 157.
Ä Page 169.
