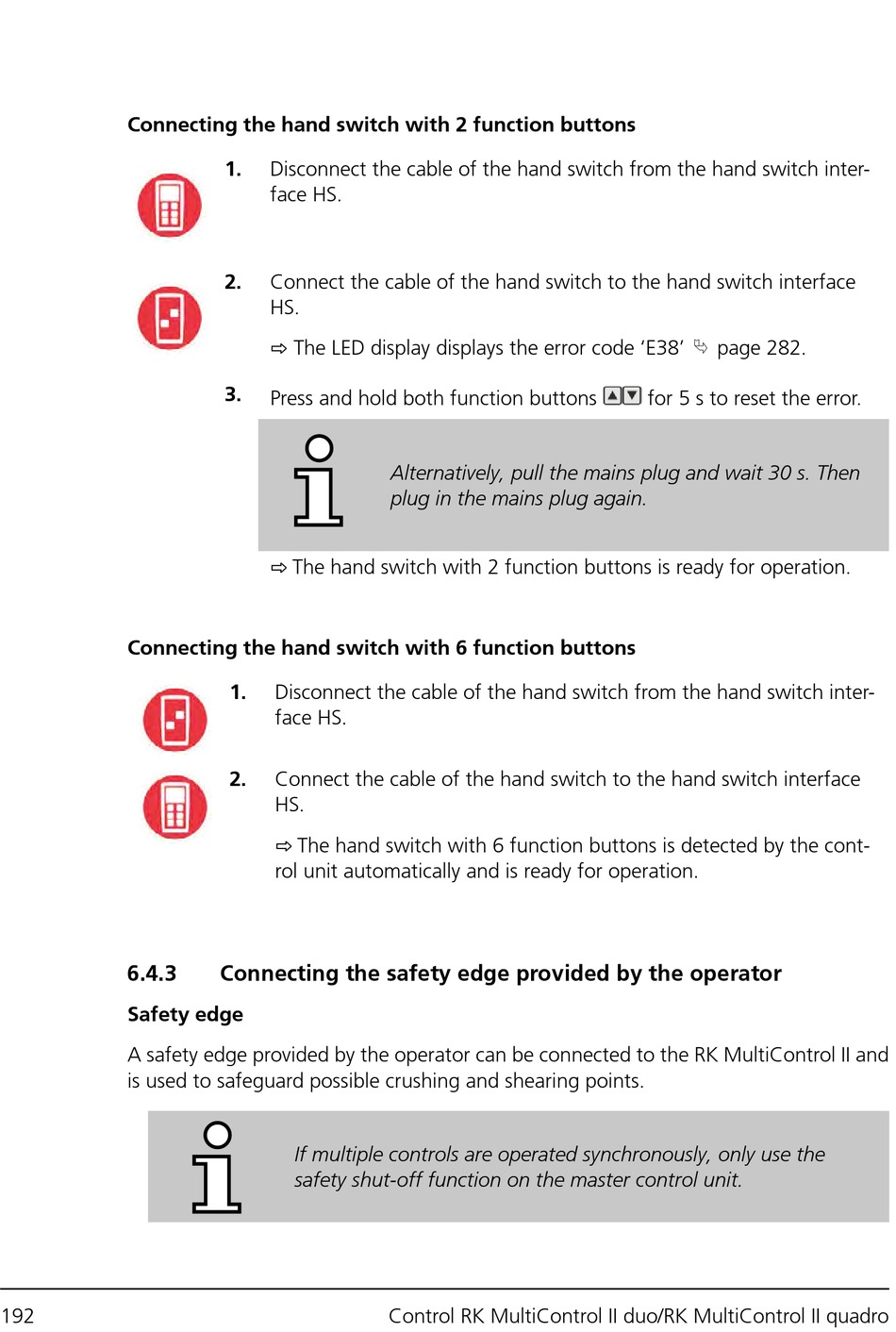

Connecting the hand switch with 2 function buttons
Connecting the hand switch with 6 function buttons
6.4.3
Safety edge
A safety edge provided by the operator can be connected to the RK MultiControl II and
is used to safeguard possible crushing and shearing points.
192
1. Disconnect the cable of the hand switch from the hand switch inter-
face HS.
2. Connect the cable of the hand switch to the hand switch interface
⇨ The LED display displays the error code 'E38'
HS.
3.
Press and hold both function buttons
Alternatively, pull the mains plug and wait 30 s. Then
plug in the mains plug again.
⇨ The hand switch with 2 function buttons is ready for operation.
1. Disconnect the cable of the hand switch from the hand switch inter-
face HS.
2.
Connect the cable of the hand switch to the hand switch interface
⇨ The hand switch with 6 function buttons is detected by the cont-
HS.
rol unit automatically and is ready for operation.
Connecting the safety edge provided by the operator
If multiple controls are operated synchronously, only use the
safety shut-off function on the master control unit.
Control RK MultiControl II duo/RK MultiControl II quadro
⮱
page 282.
for 5 s to reset the error.
