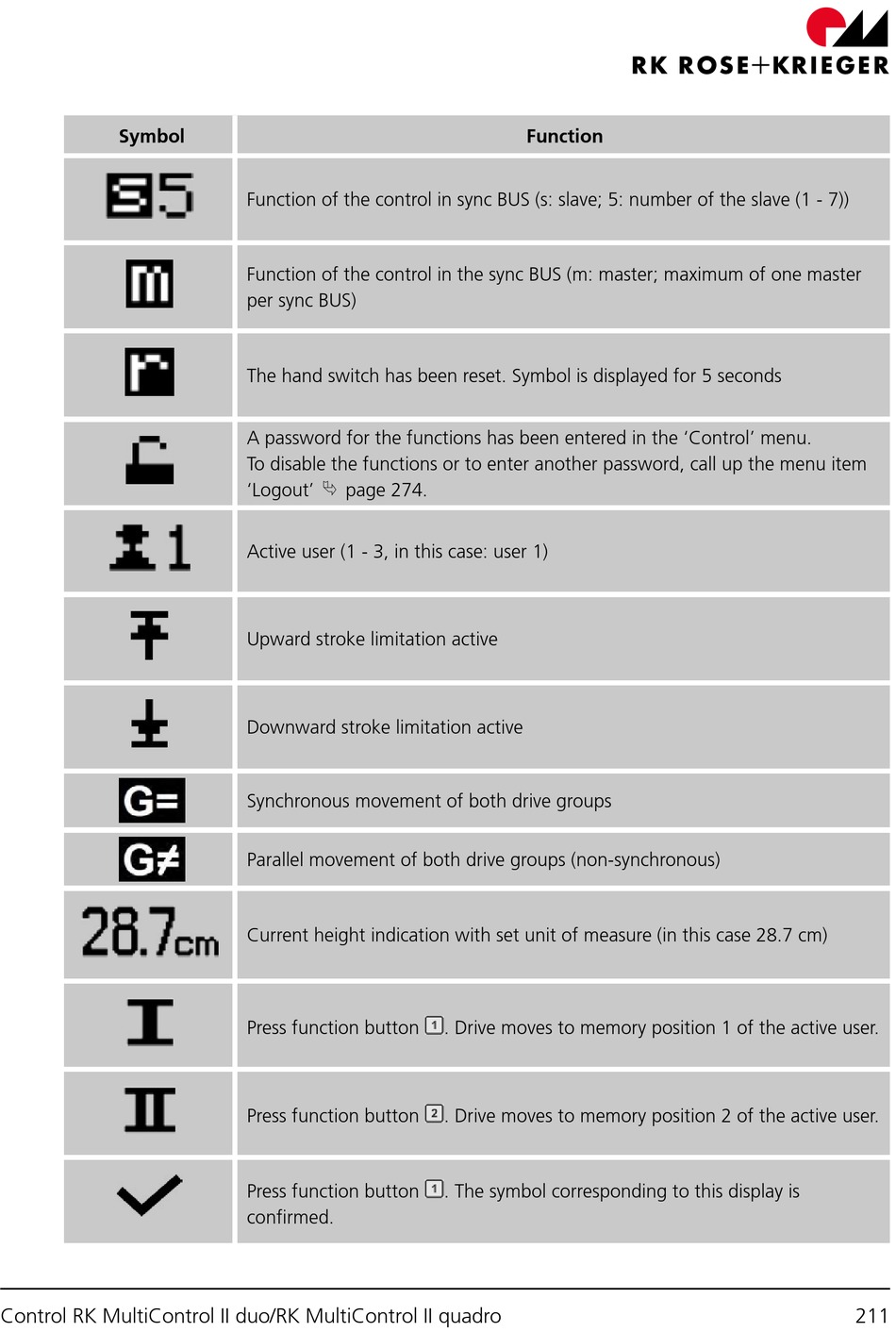

Symbol
Control RK MultiControl II duo/RK MultiControl II quadro
Function of the control in sync BUS (s: slave; 5: number of the slave (1 - 7))
Function of the control in the sync BUS (m: master; maximum of one master
per sync BUS)
The hand switch has been reset. Symbol is displayed for 5 seconds
A password for the functions has been entered in the 'Control' menu.
To disable the functions or to enter another password, call up the menu item
⮱
'Logout' page 274.
Active user (1 - 3, in this case: user 1)
Upward stroke limitation active
Downward stroke limitation active
Synchronous movement of both drive groups
Parallel movement of both drive groups (non-synchronous)
Current height indication with set unit of measure (in this case 28.7 cm)
Press function button
Press function button
Press function button
confirmed.
Function
. Drive moves to memory position 1 of the active user.
. Drive moves to memory position 2 of the active user.
. The symbol corresponding to this display is
