Code
Description
External stop signal has
„E13"
been set
Safety edge not
„E21"
connected or cable
break
Safety edge actuated
„E22"
during movement
SPP collision due to
„E23"
mechanical blockage
detected
Overvoltage in the
„E24"
intermediate circuit
„E31
-
Error, slave 1 to 7
E37"
Error, serial
„E38"
communication error on
control BUS

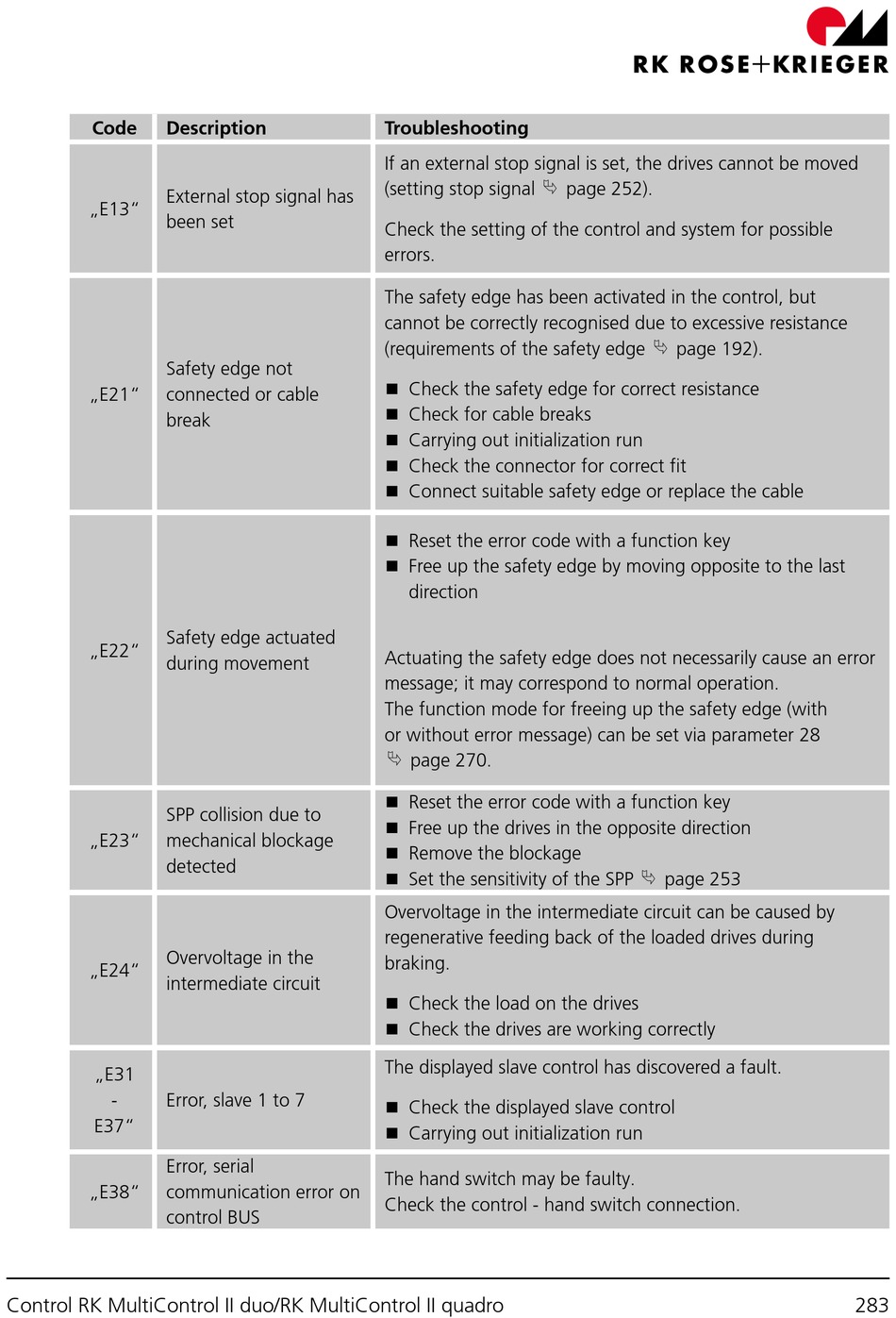

Control RK MultiControl II duo/RK MultiControl II quadro
Troubleshooting
If an external stop signal is set, the drives cannot be moved
⮱
(setting stop signal
Check the setting of the control and system for possible
errors.
The safety edge has been activated in the control, but
cannot be correctly recognised due to excessive resistance
◼ Check the safety edge for correct resistance
(requirements of the safety edge
◼ Check for cable breaks
◼ Carrying out initialization run
◼ Check the connector for correct fit
◼ Connect suitable safety edge or replace the cable
◼ Reset the error code with a function key
◼ Free up the safety edge by moving opposite to the last
direction
Actuating the safety edge does not necessarily cause an error
message; it may correspond to normal operation.
The function mode for freeing up the safety edge (with
or without error message) can be set via parameter 28
⮱
◼ Reset the error code with a function key
page 270.
◼ Free up the drives in the opposite direction
◼ Remove the blockage
◼ Set the sensitivity of the SPP
Overvoltage in the intermediate circuit can be caused by
regenerative feeding back of the loaded drives during
◼ Check the load on the drives
braking.
◼ Check the drives are working correctly
◼ Check the displayed slave control
The displayed slave control has discovered a fault.
◼ Carrying out initialization run
The hand switch may be faulty.
Check the control - hand switch connection.
page 252).
⮱
page 192).
⮱
page 253
283
