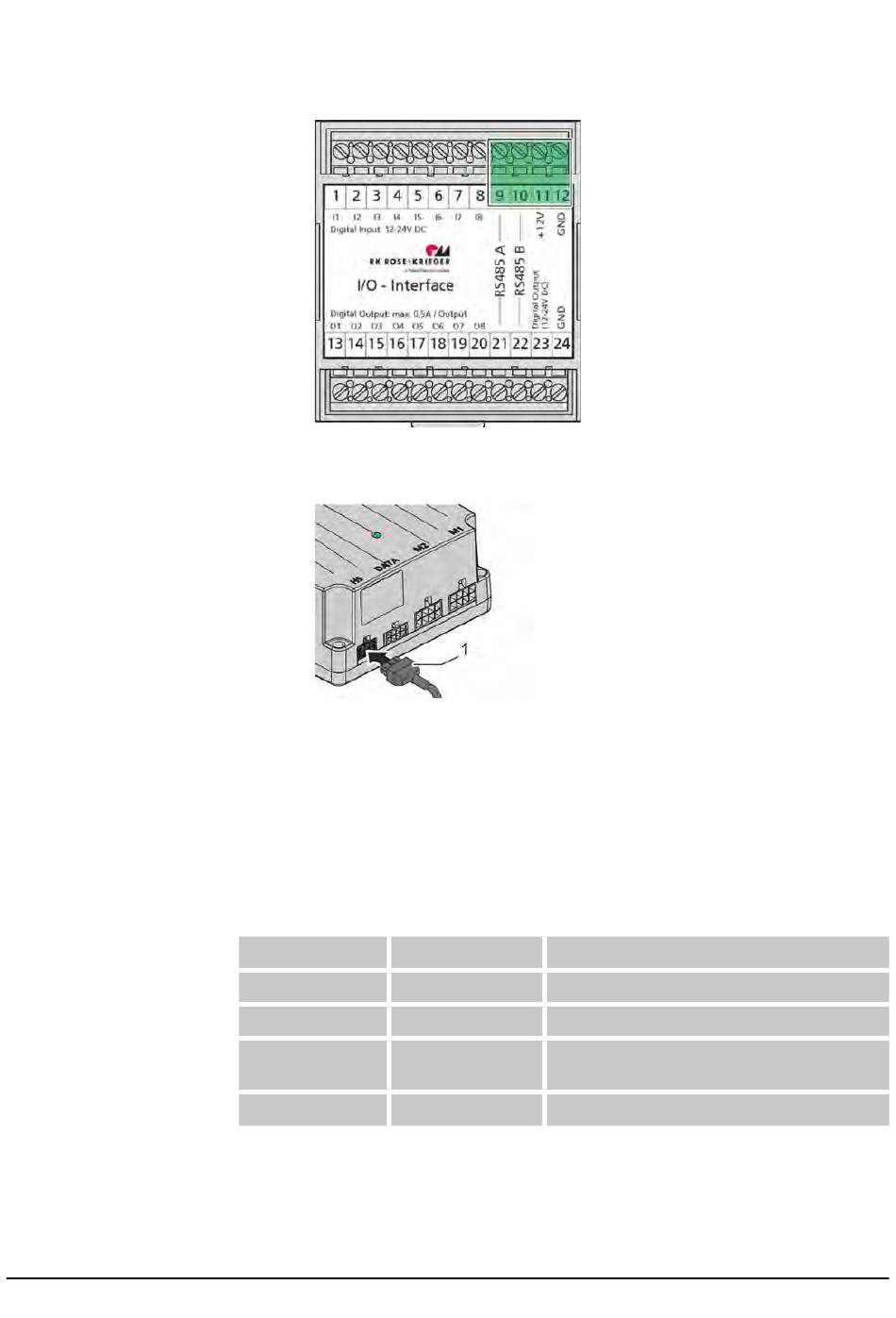

Figure 28 - Connecting the control BUS cable (terminals)
Figure 29 - Connecting the control BUS cable (control unit)
◼ The mains cable is disconnected from the voltage supply.
Prerequisite:
1. Connect the exposed wires of the control BUS cable to the terminals
(page 204/ marked green) of the IO interface module in accordance
with the following table:
Terminal
9
10
11
12
2. Connect the control BUS cable (Figure 29/1) to the hand switch interface
⇨ The IO interface module has been connected.
HS.
Wire colour Function
Yellow Control BUS RS485 A
Green Control BUS RS485 B
Pink Logik V+ voltage supply
9 - 15 VDC, max. 40 mA
Brown Logic GND voltage supply
Control RK MultiControl II duo/RK MultiControl II quadro
