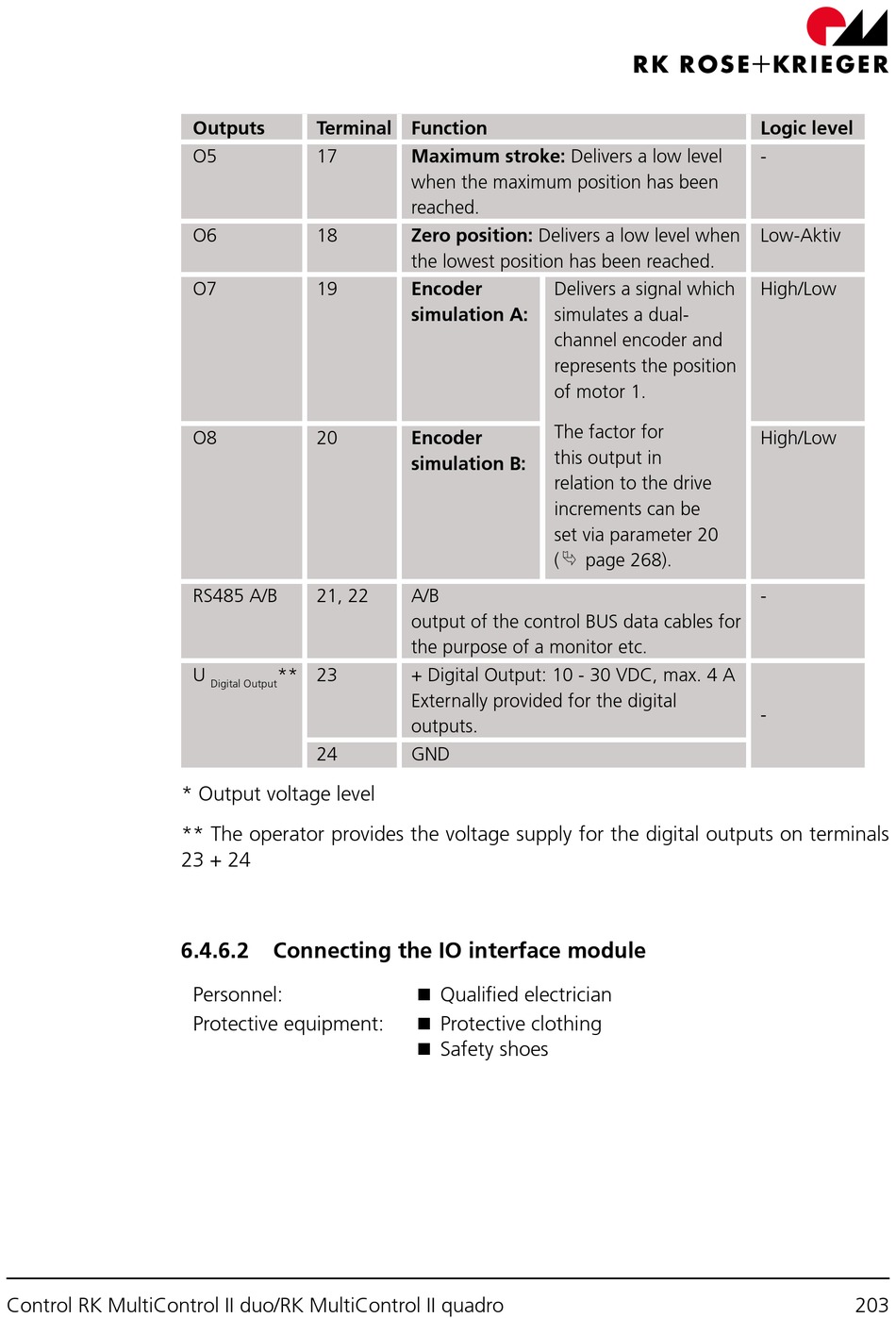

Control RK MultiControl II duo/RK MultiControl II quadro
Outputs
Terminal Function
O5
17
O6
18
O7
19
O8
20
RS485 A/B
21, 22
U
** 23
Digital Output
24
* Output voltage level
** The operator provides the voltage supply for the digital outputs on terminals
23 + 24
6.4.6.2
Connecting the IO interface module
Personnel:
Protective equipment:
Maximum stroke: Delivers a low level
when the maximum position has been
reached.
Zero position: Delivers a low level when
the lowest position has been reached.
Encoder
Delivers a signal which
simulation A:
simulates a dual-
channel encoder and
represents the position
of motor 1.
The factor for
Encoder
this output in
simulation B:
relation to the drive
increments can be
set via parameter 20
⮱
(
A/B
output of the control BUS data cables for
the purpose of a monitor etc.
+ Digital Output: 10 - 30 VDC, max. 4 A
Externally provided for the digital
outputs.
GND
◼ Qualified electrician
◼ Protective clothing
◼ Safety shoes
page 268).
Logic level
-
Low-Aktiv
High/Low
High/Low
-
-
203
