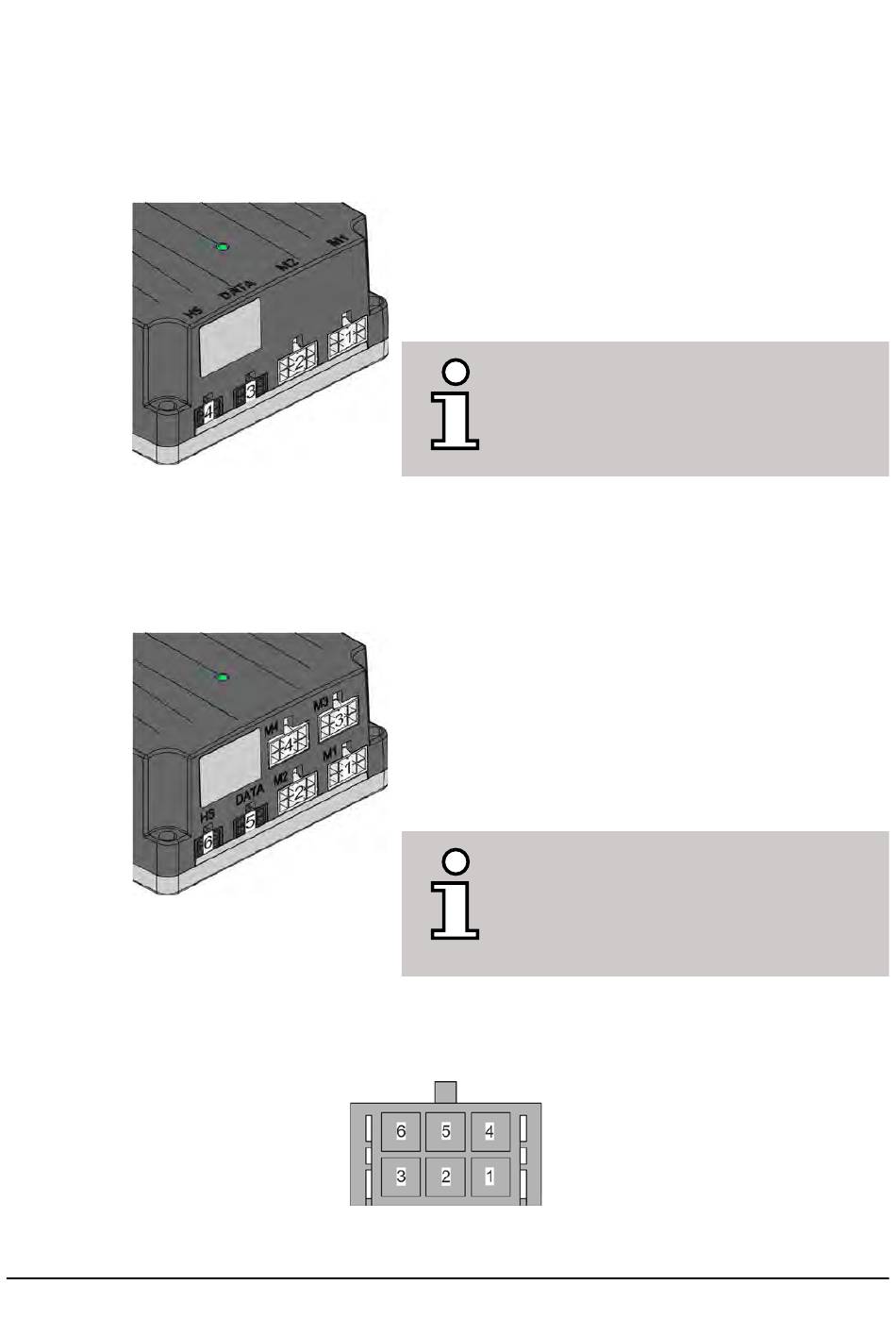

4.5 Connections
4.5.1
Figure 11 - RK MultiControl II
4.5.2
Figure 12 - RK MultiControl II
4.5.3
182
Connection configuration - RK MultiControl II duo
duo (front)
Connection configuration - RK MultiControl II quadro
quadro (front)
Hand switch interface - RK MultiControl II duo/quadro
Figure 13 - Hand switch contacts
1 Drive slot M1
2 Drive slot M2
3 DATA interface
4 Hand switch interface HS
Drive slot M1 must be occupied at all times.
Sensors (e.g. safety edge) or a
synchronisation bus can be connected to the
DATA interface.
1 Drive slot M1
2 Drive slot M2
3 Drive slot M3
4 Drive slot M4
5 DATA interface
6 Hand switch interface HS
Drive slot M1 must be occupied at all times.
Sensors (e.g. safety edge) or a
synchronisation bus can be connected to the
DATA interface.
Control RK MultiControl II duo/RK MultiControl II quadro
