6.4.2
Personnel:
Protective equipment:
Prerequisite:
1.

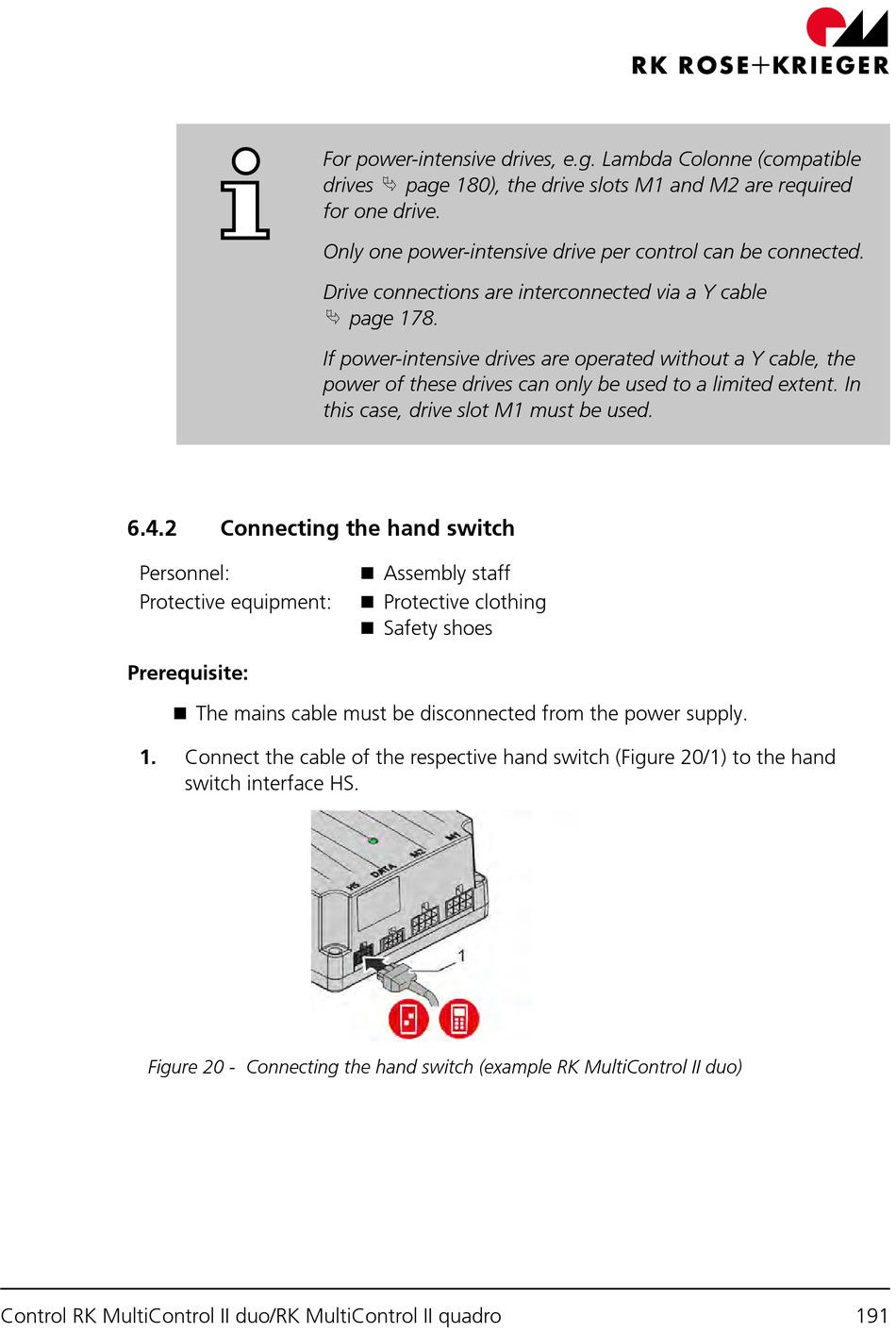

Figure 20 - Connecting the hand switch (example RK MultiControl II duo)
Control RK MultiControl II duo/RK MultiControl II quadro
For power-intensive drives, e.g. Lambda Colonne (compatible
drives
for one drive.
Only one power-intensive drive per control can be connected.
Drive connections are interconnected via a Y cable
⮱
If power-intensive drives are operated without a Y cable, the
power of these drives can only be used to a limited extent. In
this case, drive slot M1 must be used.

Connecting the hand switch

◼ The mains cable must be disconnected from the power supply.
Connect the cable of the respective hand switch (Figure 20/1) to the hand
switch interface HS.
⮱
page 180), the drive slots M1 and M2 are required
page 178.
◼ Assembly staff
◼ Protective clothing
◼ Safety shoes
