8.5.6
260

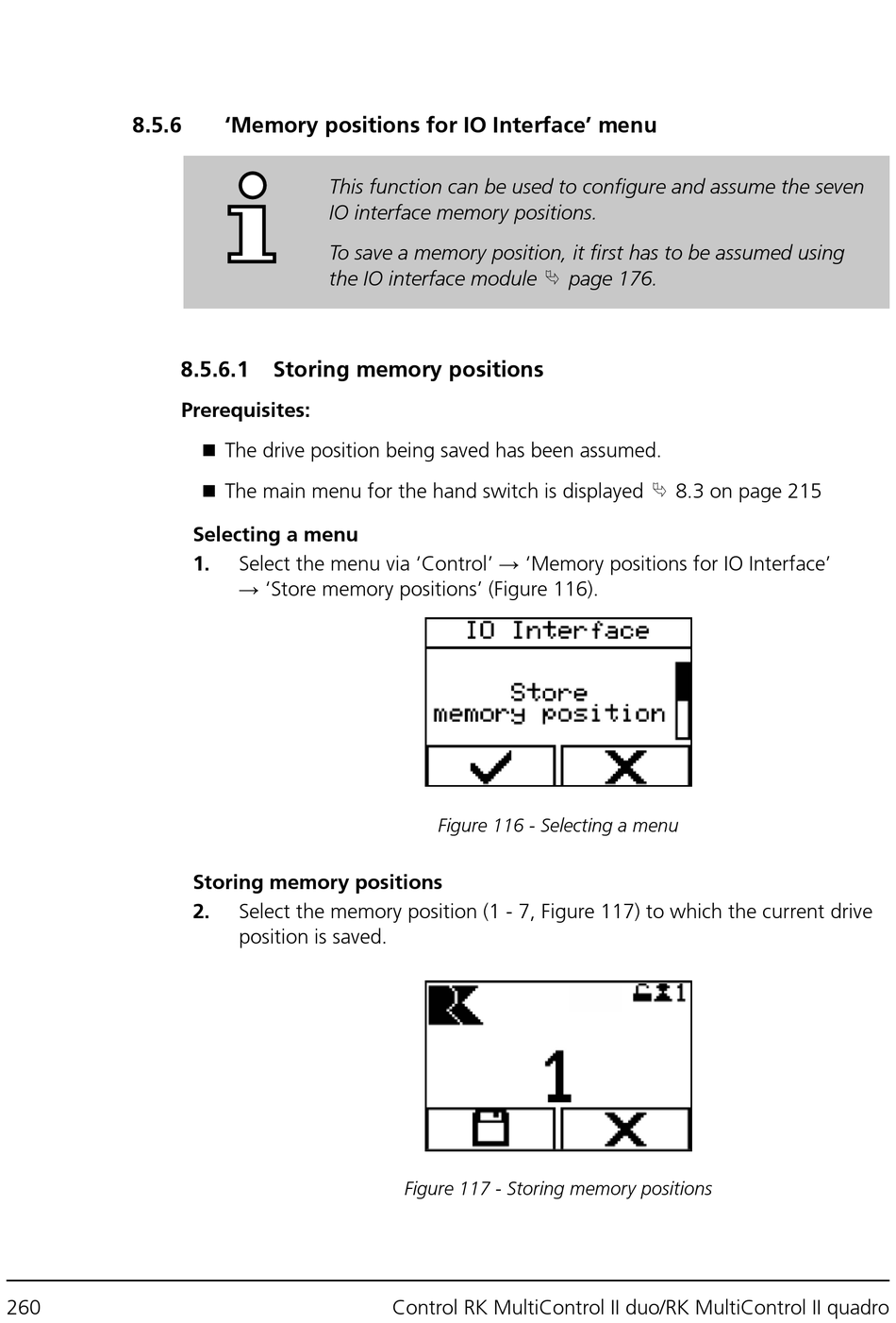

'Memory positions for IO Interface' menu
This function can be used to configure and assume the seven
IO interface memory positions.
To save a memory position, it first has to be assumed using
the IO interface module
8.5.6.1 Storing memory positions
◼ The drive position being saved has been assumed.
Prerequisites:
◼ The main menu for the hand switch is displayed
Selecting a menu
Select the menu via 'Control' → 'Memory positions for IO Interface'
1.
→ 'Store memory positions' (Figure 116).
Storing memory positions
2. Select the memory position (1 - 7, Figure 117) to which the current drive
position is saved.
⮱
Figure 116 - Selecting a menu
Figure 117 - Storing memory positions
Control RK MultiControl II duo/RK MultiControl II quadro
page 176.
⮱
8.3 on page 215
