Connecting the accessories
6.4.1
188
Before the control unit is connected to the voltage supply with
the mains cable, connect the drives, the hand switch or other
accessories to the control unit.
Connecting the drives
6.4.1.1
Connecting the drives to the RK MultiControl II duo
Two drives can be connected for each control.
Drives of the same version must be used for all controls.
Personnel:
Protective equipment:
◼ The mains cable must be disconnected from the power supply.
Prerequisite:

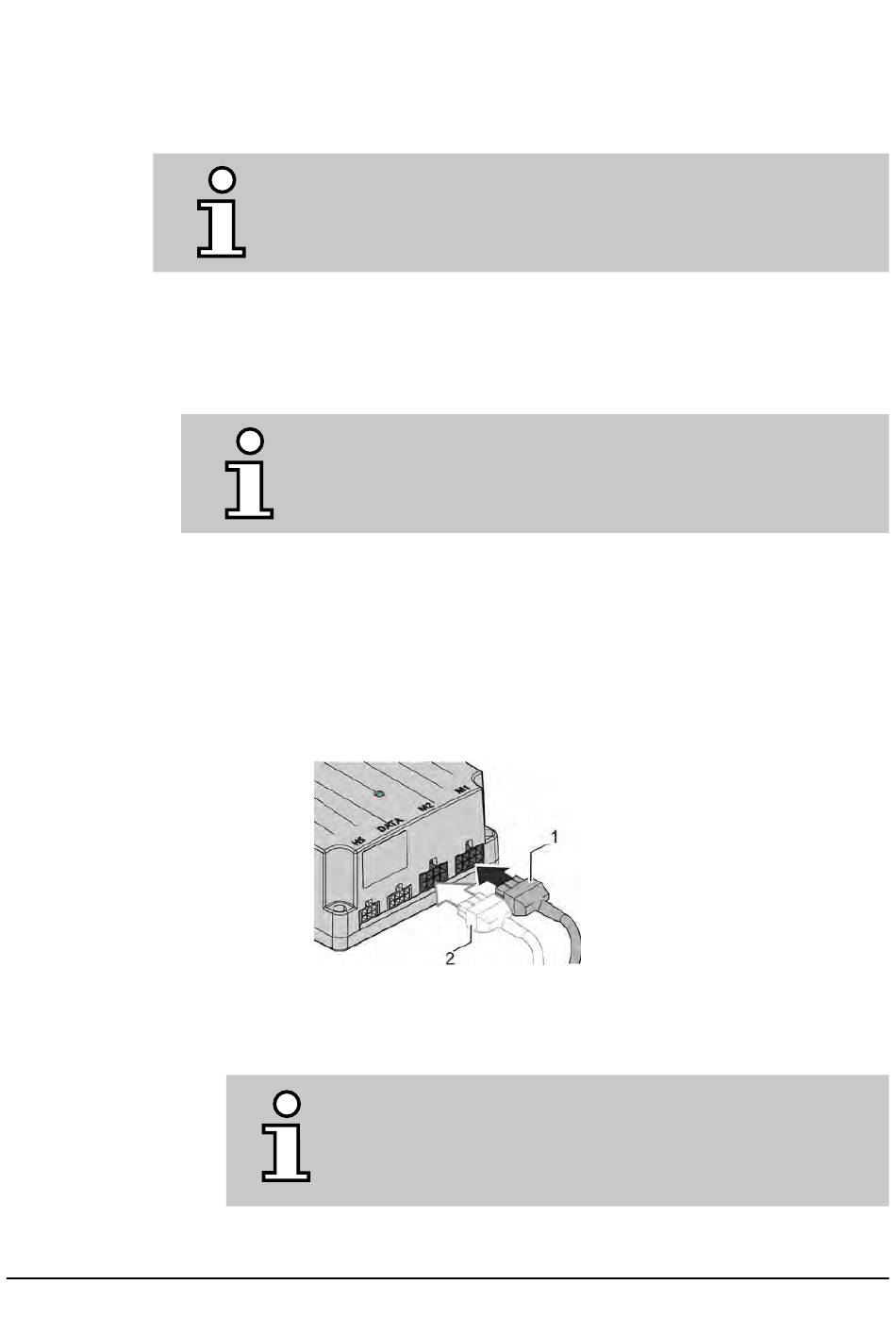

Figure 18 - Connecting the drives
1.
Connect the cable of the first drive (Figure 18/1) to drive slot M1.
◼ Assembly staff
◼ Protective clothing
◼ Safety shoes
If only one drive is connected to the control unit, the cable
must always be connected to drive slot M1. Otherwise, the
drive will not be detected by the control unit.
Control RK MultiControl II duo/RK MultiControl II quadro
