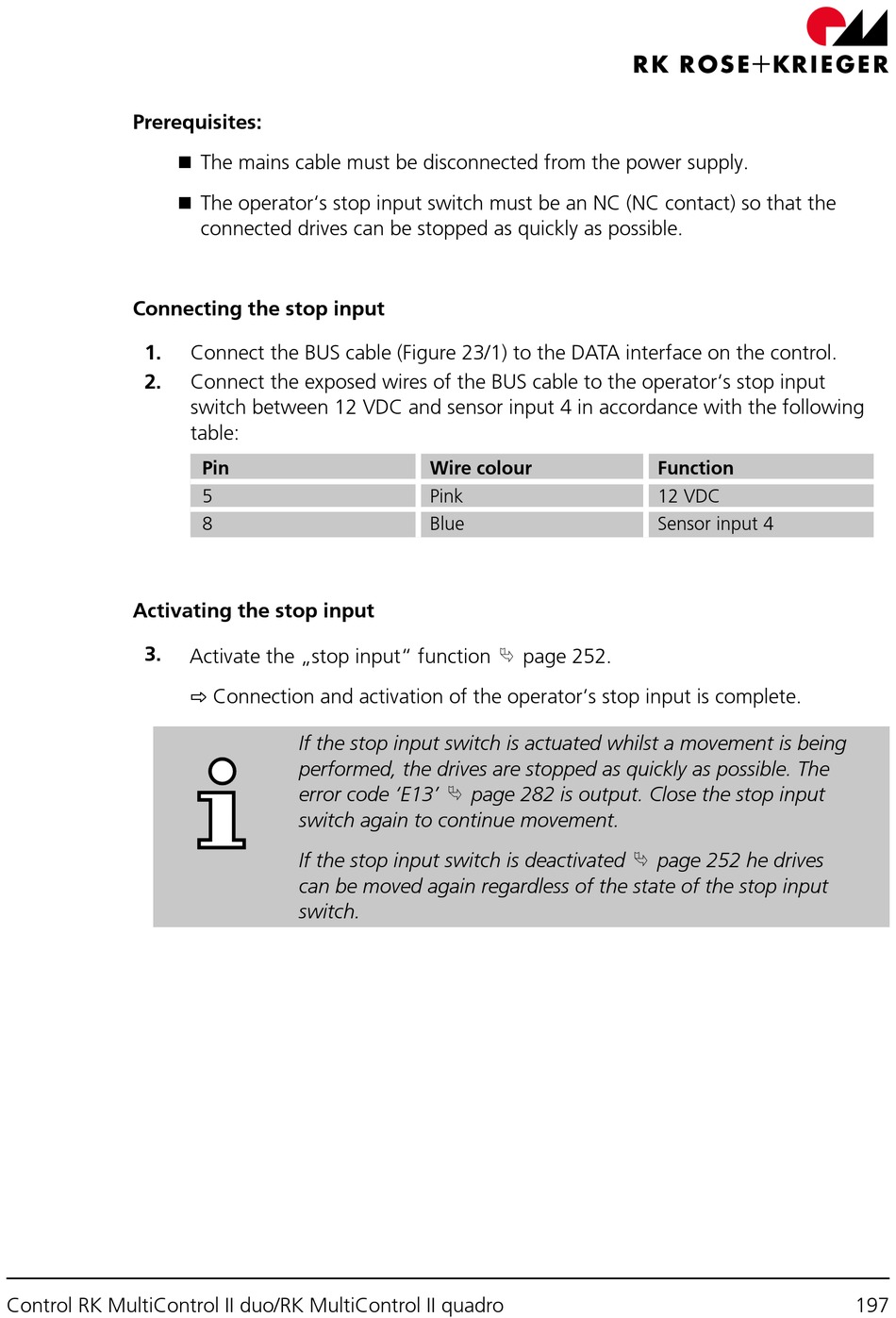

Prerequisites:
Connecting the stop input
1.
2.
Activating the stop input
3.
Control RK MultiControl II duo/RK MultiControl II quadro
◼ The mains cable must be disconnected from the power supply.
◼ The operator's stop input switch must be an NC (NC contact) so that the
connected drives can be stopped as quickly as possible.
Connect the BUS cable (Figure 23/1) to the DATA interface on the control.
Connect the exposed wires of the BUS cable to the operator's stop input
switch between 12 VDC and sensor input 4 in accordance with the following
table:
Pin
5
8
⇨ Connection and activation of the operator's stop input is complete.
Activate the „stop input" function
If the stop input switch is actuated whilst a movement is being
performed, the drives are stopped as quickly as possible. The
error code 'E13'
switch again to continue movement.
If the stop input switch is deactivated
can be moved again regardless of the state of the stop input
switch.
Wire colour
Pink
Blue
⮱
page 252.
⮱
page 282 is output. Close the stop input
Function
12 VDC
Sensor input 4
⮱
page 252 he drives
197
