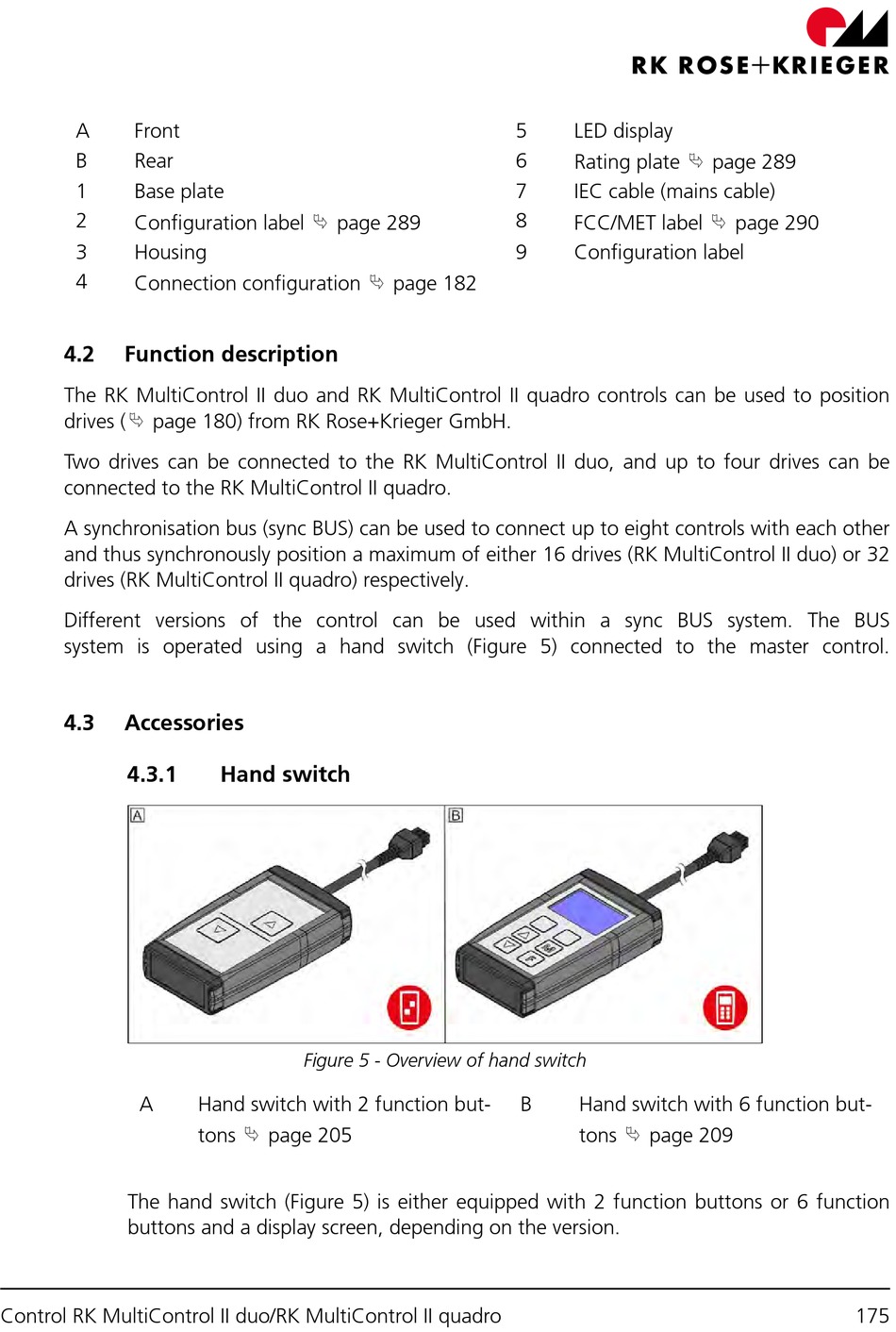

RK Rose+Krieger Gesamt RK MultiControl II duo Montageanleitung Seite 175

A Front
B Rear
1 Base plate
2
Configuration label
3 Housing
4
Connection configuration
4.2 Function description
The RK MultiControl II duo and RK MultiControl II quadro controls can be used to position
⮱
drives ( page 180) from RK Rose+Krieger GmbH.
Two drives can be connected to the RK MultiControl II duo, and up to four drives can be
connected to the RK MultiControl II quadro.
A synchronisation bus (sync BUS) can be used to connect up to eight controls with each other
and thus synchronously position a maximum of either 16 drives (RK MultiControl II duo) or 32
drives (RK MultiControl II quadro) respectively.
Different versions of the control can be used within a sync BUS system. The BUS
system is operated using a hand switch (Figure 5) connected to the master control.
4.3 Accessories
4.3.1
A
The hand switch (Figure 5) is either equipped with 2 function buttons or 6 function
buttons and a display screen, depending on the version.
Control RK MultiControl II duo/RK MultiControl II quadro
⮱
page 289
⮱
Hand switch
Figure 5 - Overview of hand switch
Hand switch with 2 function but-
⮱
tons page 205
5
6
7
8
9
page 182
B
LED display
⮱
Rating plate page 289
IEC cable (mains cable)
⮱
FCC/MET label page 290
Configuration label
Hand switch with 6 function but-
⮱
tons page 209
