1.
Connecting >2 control units
2.
Connecting the drives
3.
Setting the synchronisation bus
4.
Control RK MultiControl II duo/RK MultiControl II quadro
Connect the BUS cable (Figure 24/1) to the DATA interfaces on the control
units (Figure 24/A + B).

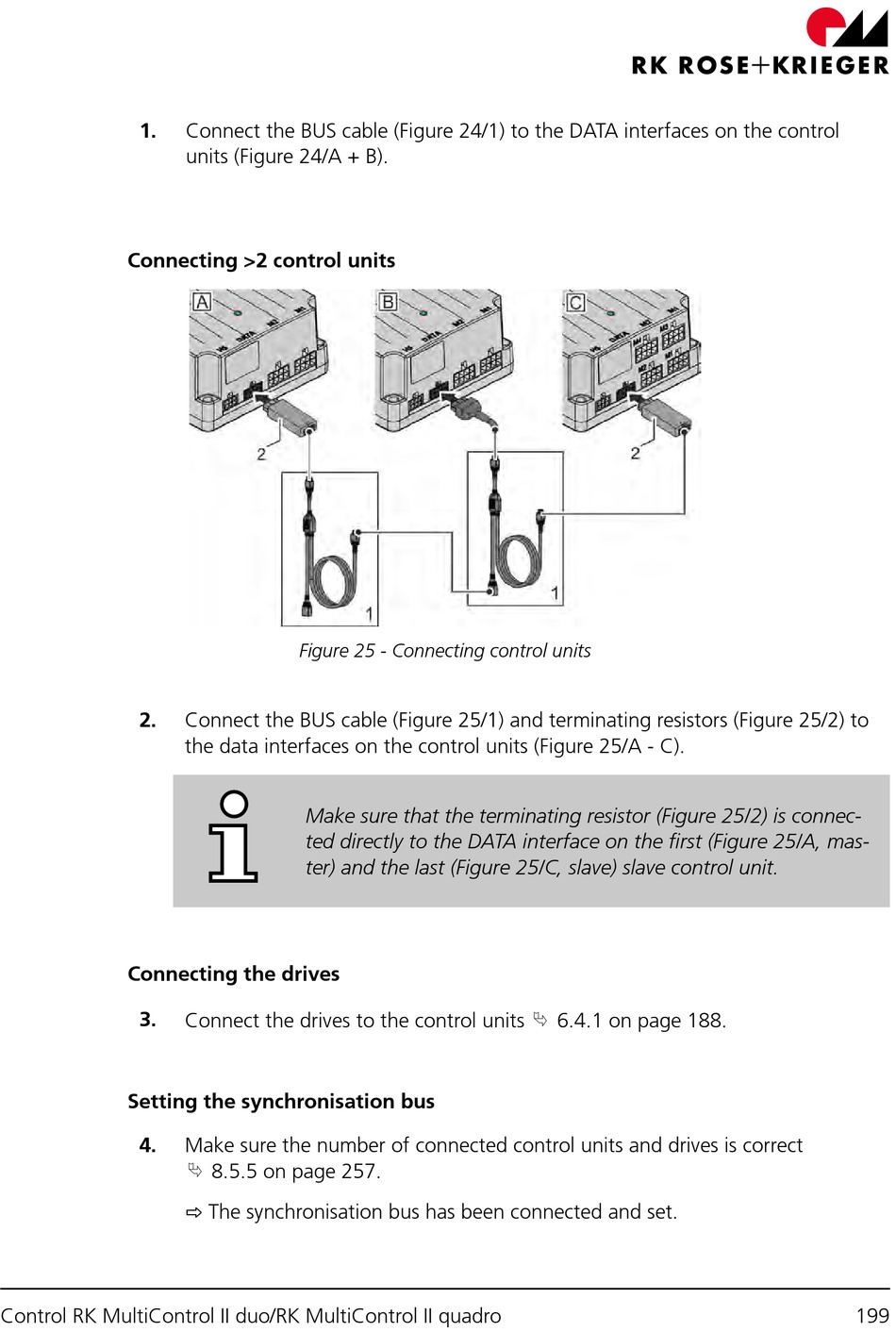

Figure 25 - Connecting control units
Connect the BUS cable (Figure 25/1) and terminating resistors (Figure 25/2) to
the data interfaces on the control units (Figure 25/A - C).
Make sure that the terminating resistor (Figure 25/2) is connec-
ted directly to the DATA interface on the first (Figure 25/A, mas-
ter) and the last (Figure 25/C, slave) slave control unit.
Connect the drives to the control units
Make sure the number of connected control units and drives is correct
⮱
⇨ The synchronisation bus has been connected and set.
8.5.5 on page 257.
⮱
6.4.1 on page 188.
