6.3
Installing the RK MultiControl II
Personnel:
Protective equipment:
◼ The surface must be ready for fastening the control.
Prerequisite:
1.
Drill holes (4 x diam. 5.5 mm) in the surface as per the spacing shown in Figure 17.
2.
Place the control on the surface and position it.
3.
Insert the 4 screws into the drilled holes (Figure 17/1) and tighten them alternately in
⇨ Installation is complete.
diagonal sequence.
Control RK MultiControl II duo/RK MultiControl II quadro
◼ Assembly staff
◼ Protective clothing
◼ Protective gloves
◼ Safety shoes

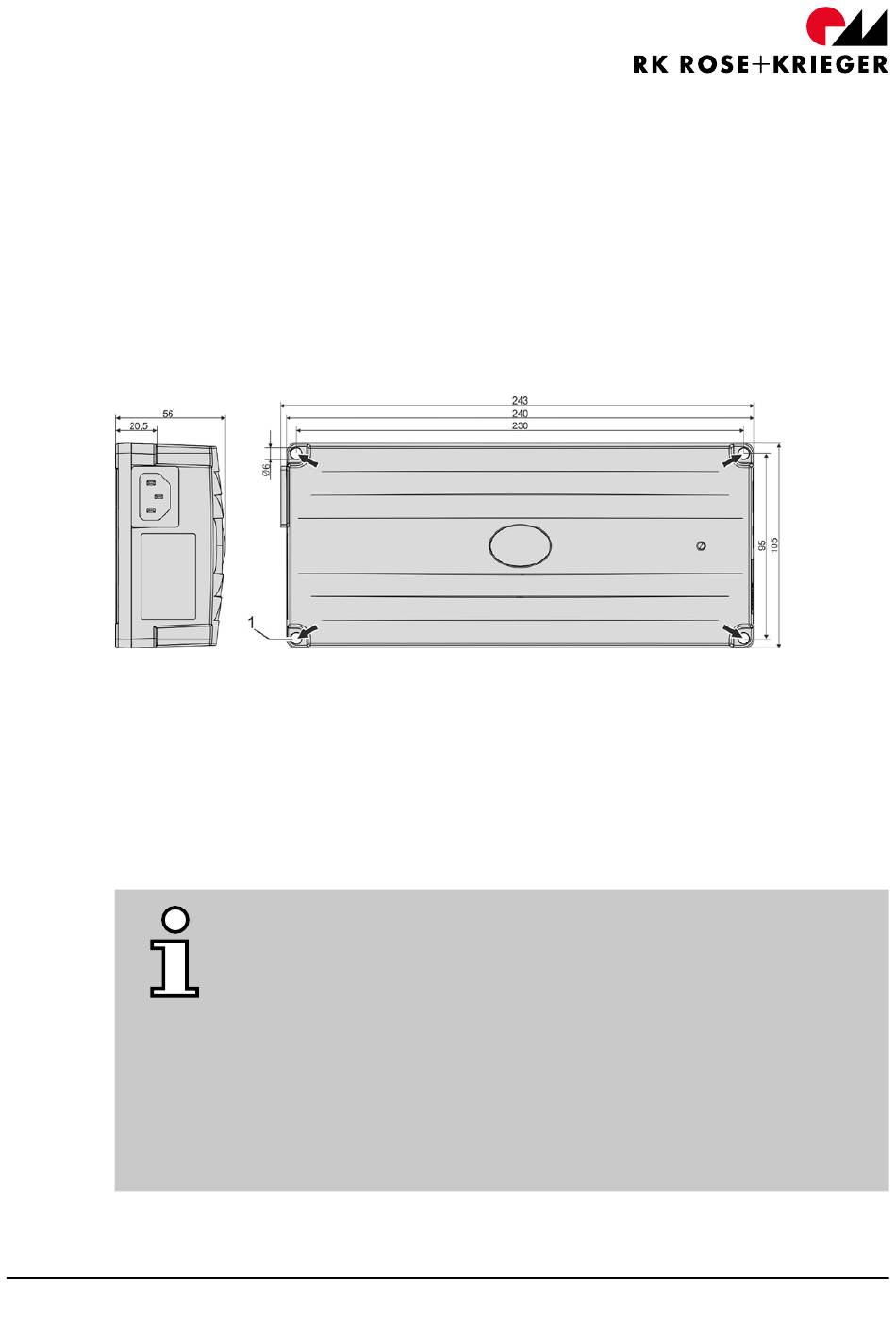

Figure 17 - Connection points
The screws are not included.
Information on selecting screws:
– Screws with cylindrical contact surface
– Strength 8.8
– Screw head diameter: 8 - 10.0 mm
– Screw diameter: 5.5 mm
– Through depth: 20.5 mm
– Tightening torque: 1.5 Nm
187
