6.4.5
Synchronisation bus
Connecting the synchronisation bus
Personnel:
Protective equipment:
Prerequisite:
Connecting 2 control units
198
Setting up the synchronisation bus
The synchronisation bus is used for synchronous movement of
the drives connected to the various controls (RK MultiControl II
duo and quadro).
Up to 8 controls can be connected to each other via the DATA
interfaces using a BUS cable. A mixture of different controls can
be used.
If there are more than two connected controls, the BUS cable
must be equipped with a terminating resistor (120 Ohms) at
both the start and end.
Only controls with the same software and hardware versions
can be connected to each other
◼ The mains cable is disconnected from the voltage supply.

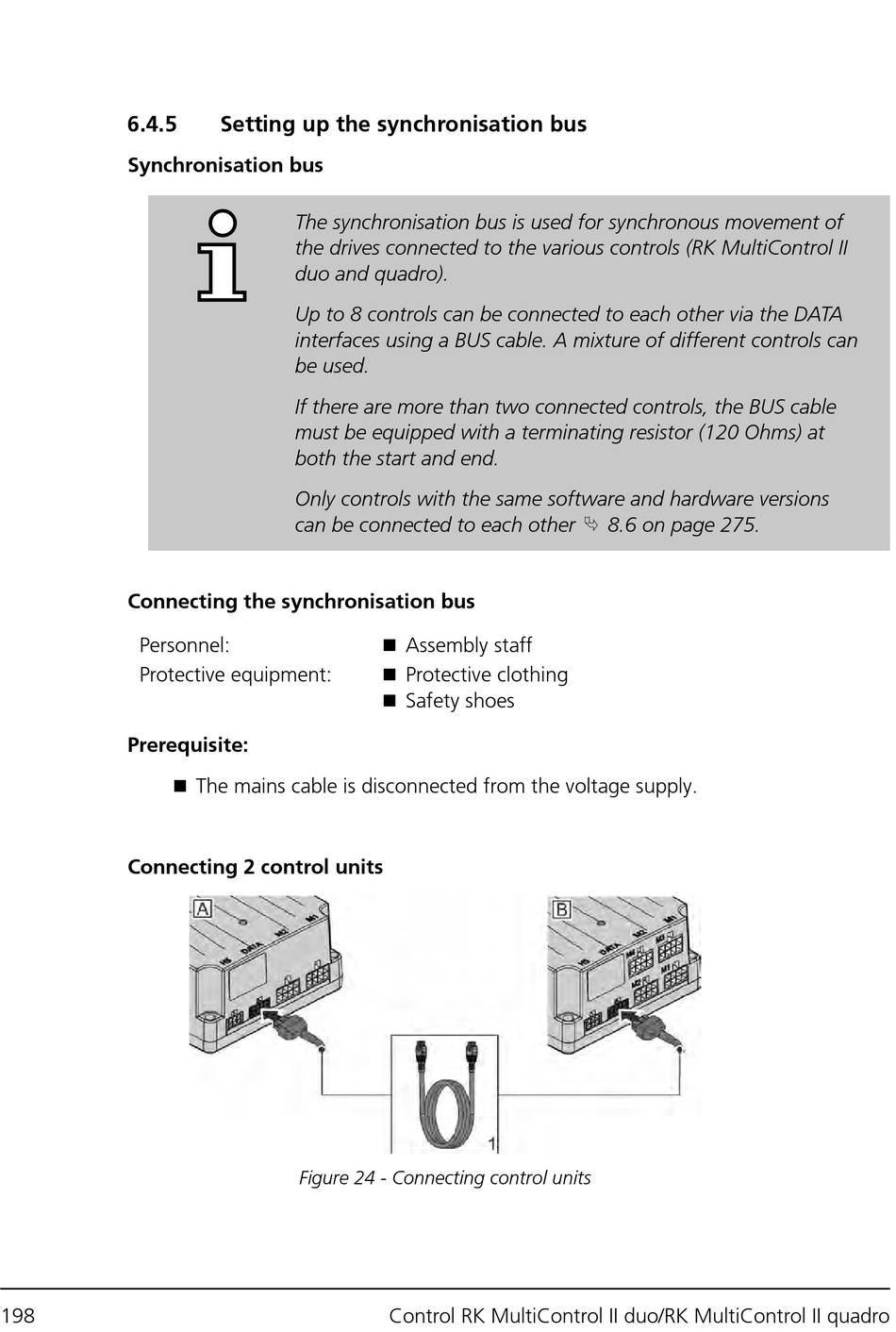

Figure 24 - Connecting control units
◼ Assembly staff
◼ Protective clothing
◼ Safety shoes
Control RK MultiControl II duo/RK MultiControl II quadro
⮱
8.6 on page 275.
