Control RK MultiControl II duo/RK MultiControl II quadro

Further information:

⮱
„6.4.6.1 Connection configuration - IO interface module" on page 200
⮱
„6.4.6.2 Connecting the IO interface module" on page 203

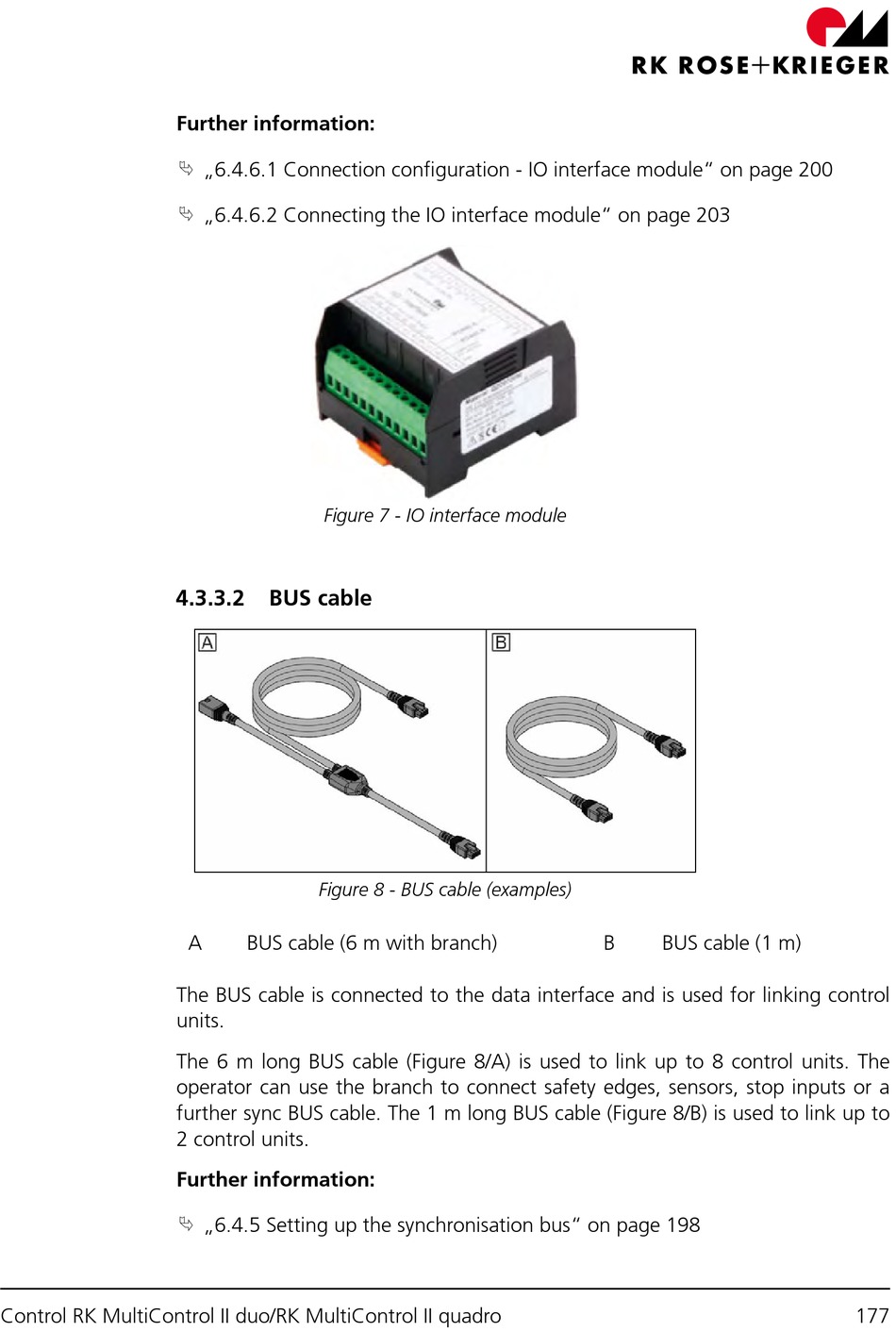

Figure 7 - IO interface module
4.3.3.2

BUS cable

Figure 8 - BUS cable (examples)
A BUS cable (6 m with branch)
The BUS cable is connected to the data interface and is used for linking control
units.
The 6 m long BUS cable (Figure 8/A) is used to link up to 8 control units. The
operator can use the branch to connect safety edges, sensors, stop inputs or a
further sync BUS cable. The 1 m long BUS cable (Figure 8/B) is used to link up to
2 control units.
Further information:
⮱
„6.4.5 Setting up the synchronisation bus" on page 198
B BUS cable (1 m)
