2

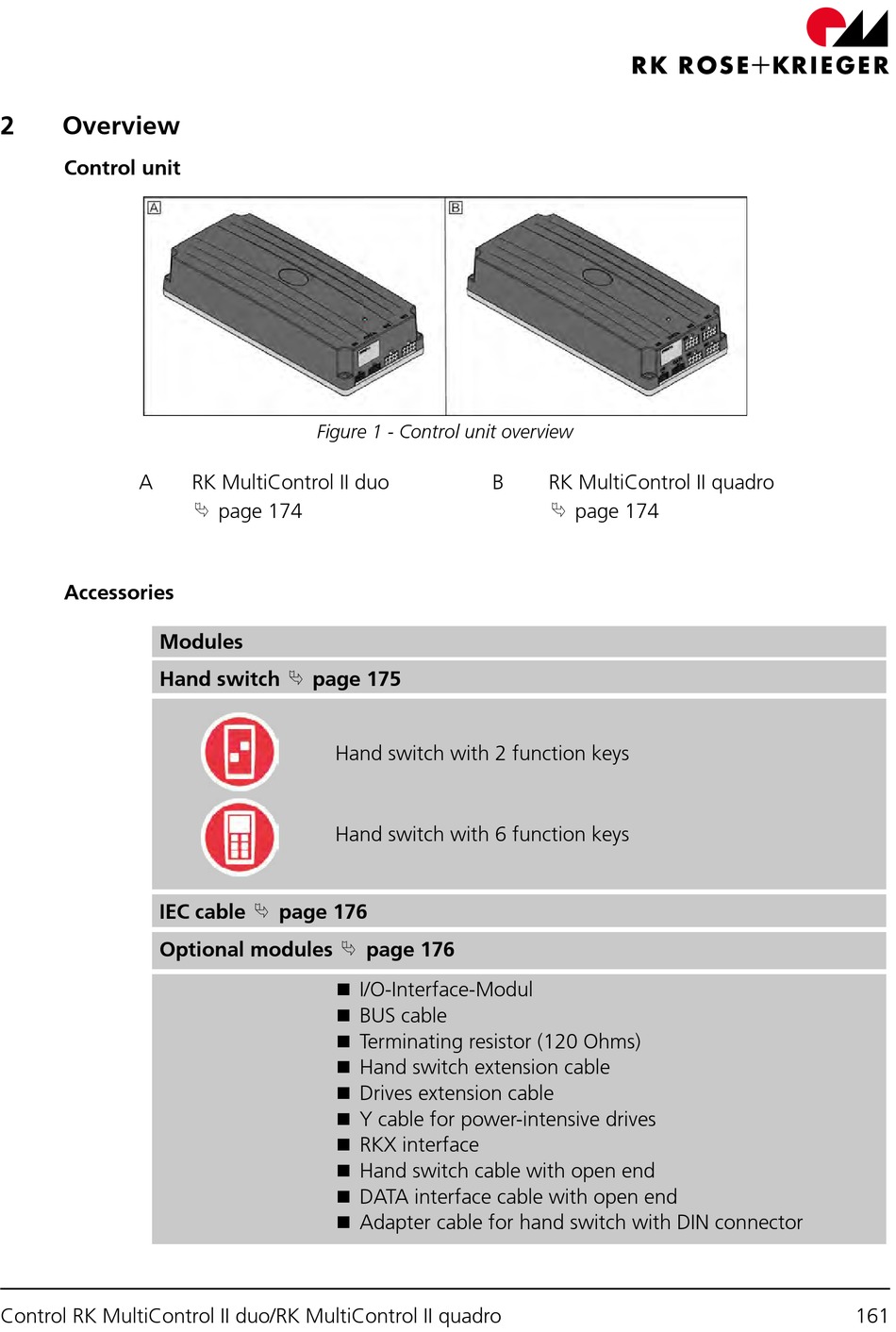

Overview
Control unit
A
Accessories
Modules
Hand switch
IEC cable
Optional modules
Control RK MultiControl II duo/RK MultiControl II quadro
Figure 1 - Control unit overview
RK MultiControl II duo
⮱
page 174
⮱
page 175
Hand switch with 2 function keys
Hand switch with 6 function keys
⮱
page 176
⮱
◼ I/O-Interface-Modul
◼ BUS cable
◼ Terminating resistor (120 Ohms)
◼ Hand switch extension cable
◼ Drives extension cable
◼ Y cable for power-intensive drives
◼ RKX interface
◼ Hand switch cable with open end
◼ DATA interface cable with open end
◼ Adapter cable for hand switch with DIN connector
B
page 176
RK MultiControl II quadro
⮱
page 174
161
