Control RK MultiControl II duo/RK MultiControl II quadro

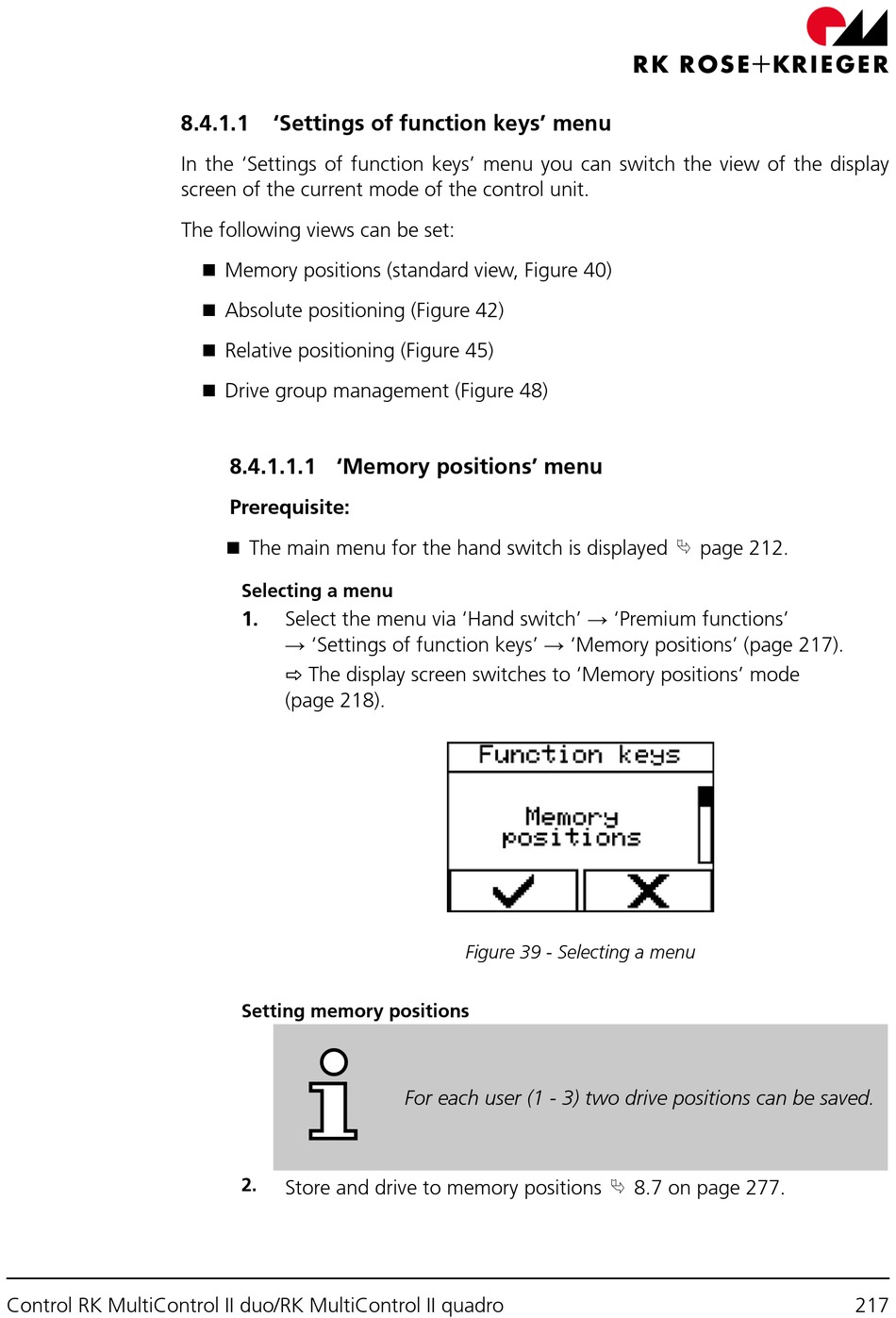

8.4.1.1 'Settings of function keys' menu
In the 'Settings of function keys' menu you can switch the view of the display
screen of the current mode of the control unit.
◼ Memory positions (standard view, Figure 40)
The following views can be set:
◼ Absolute positioning (Figure 42)
◼ Relative positioning (Figure 45)
◼ Drive group management (Figure 48)
8.4.1.1.1 'Memory positions' menu
◼ The main menu for the hand switch is displayed
Prerequisite:
Selecting a menu
Select the menu via 'Hand switch' → 'Premium functions'
1.
⇨ The display screen switches to 'Memory positions' mode
→ 'Settings of function keys' → 'Memory positions' (page 217).
(page 218).
Setting memory positions
2.
Store and drive to memory positions
Figure 39 - Selecting a menu
For each user (1 - 3) two drive positions can be saved.
⮱
page 212.
⮱
8.7 on page 277.
217
