RK Rose+Krieger Gesamt RK MultiControl II duo Montageanleitung Seite 242

242
8.5.1.2.3 Deactivating drive group management
◼ Drive group management is currently activated.
Prerequisites:
◼ The main menu for the hand switch is displayed
Select the menu via 'Control' → 'Commissioning' → 'Deactivate
1.
⇨ Drive group management has been deactivated.
drive group management' (Figure 86).

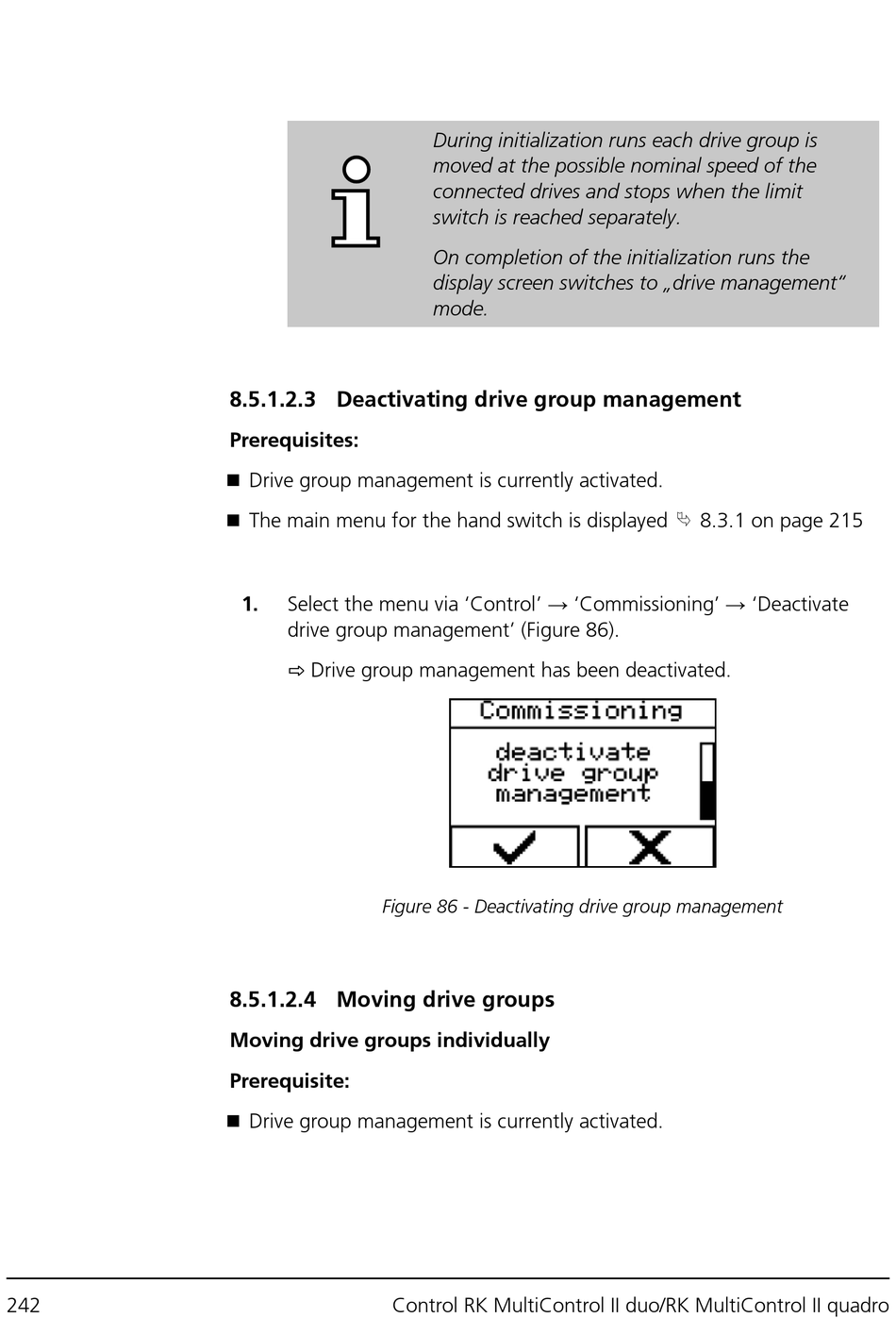

Figure 86 - Deactivating drive group management
8.5.1.2.4 Moving drive groups
Moving drive groups individually
◼ Drive group management is currently activated.
Prerequisite:
Control RK MultiControl II duo/RK MultiControl II quadro
During initialization runs each drive group is
moved at the possible nominal speed of the
connected drives and stops when the limit
switch is reached separately.
On completion of the initialization runs the
display screen switches to „drive management"
mode.
⮱
8.3.1 on page 215
